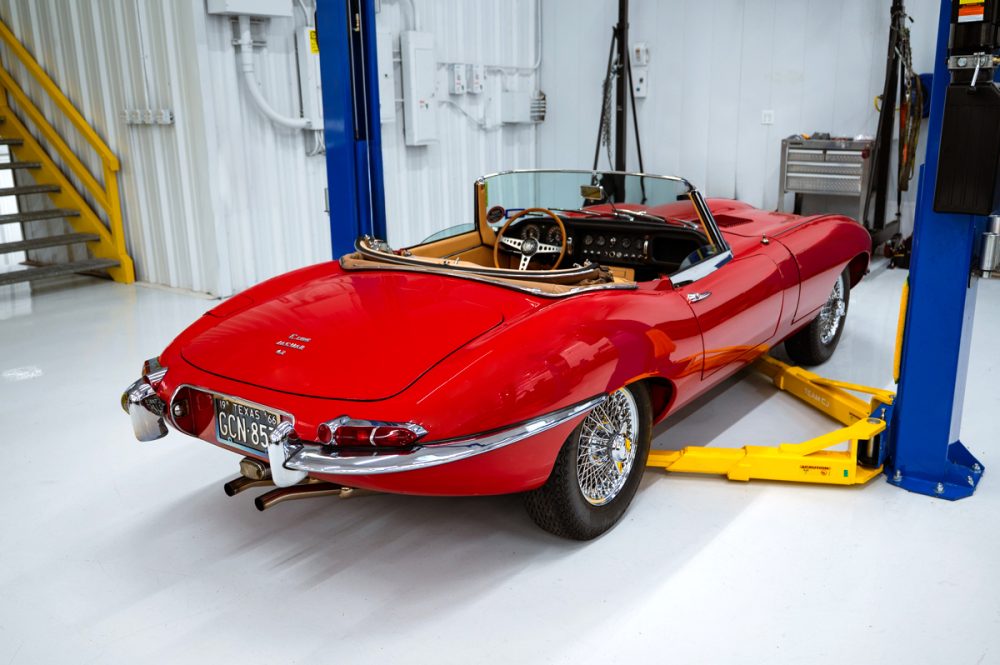

1966 Jaguar E Type CK

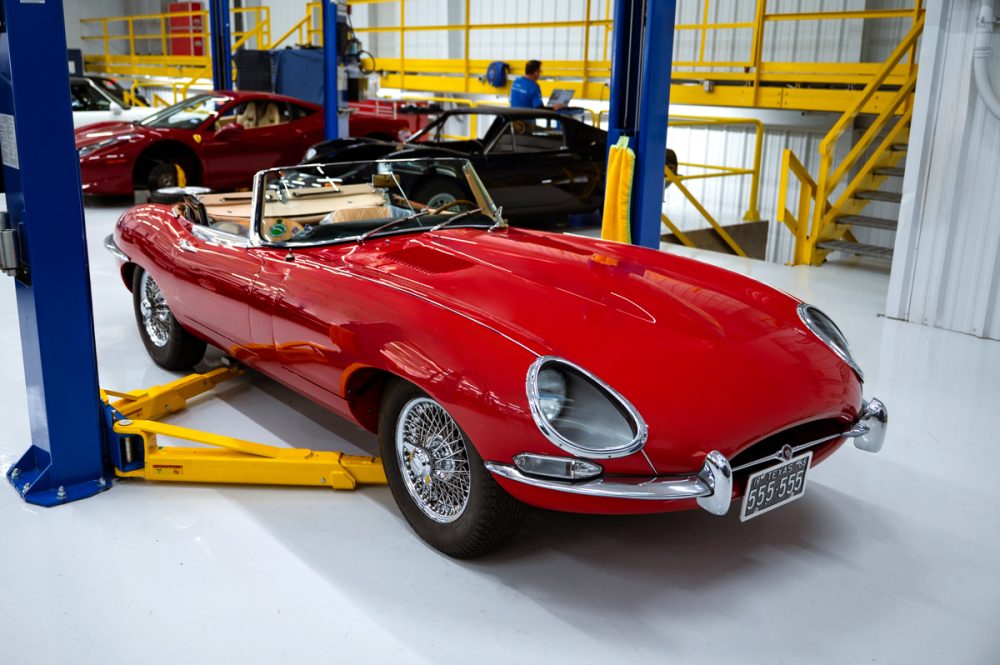

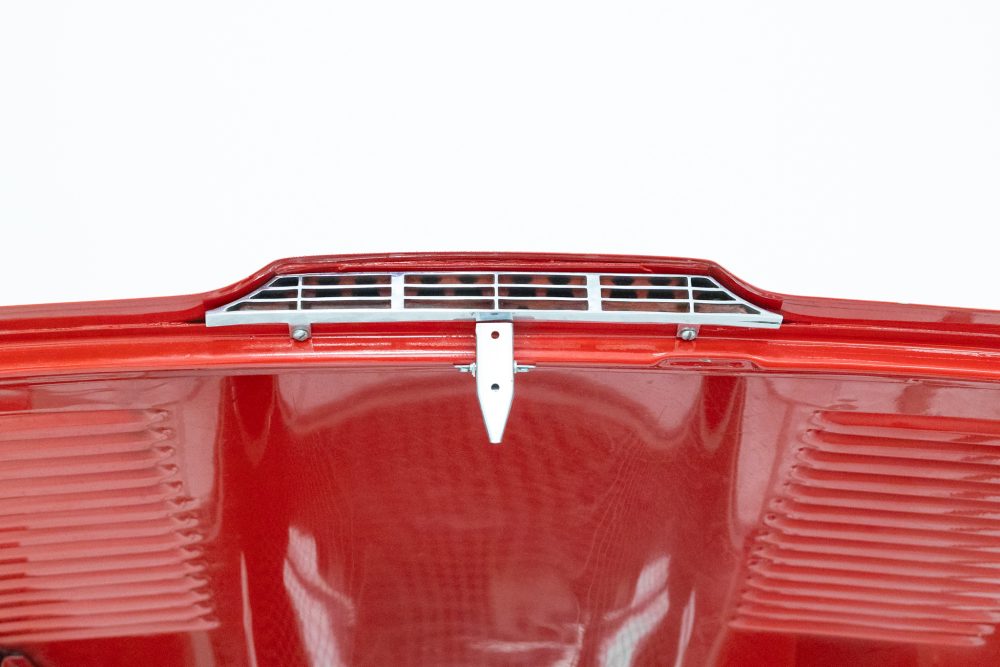

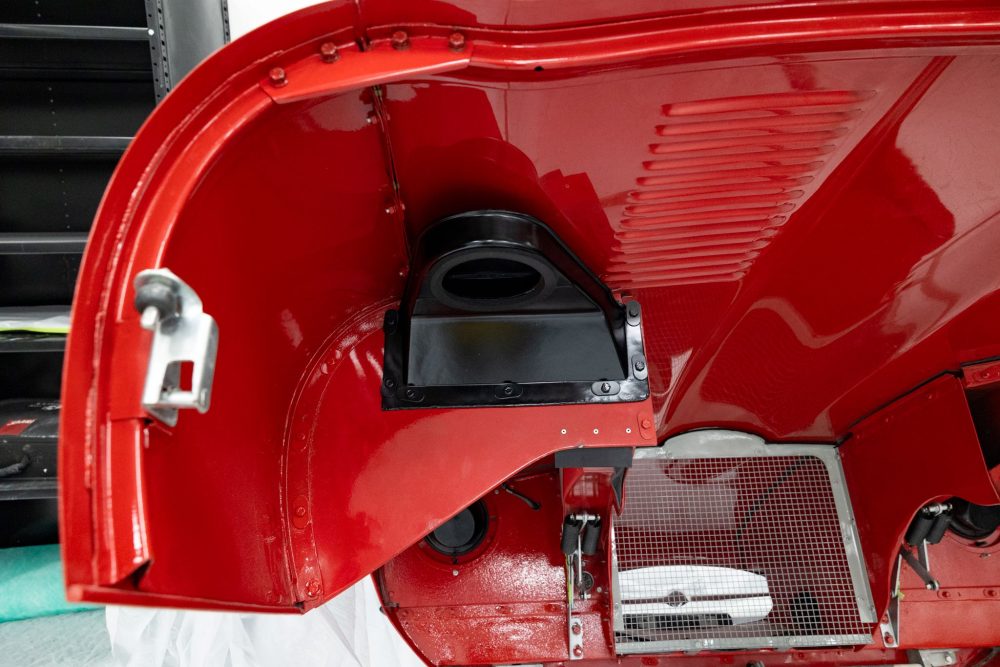

Installed Bonnet

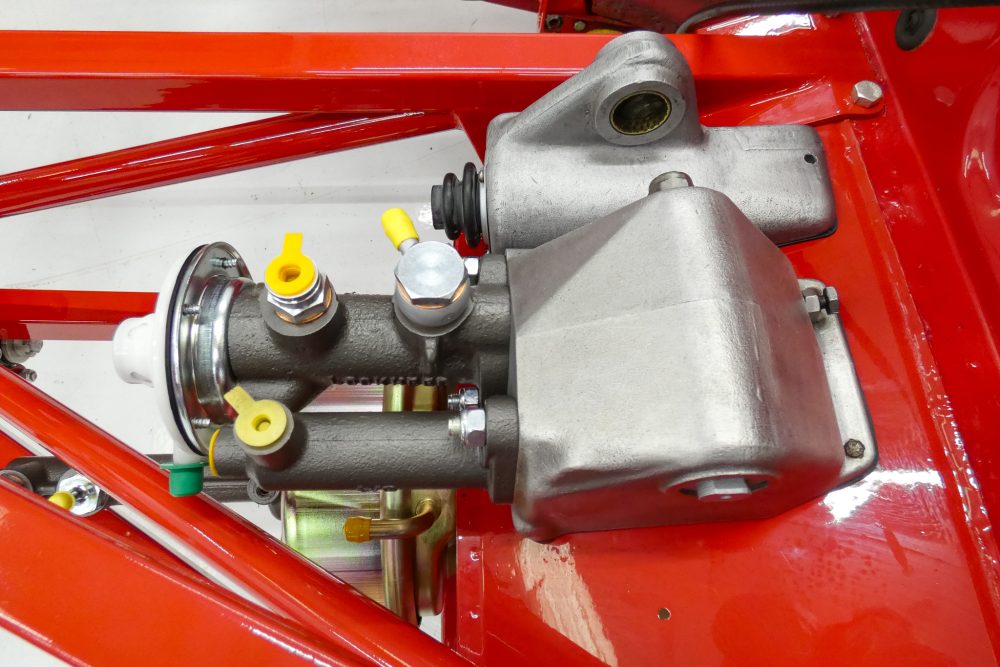

Installed Brake Lines Soft Top Progress

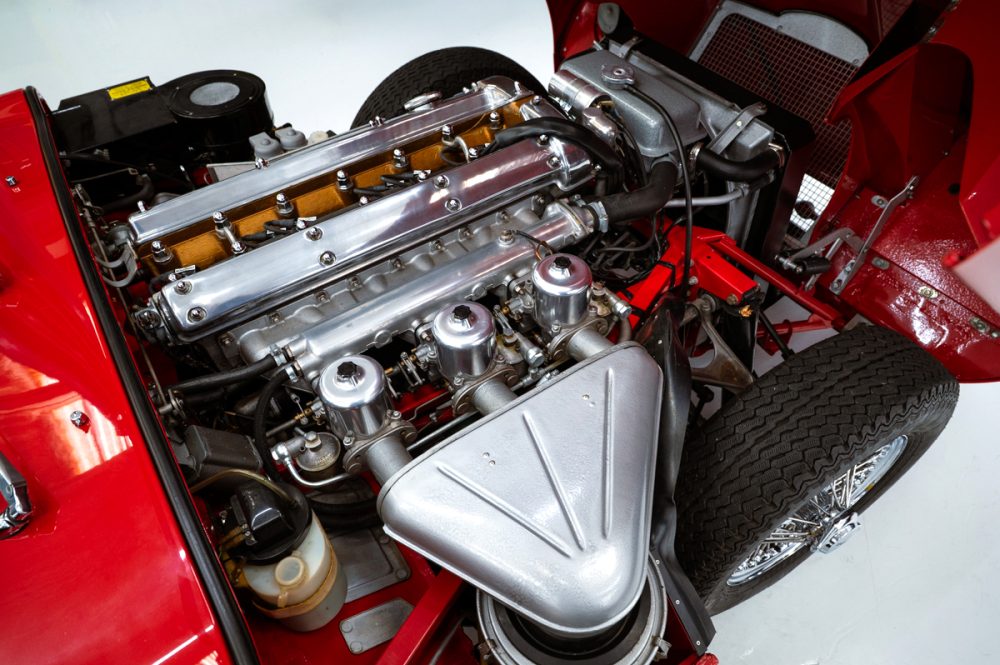

Carbs Installed

Engine Install Progress

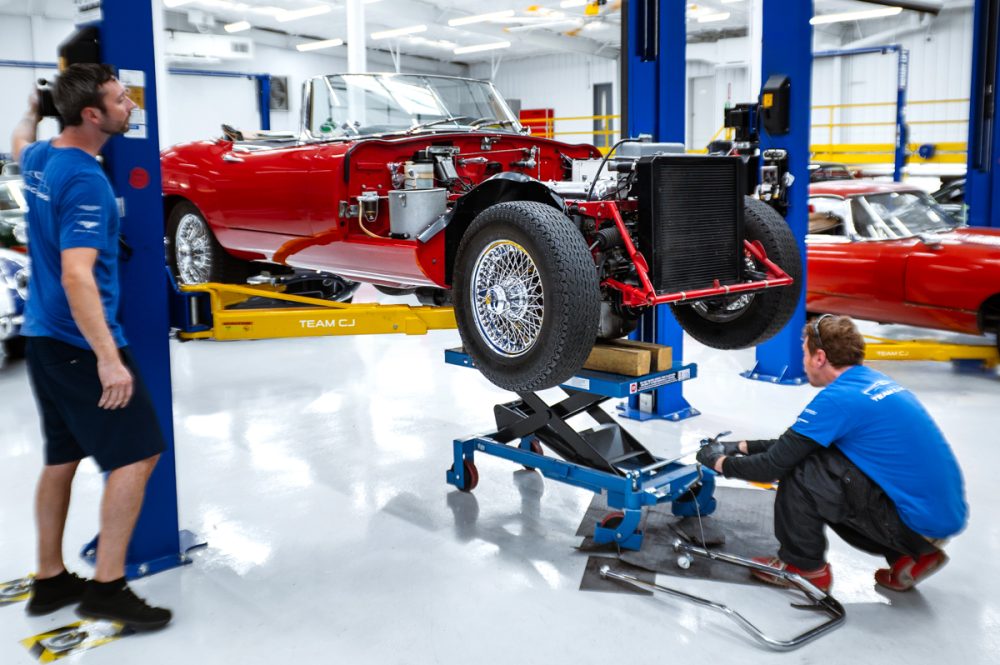

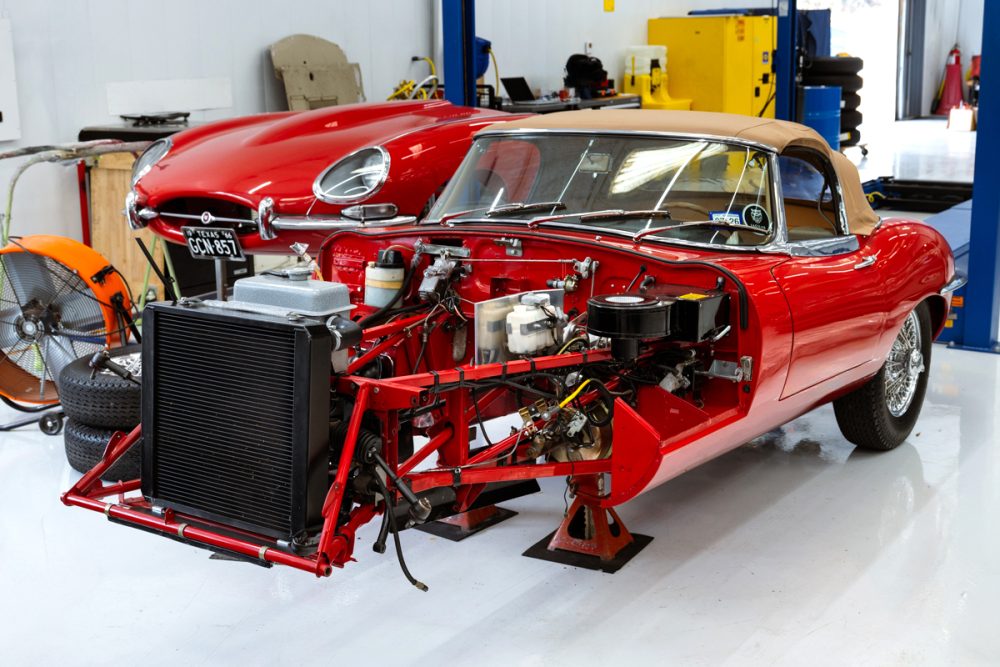

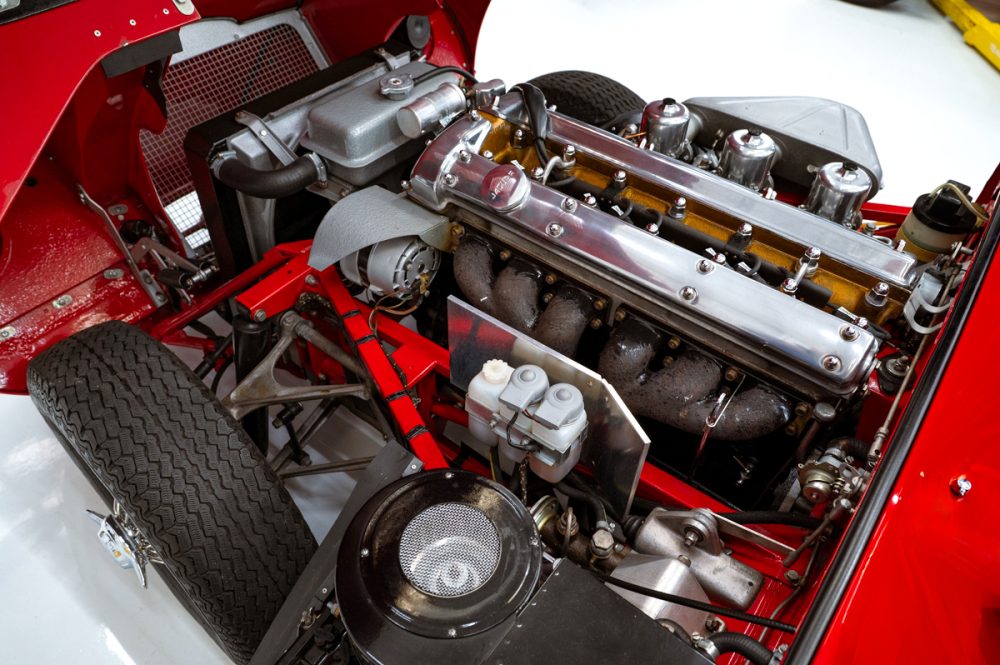

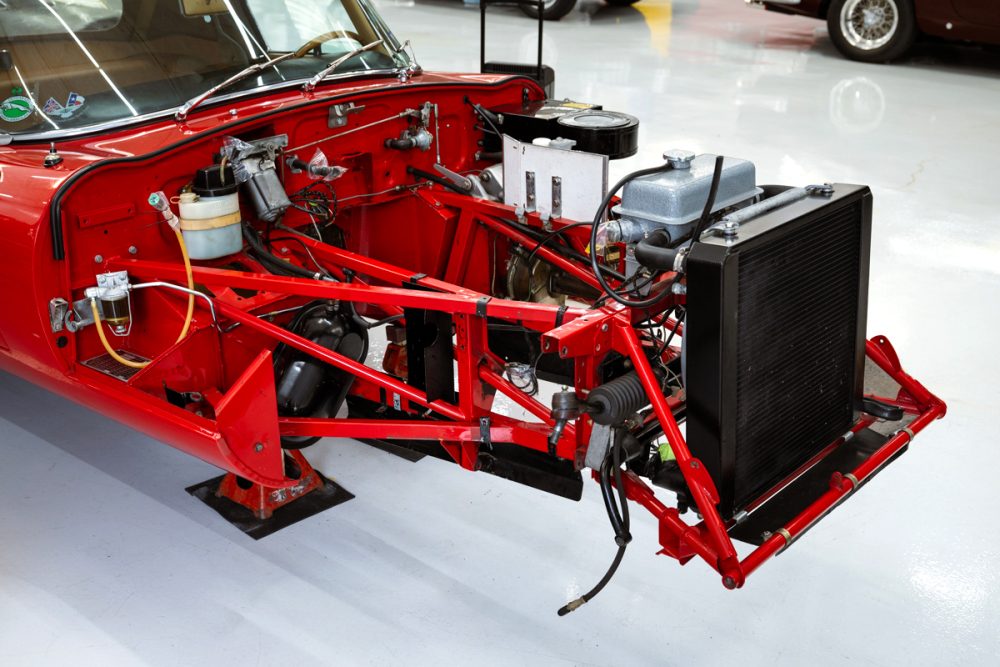

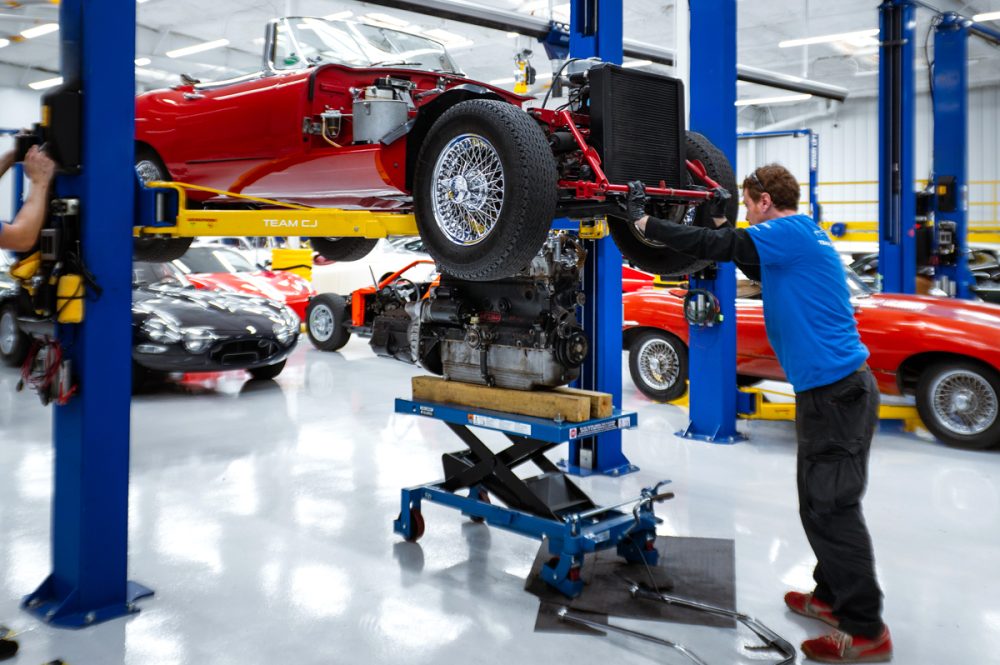

Engine Install

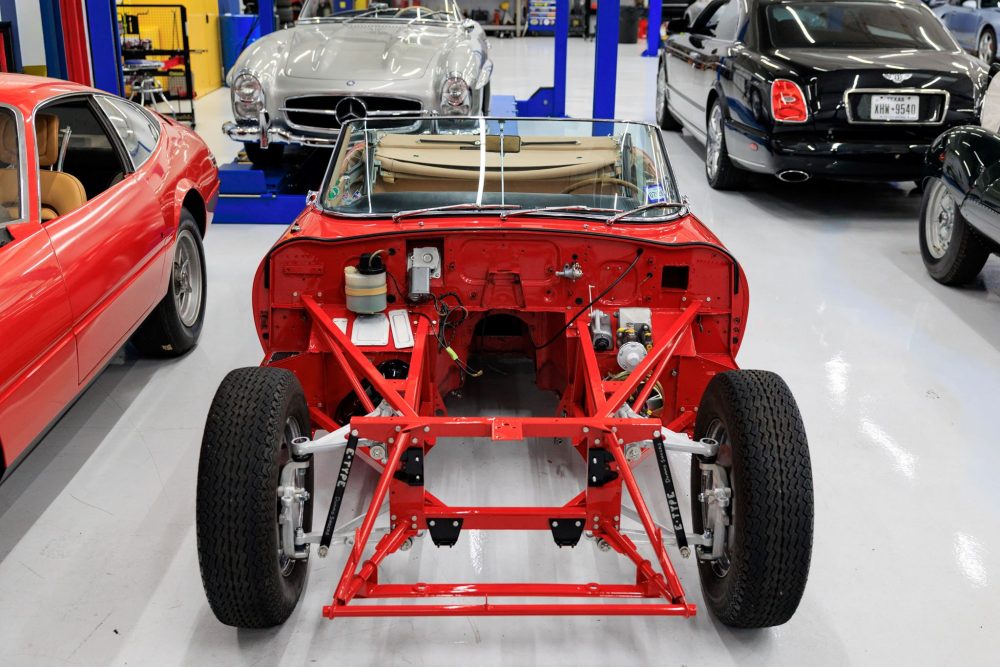

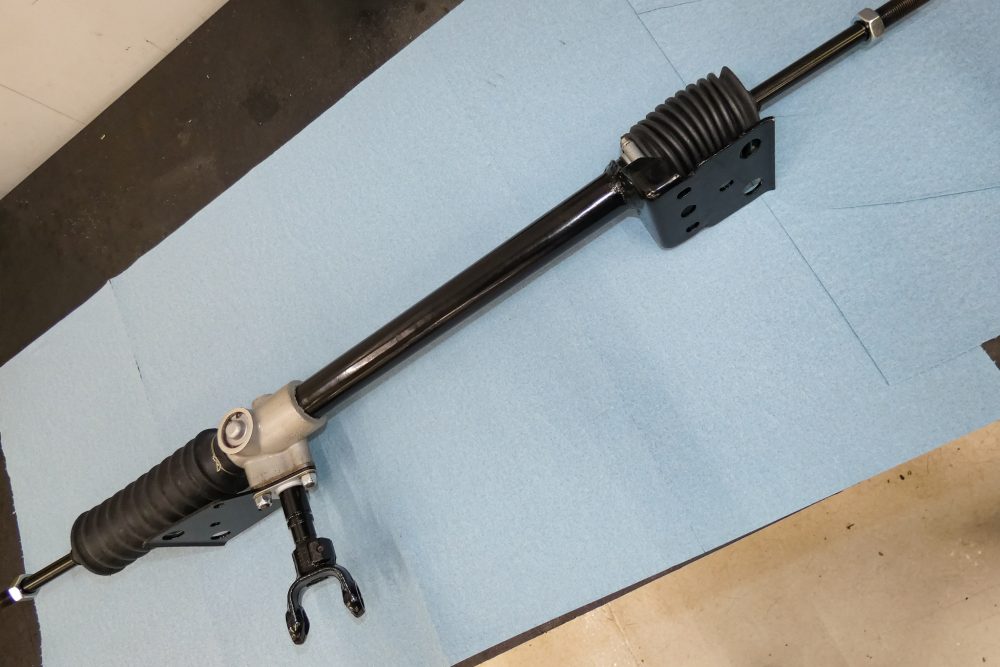

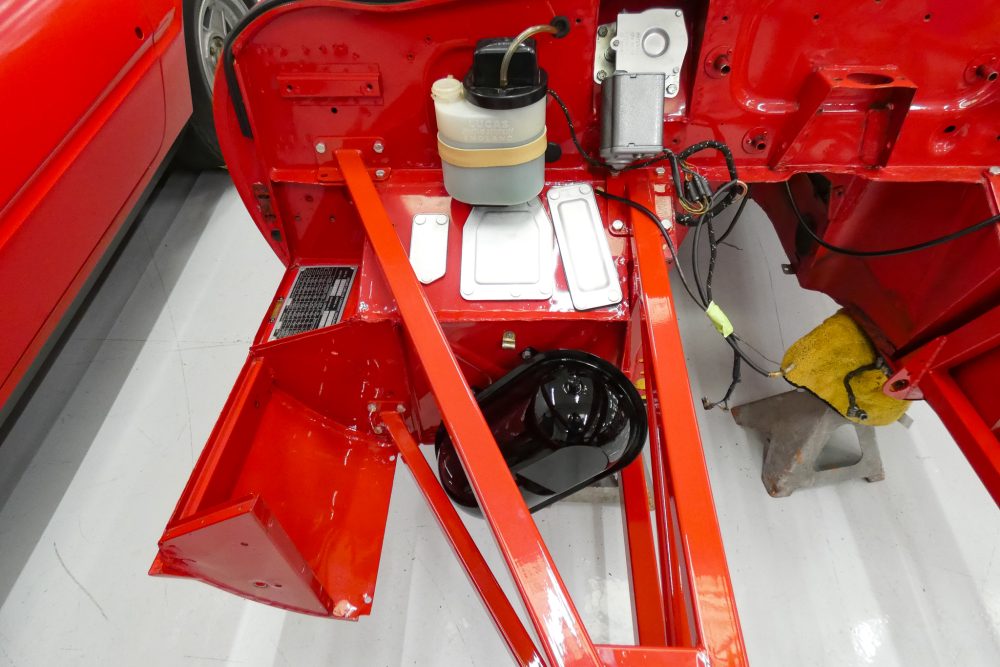

Suspension Assembly Progress Steering Rack Assembled

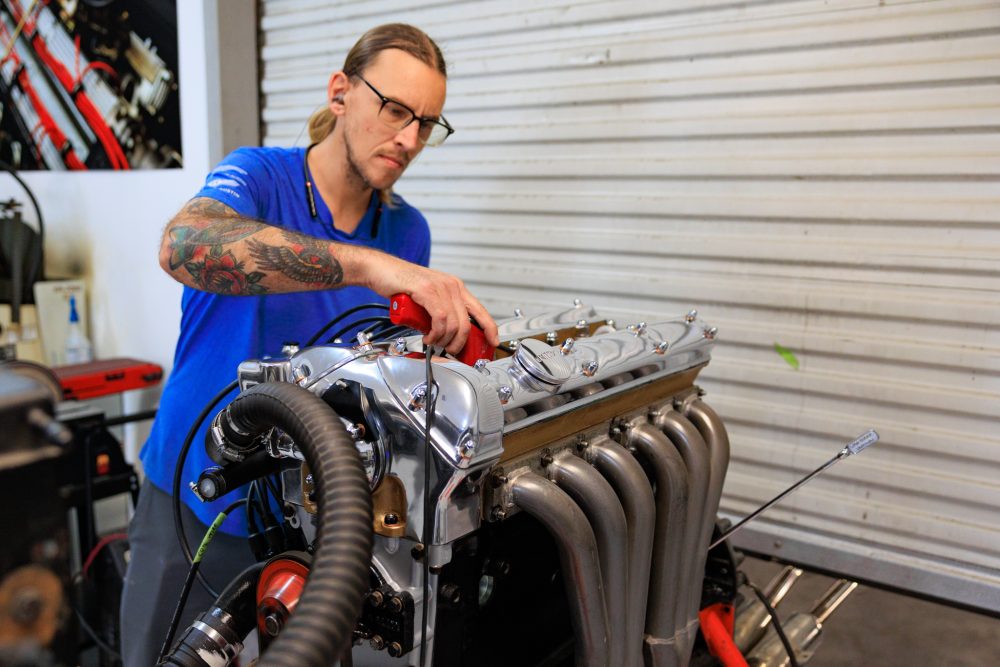

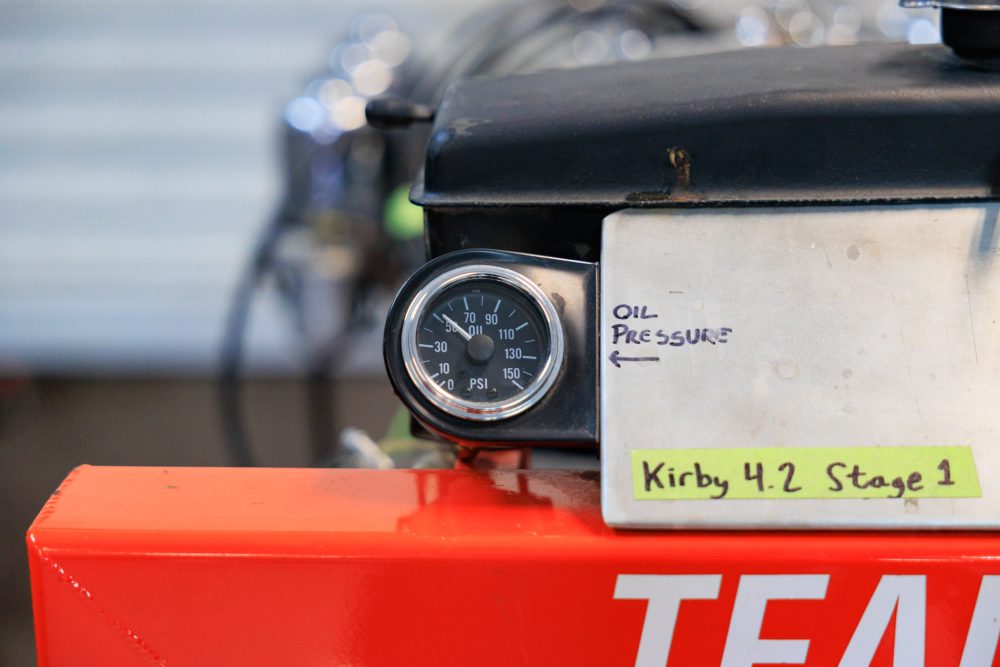

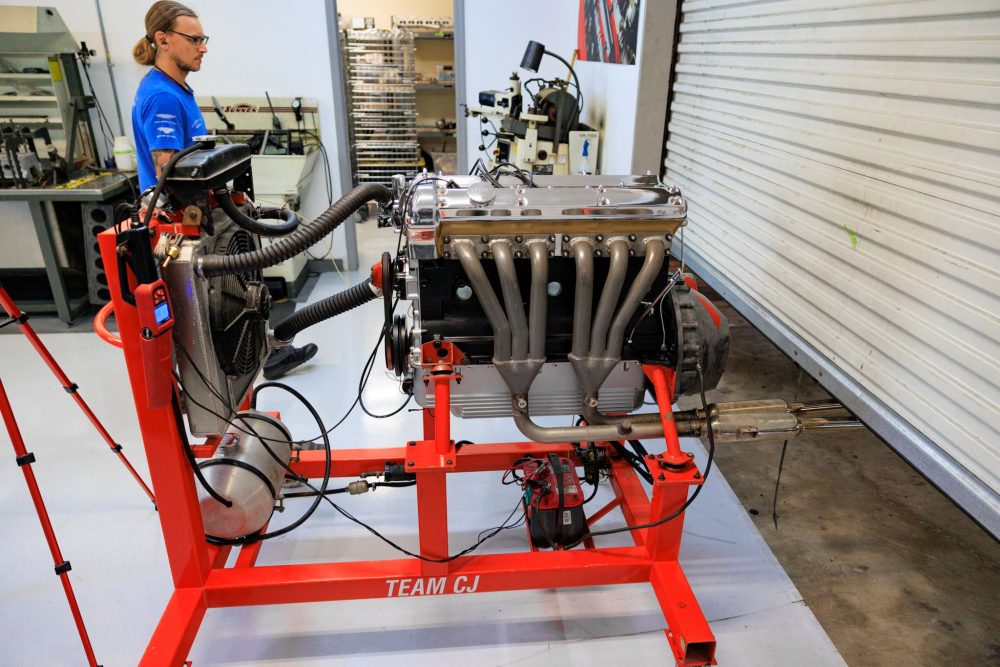

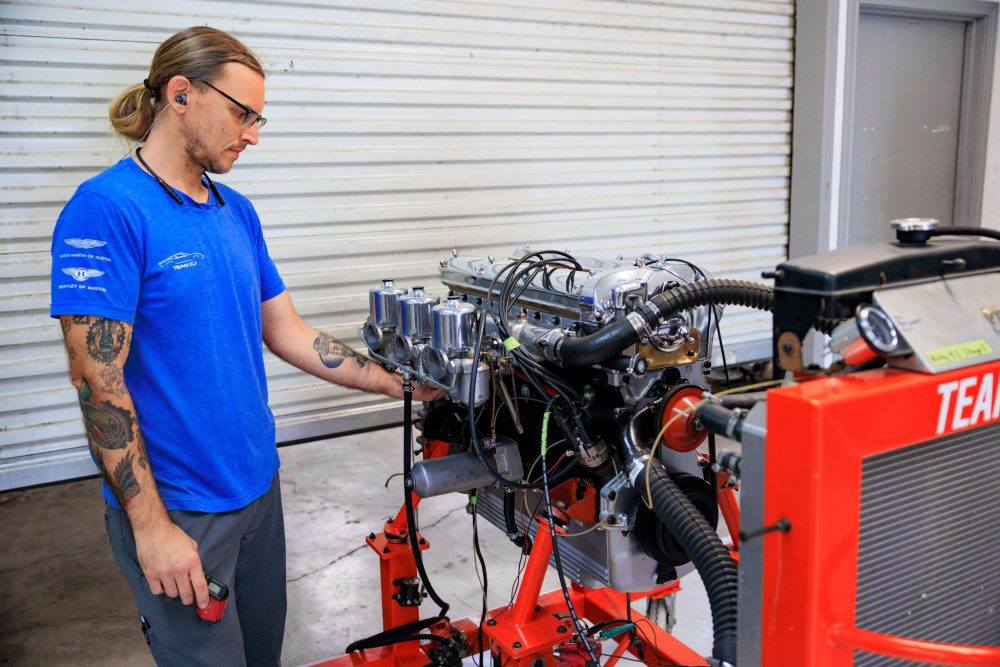

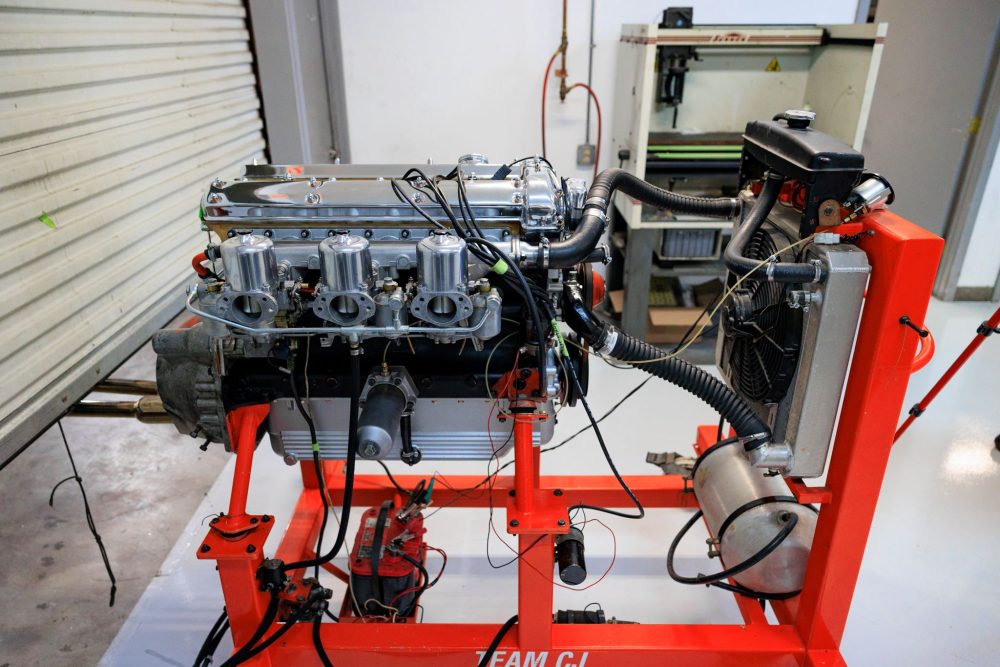

Engine Test Start

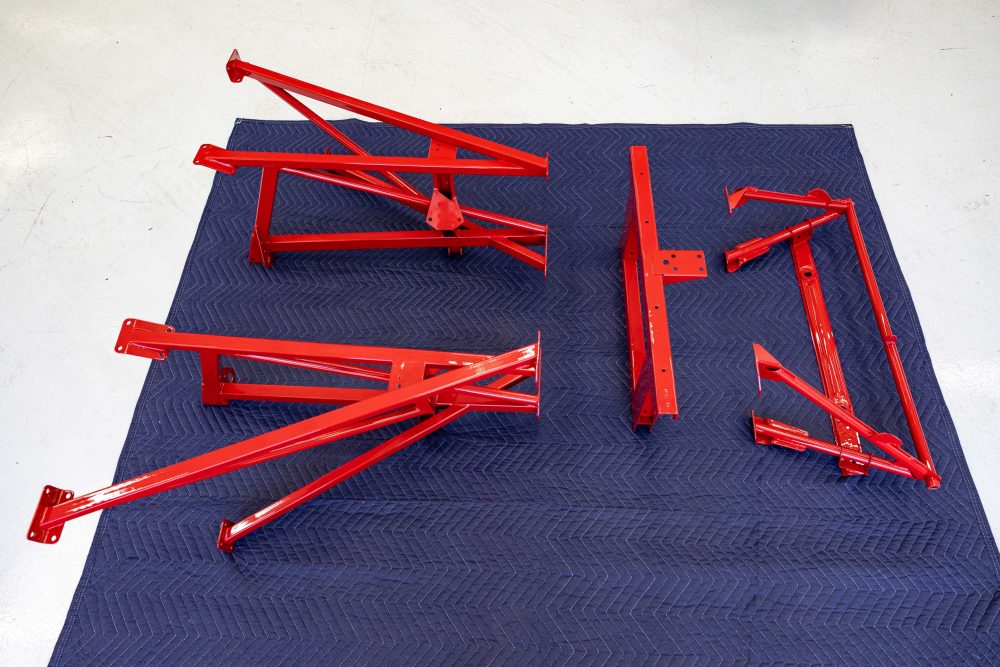

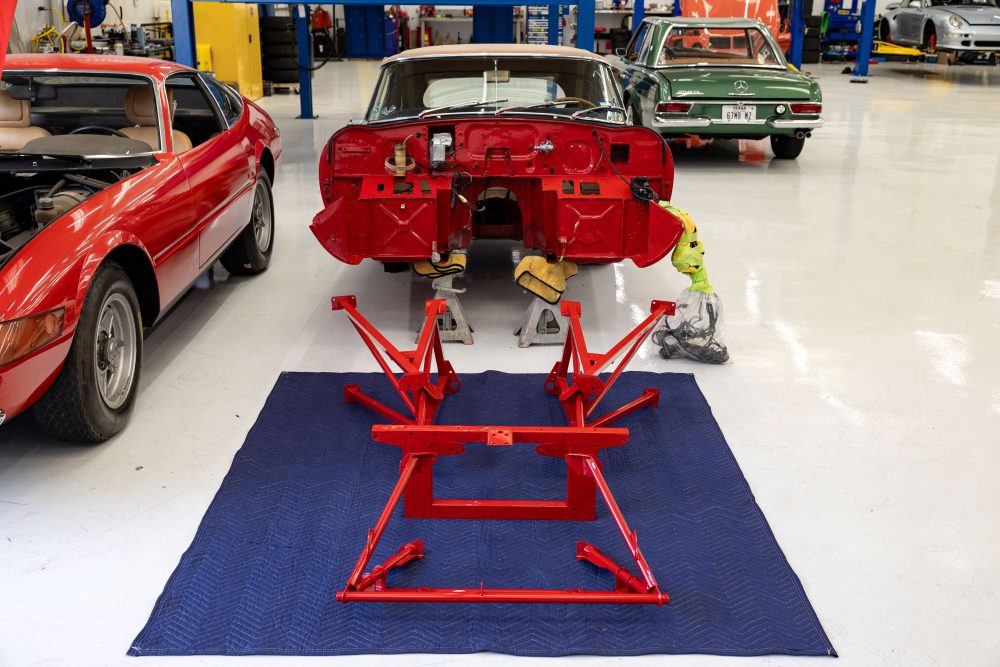

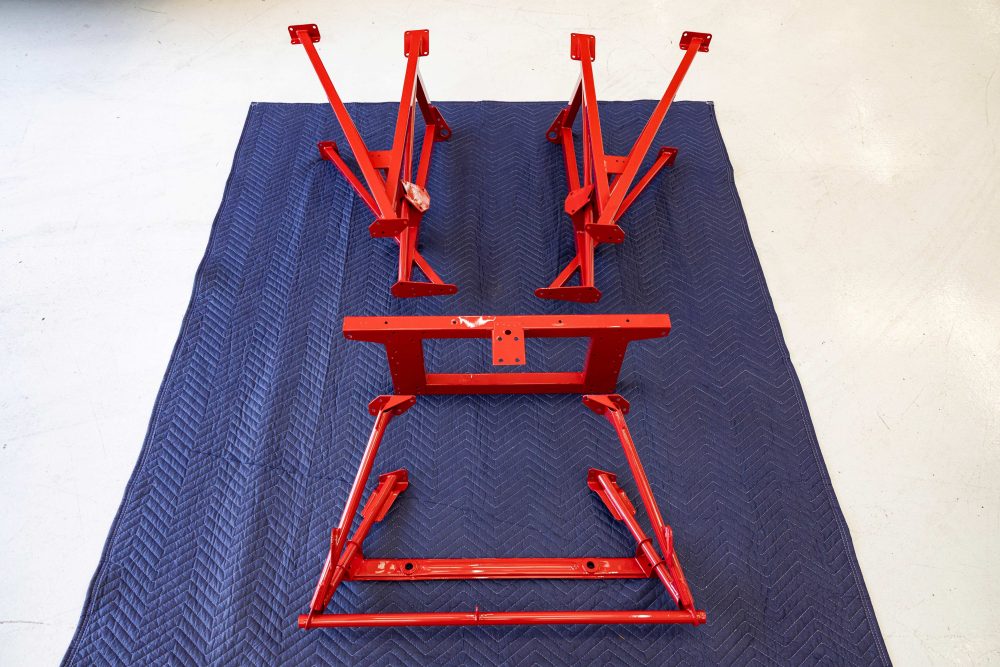

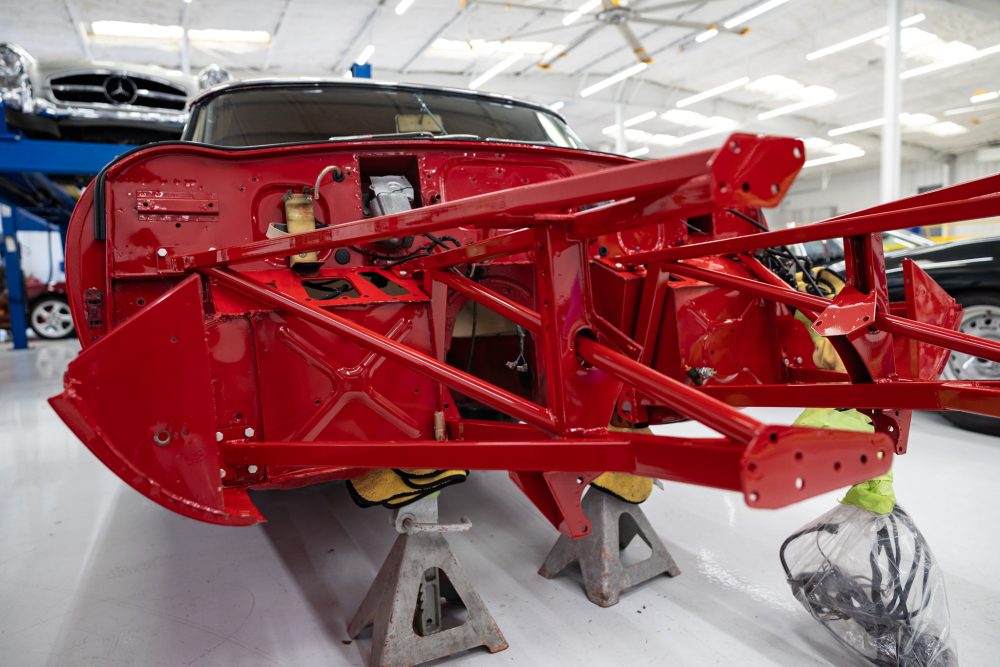

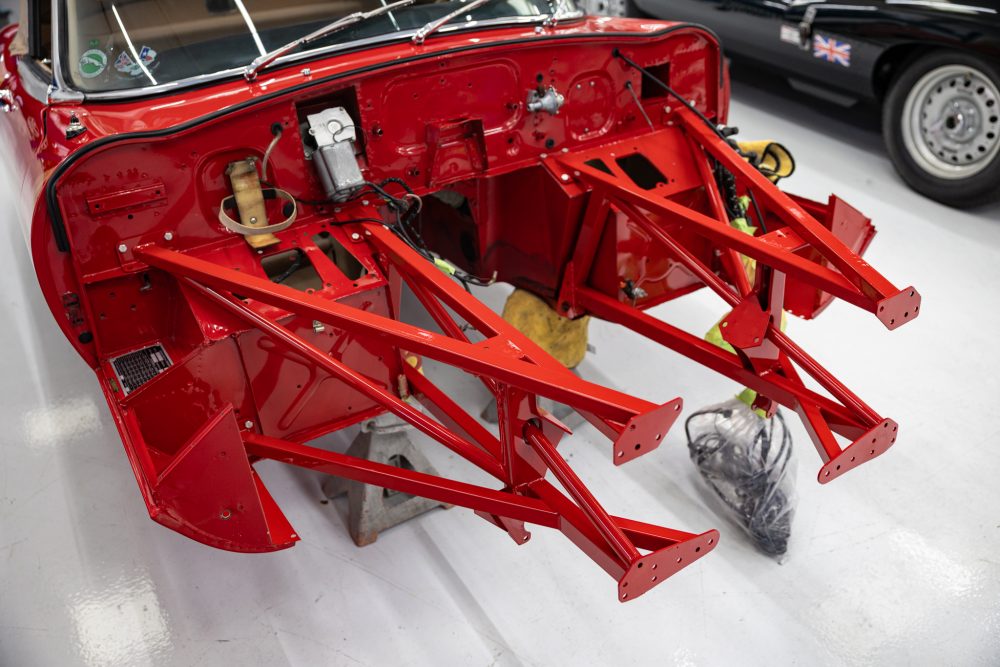

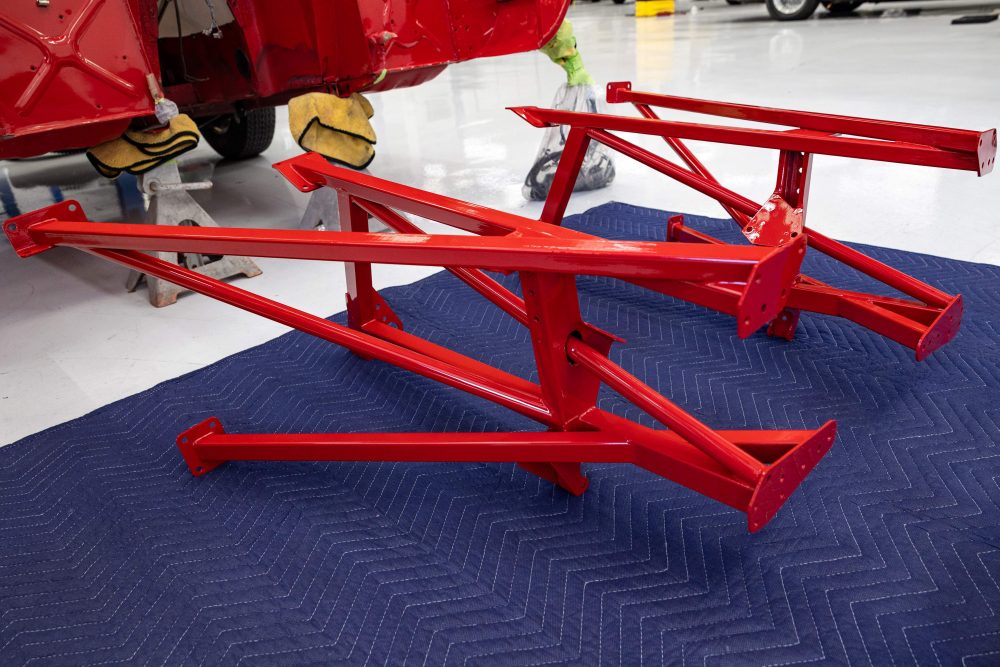

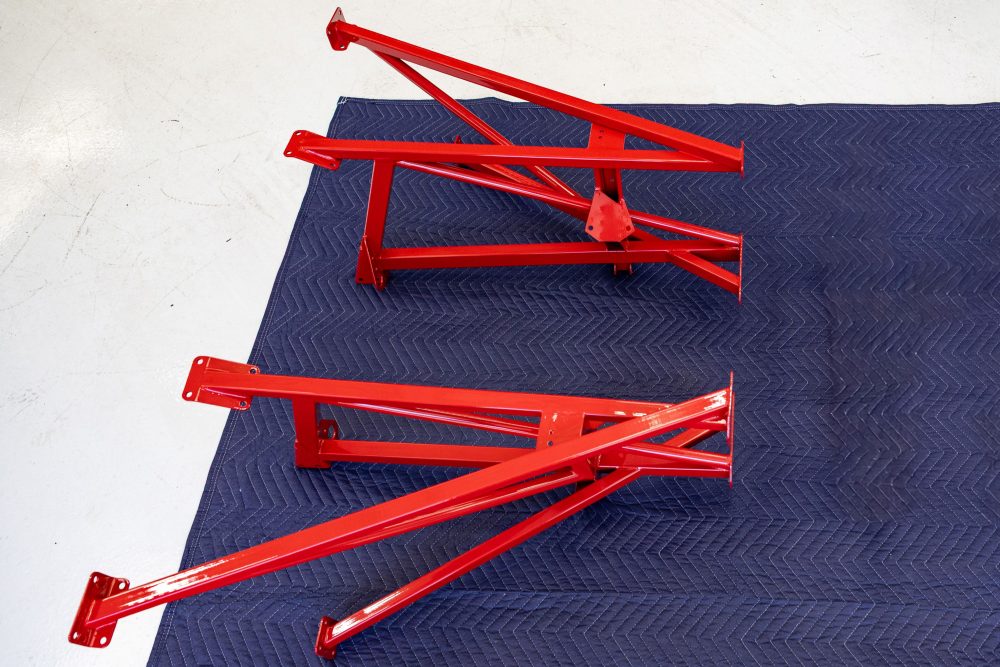

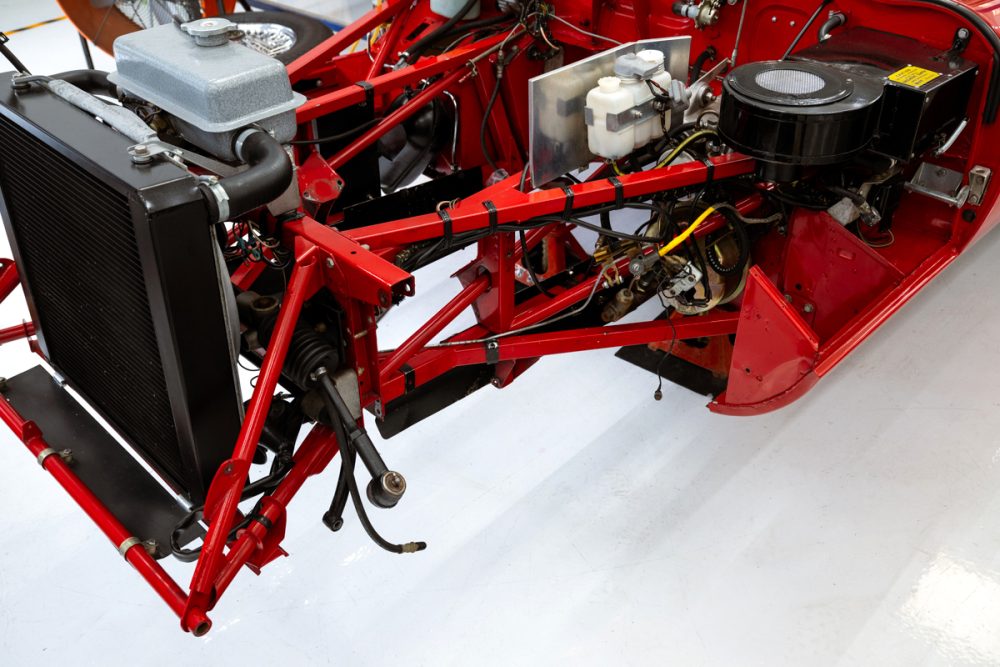

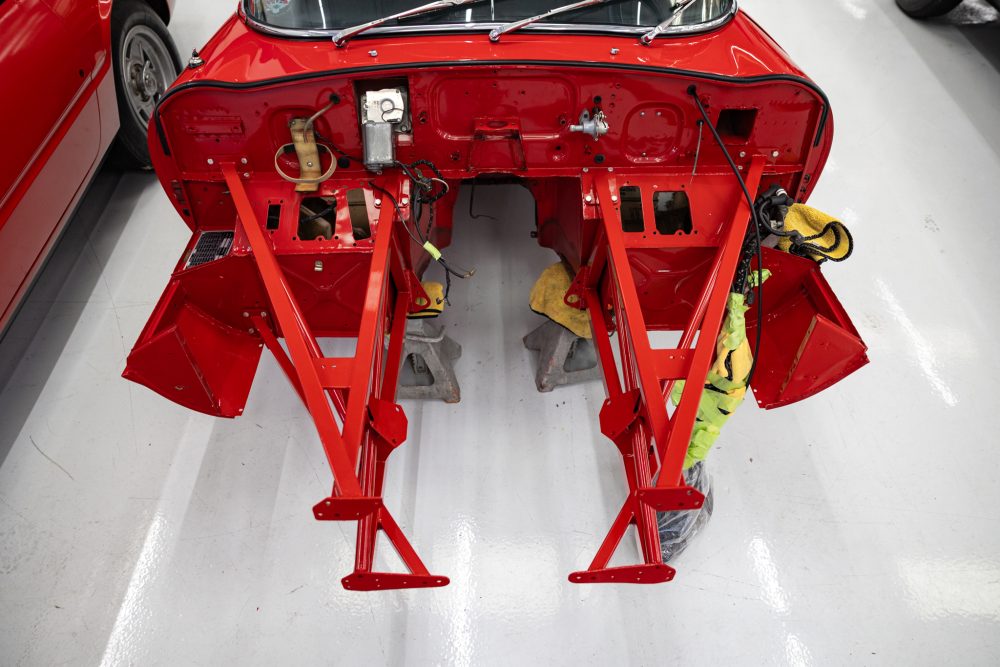

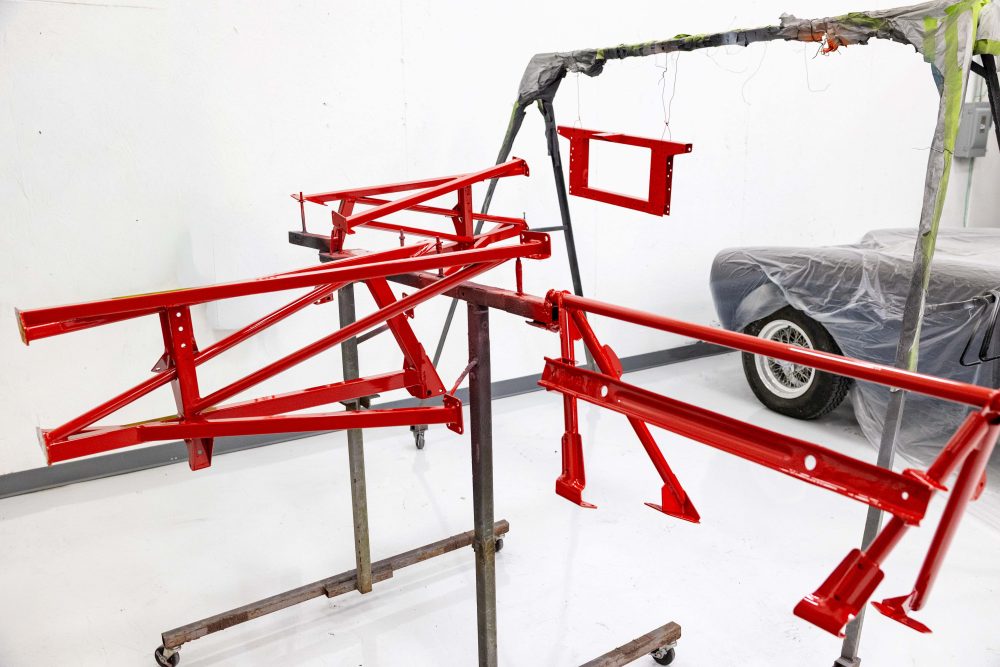

Painted Frames Assembly

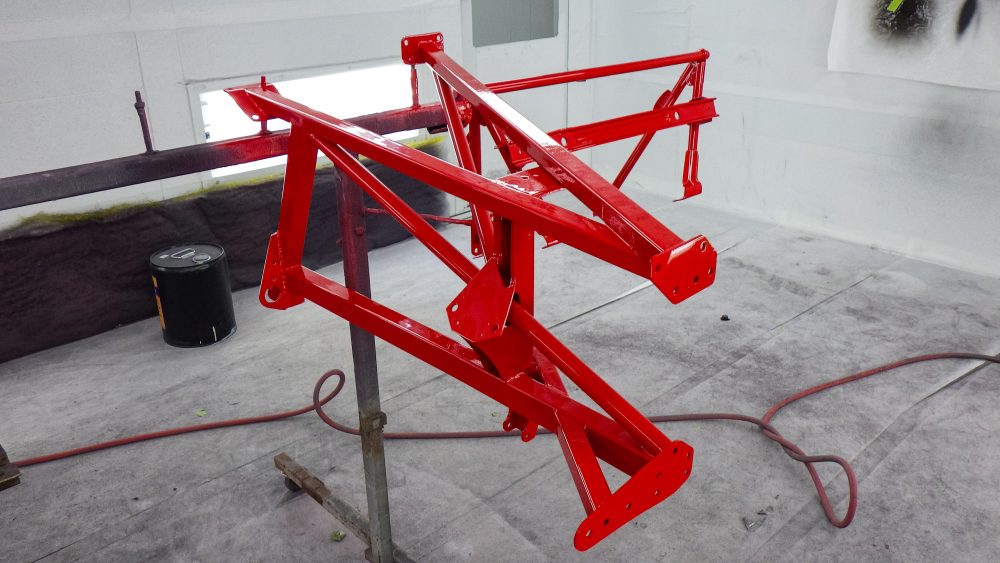

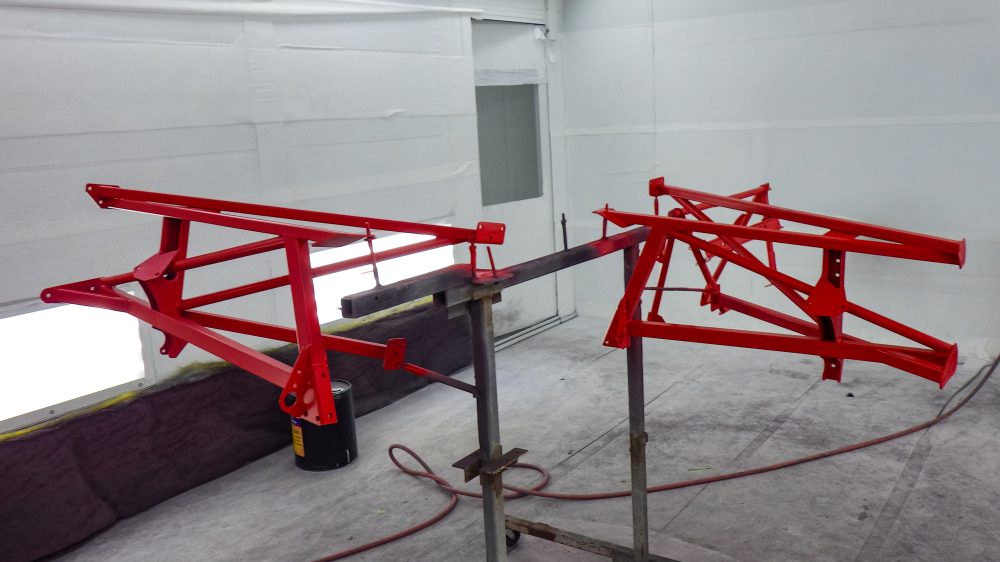

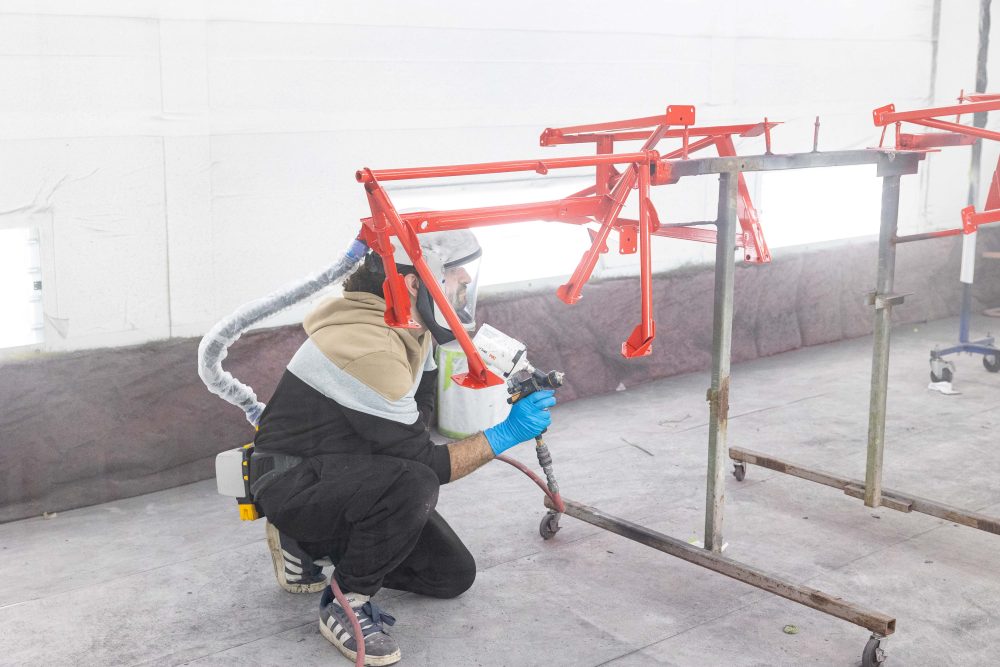

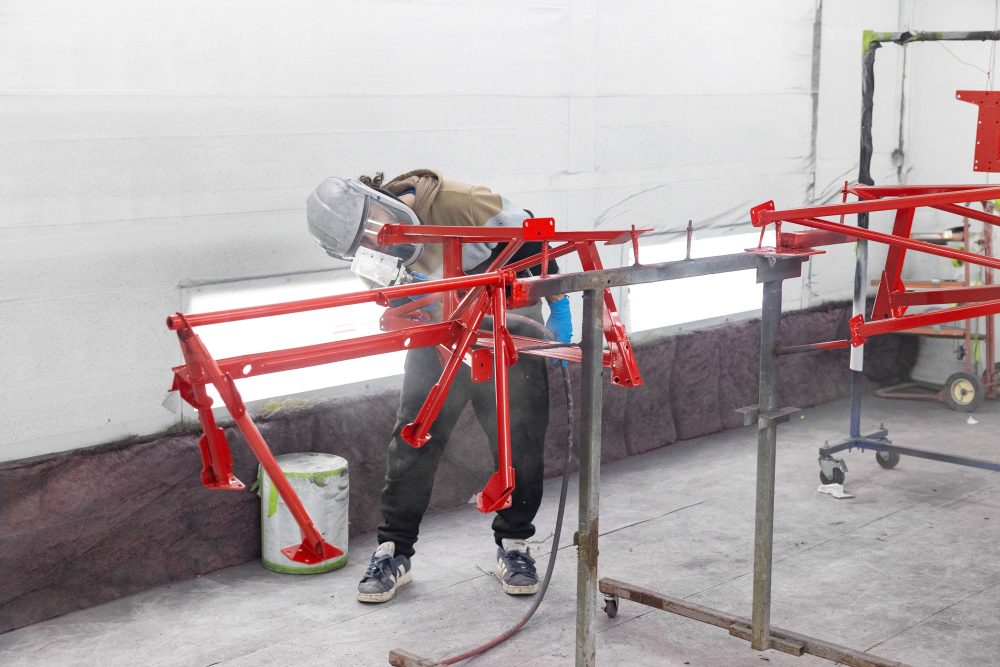

Painting Frames

Engine Parts Media Blasted

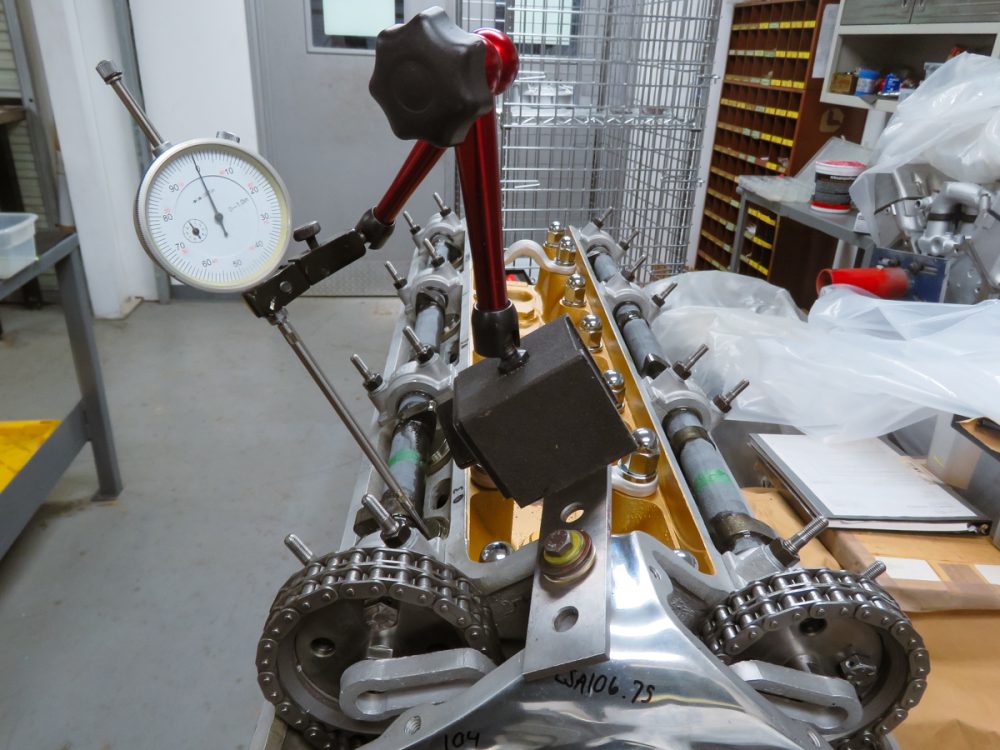

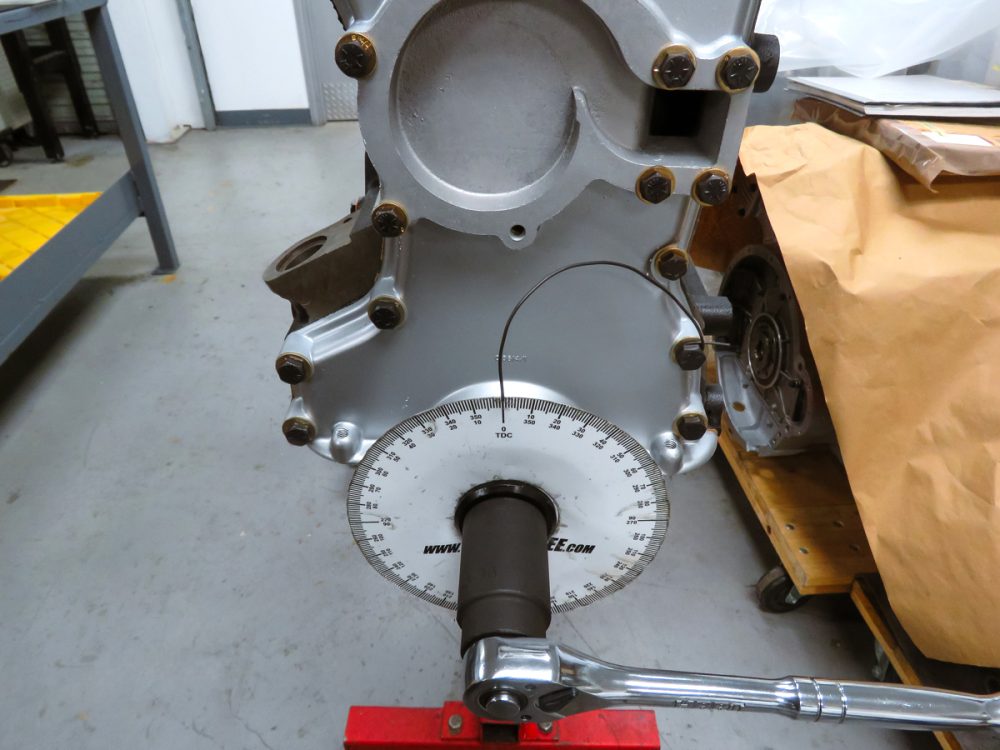

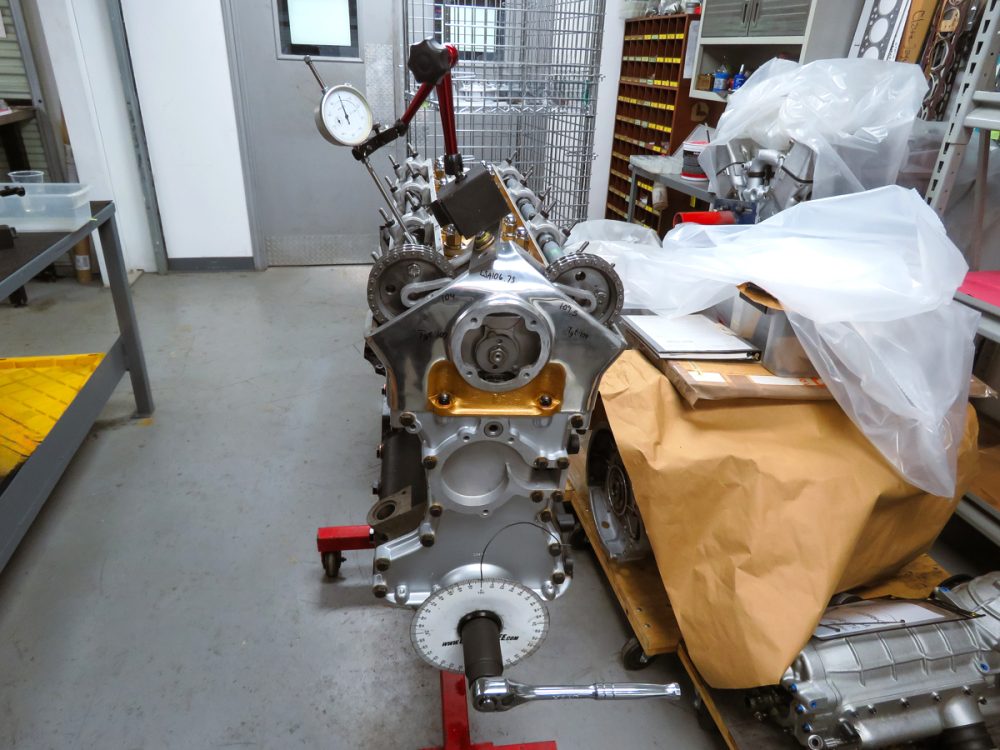

Degreeing camshaft

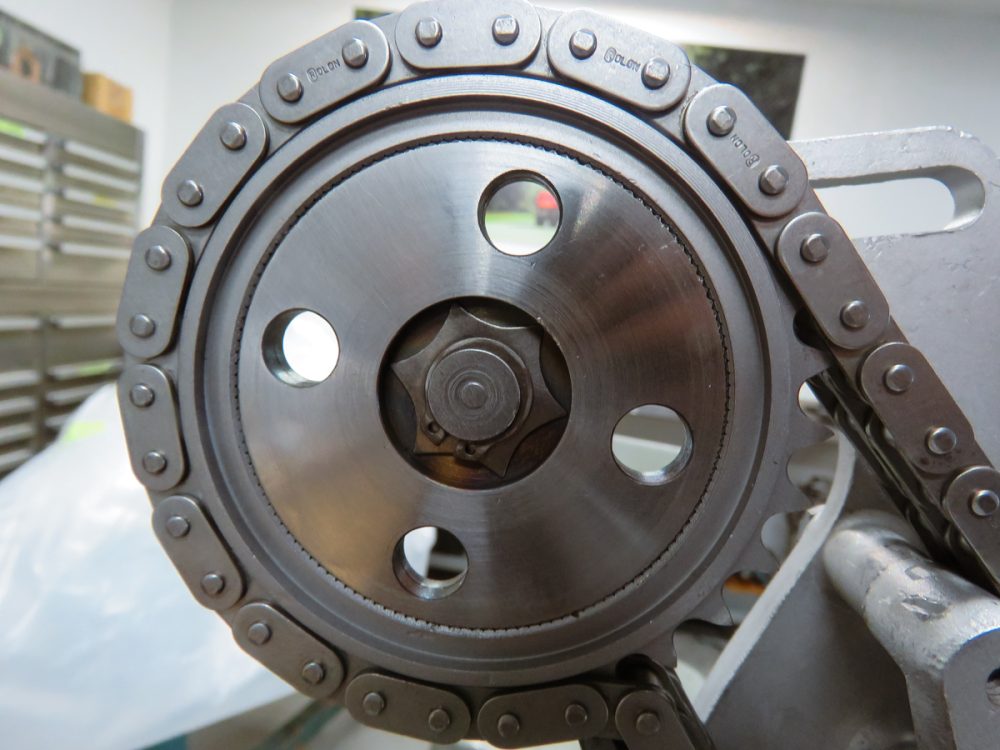

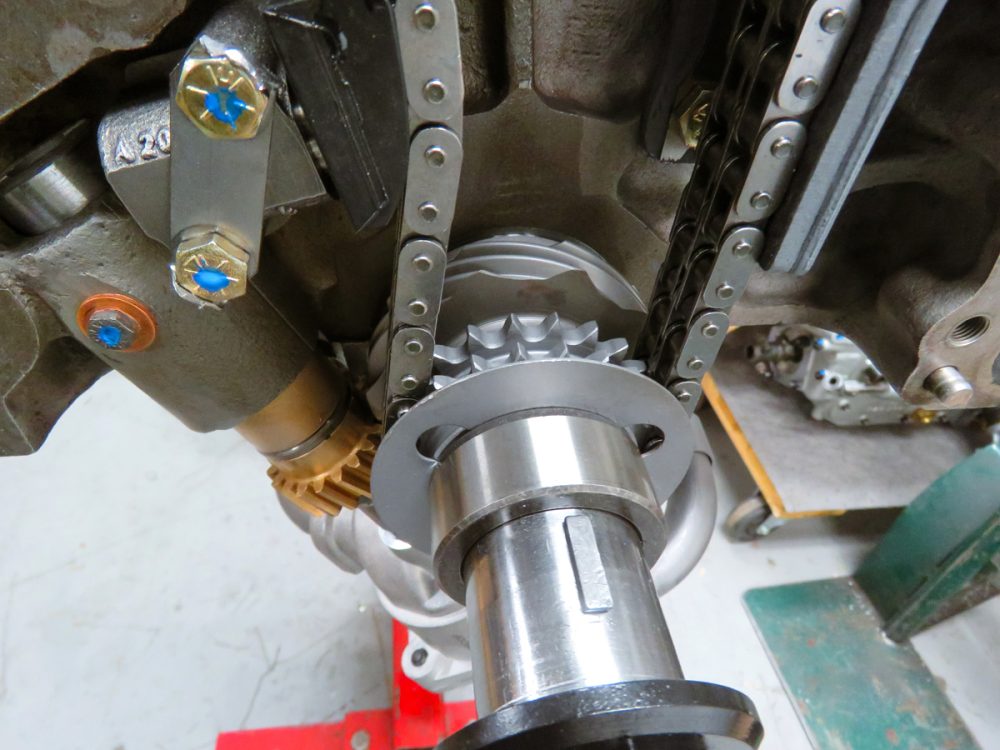

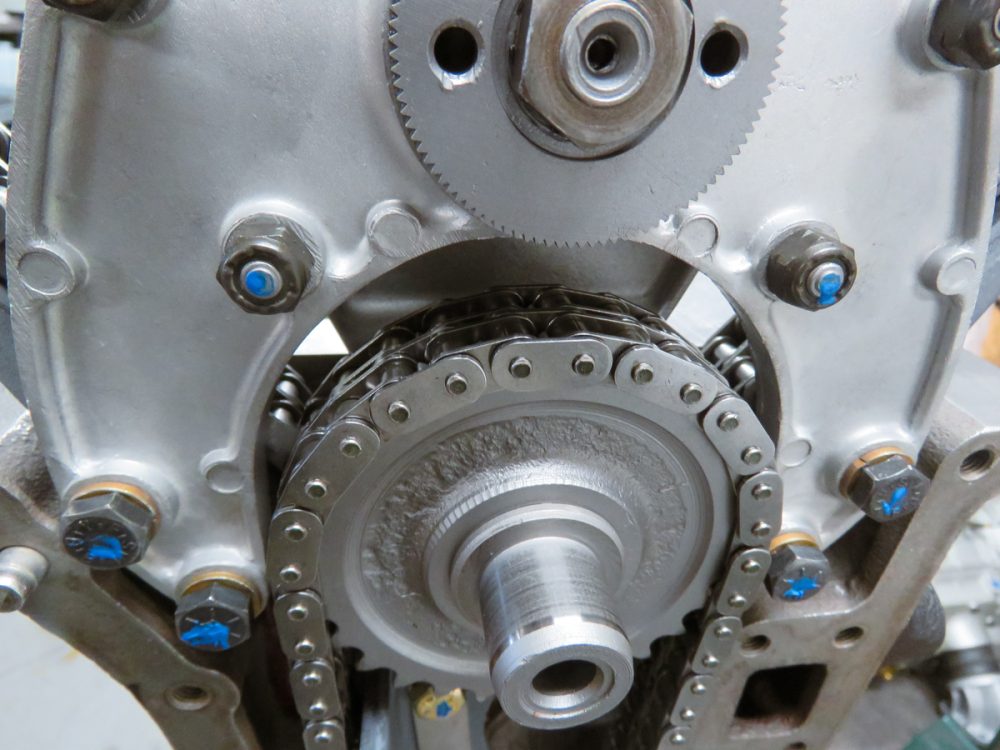

Timing chain assemblies installed

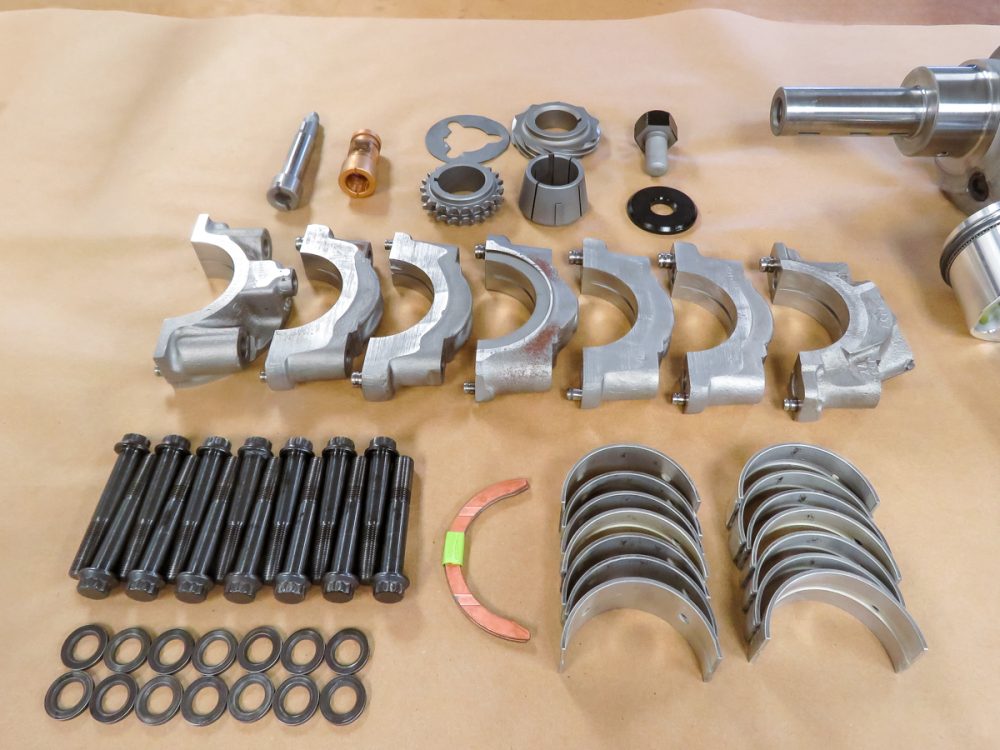

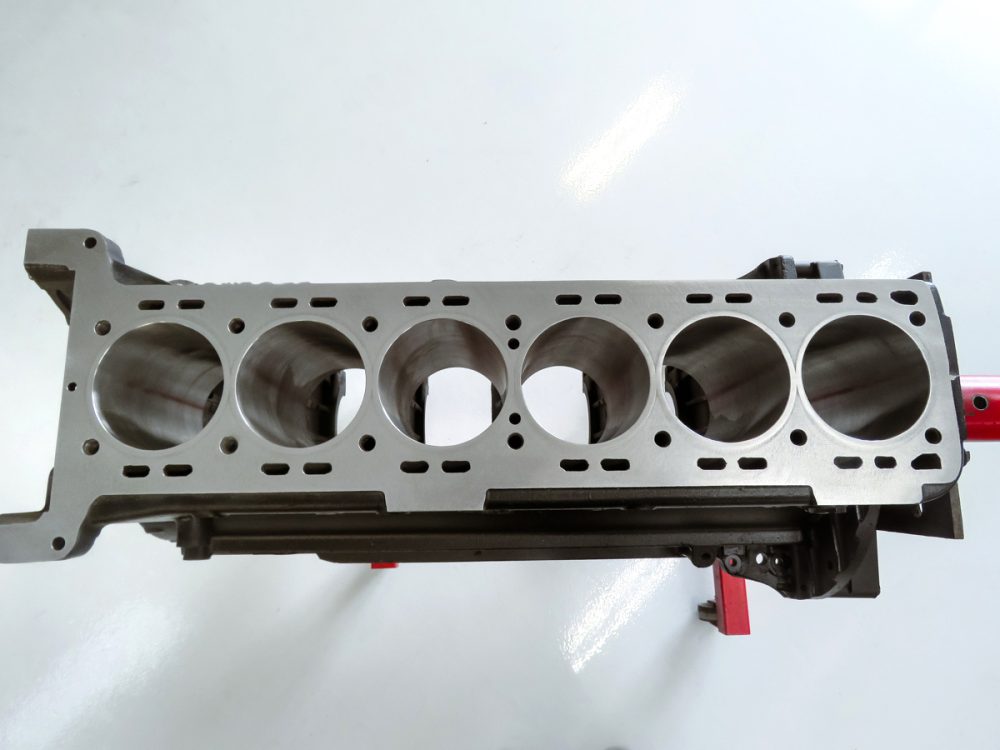

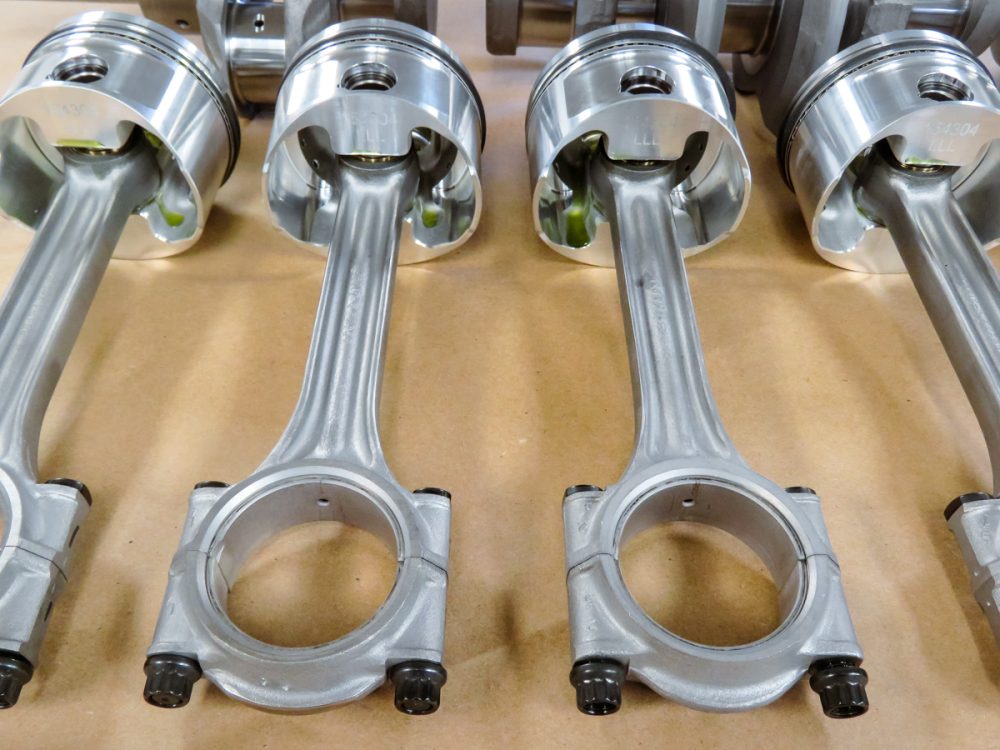

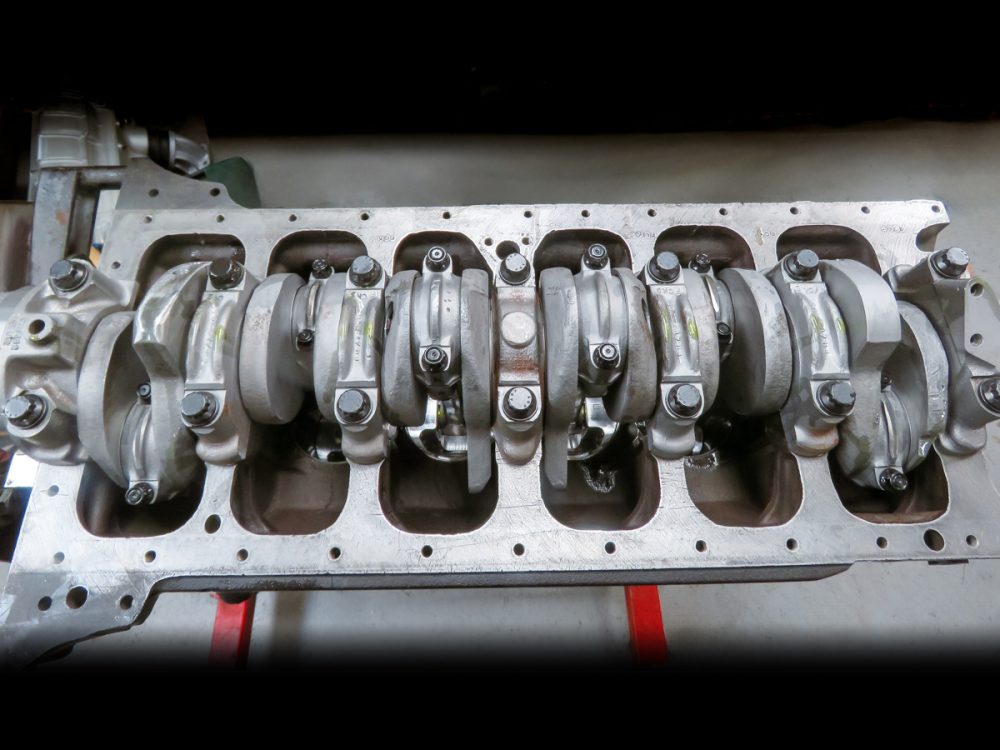

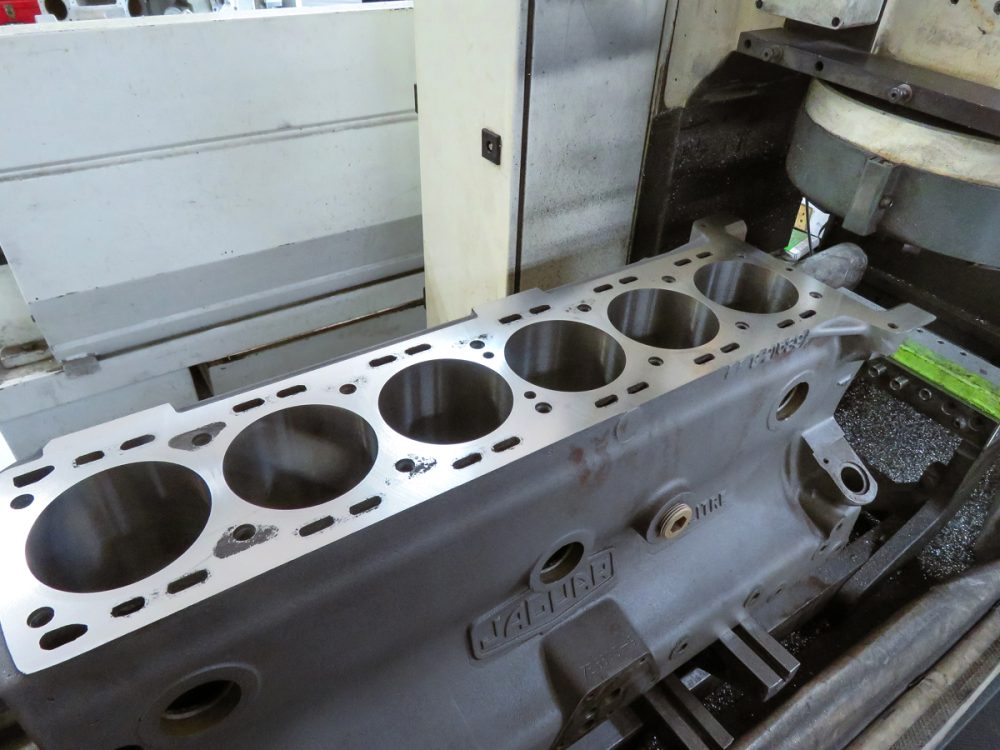

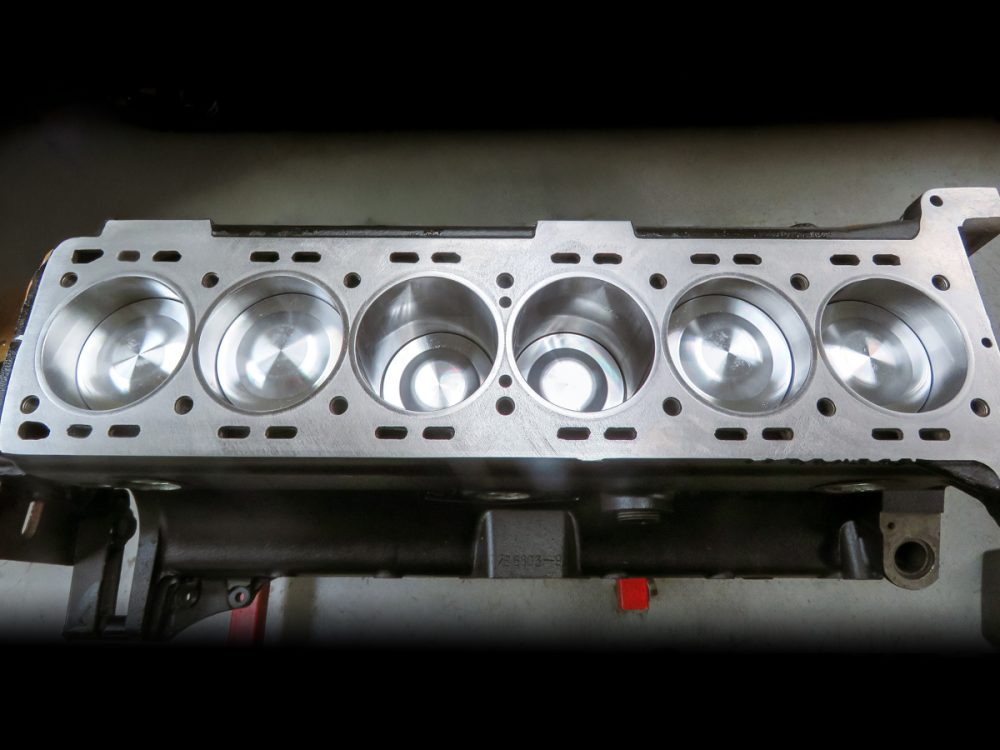

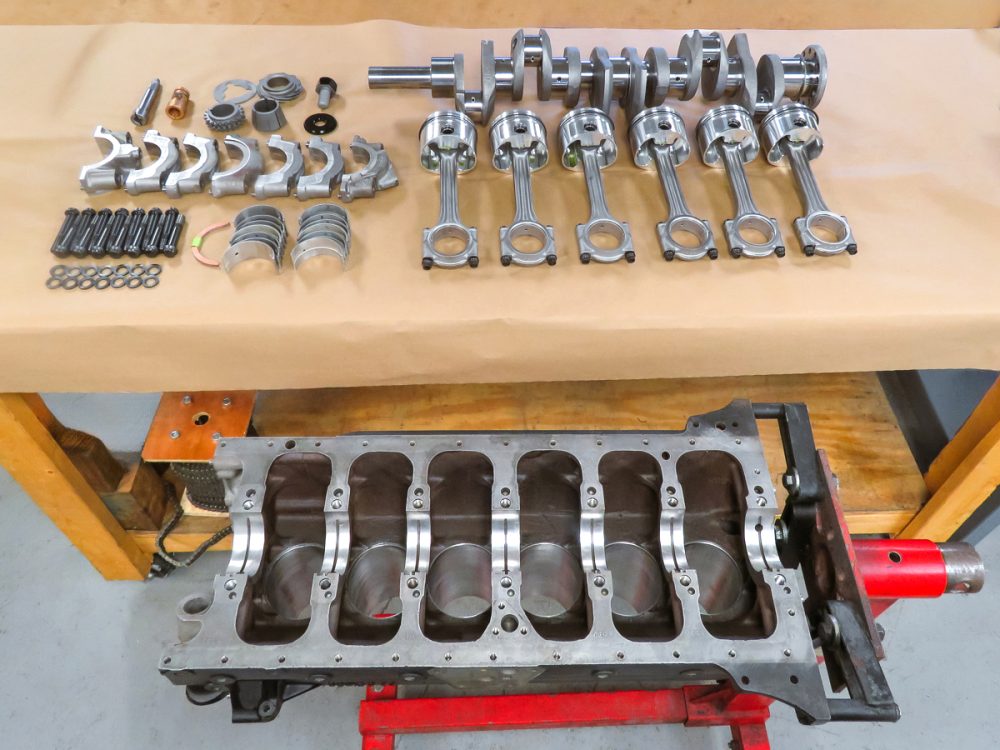

Surface block Shortblock assembly

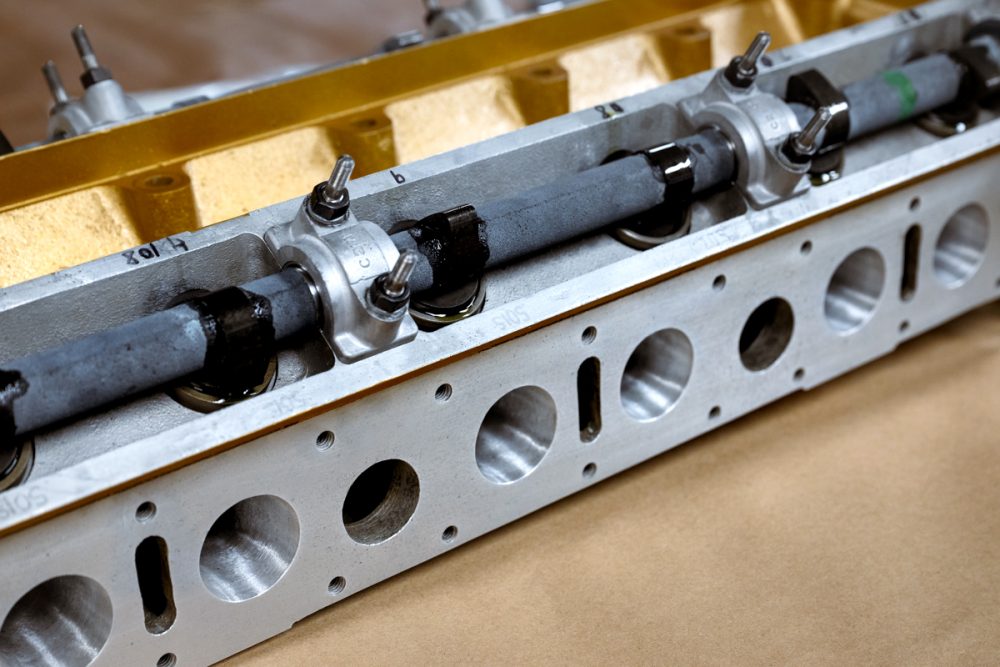

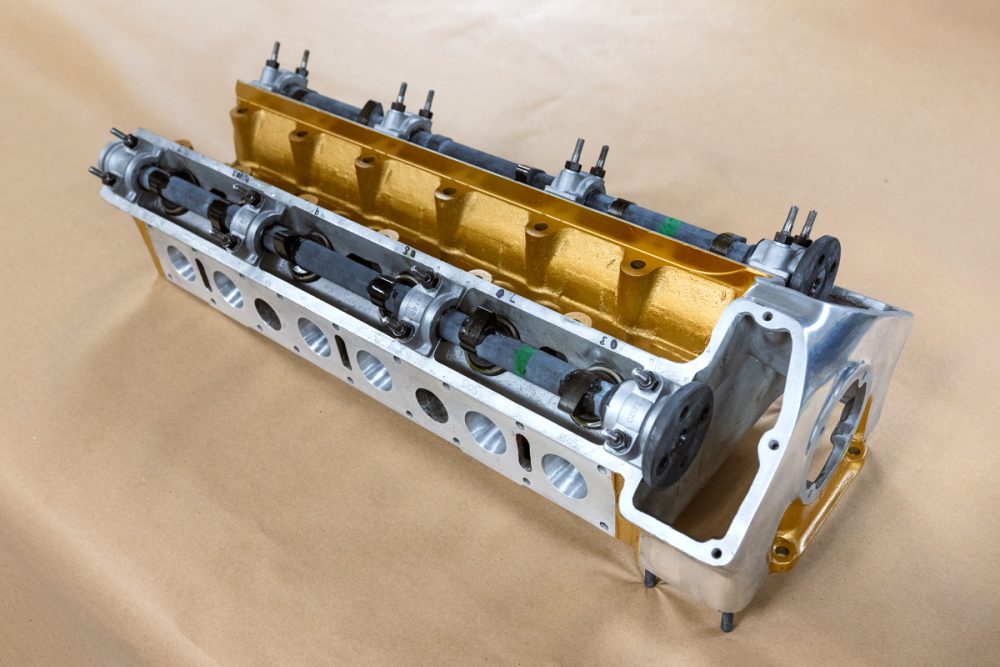

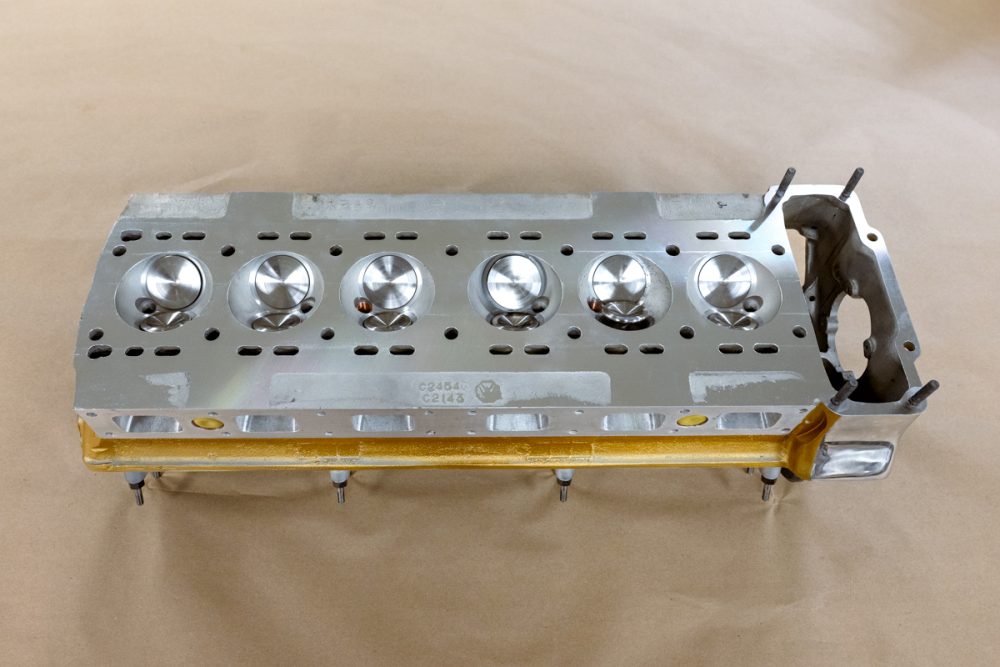

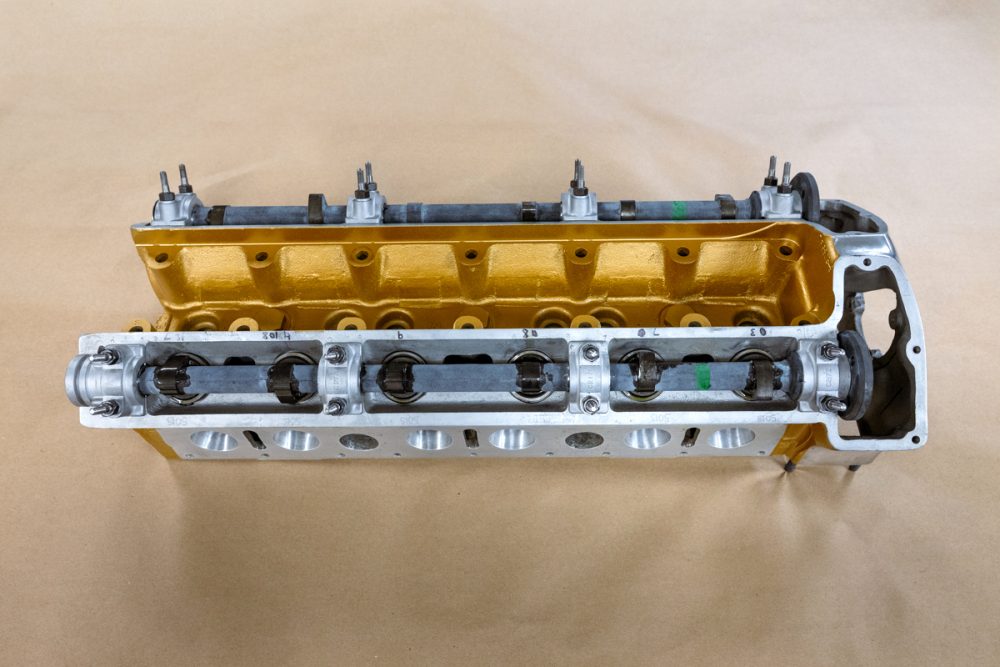

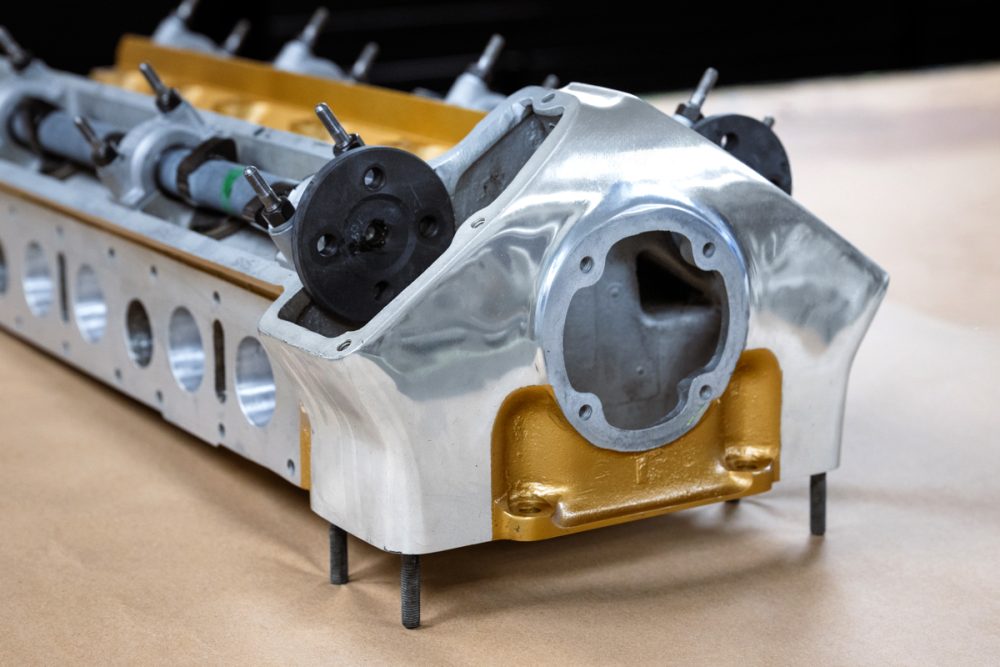

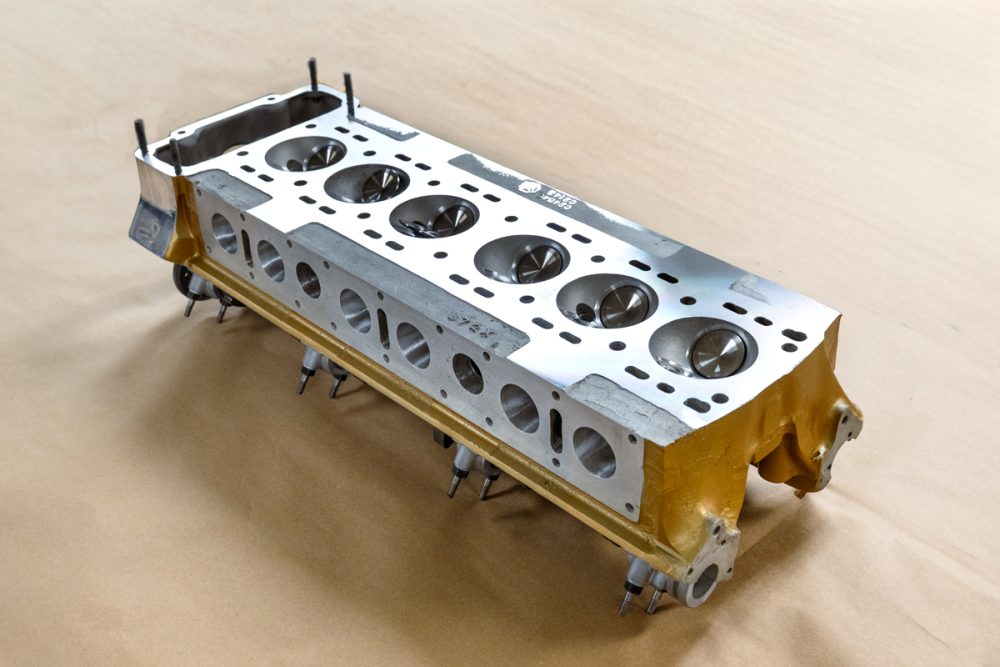

Cylinder head assembled

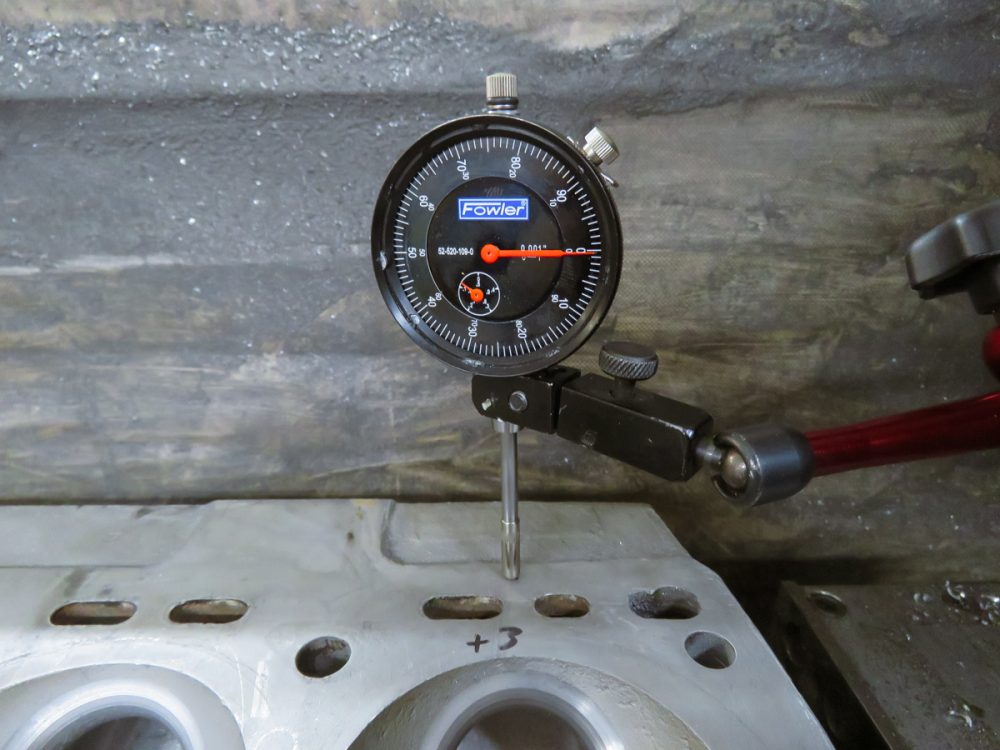

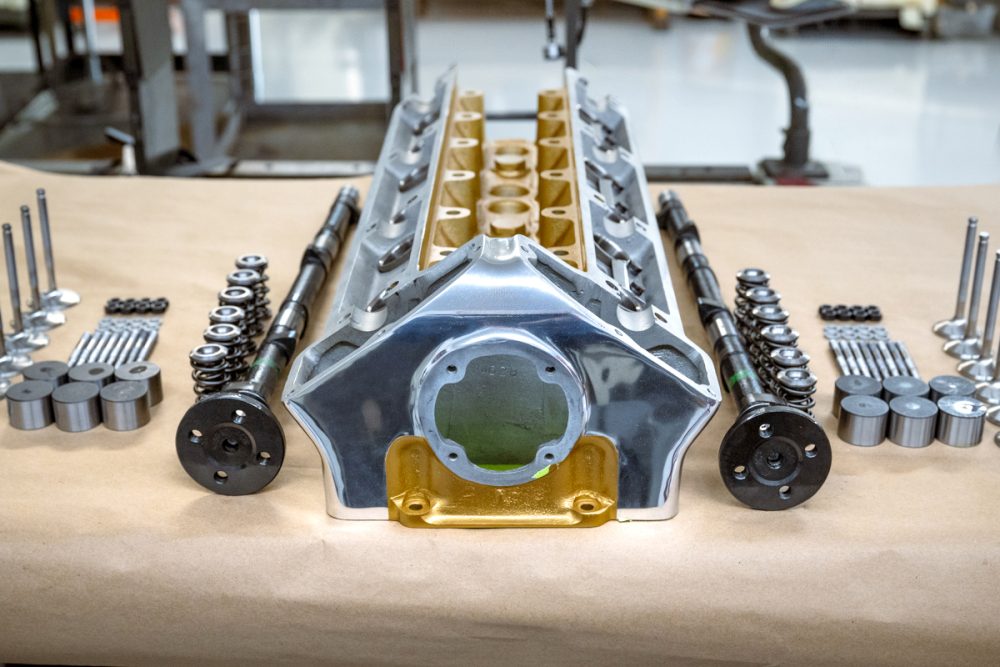

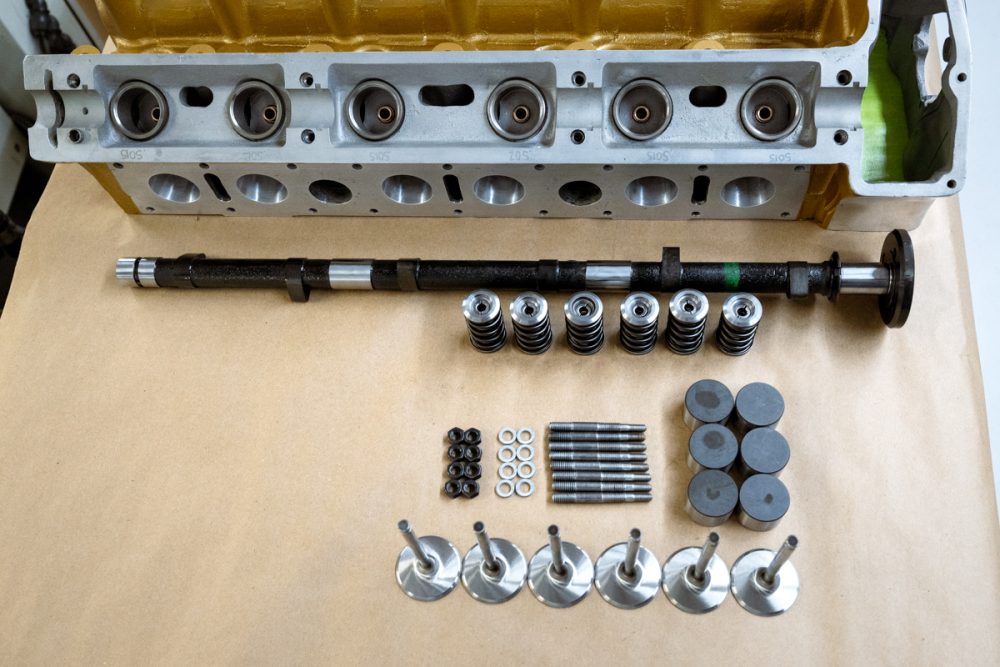

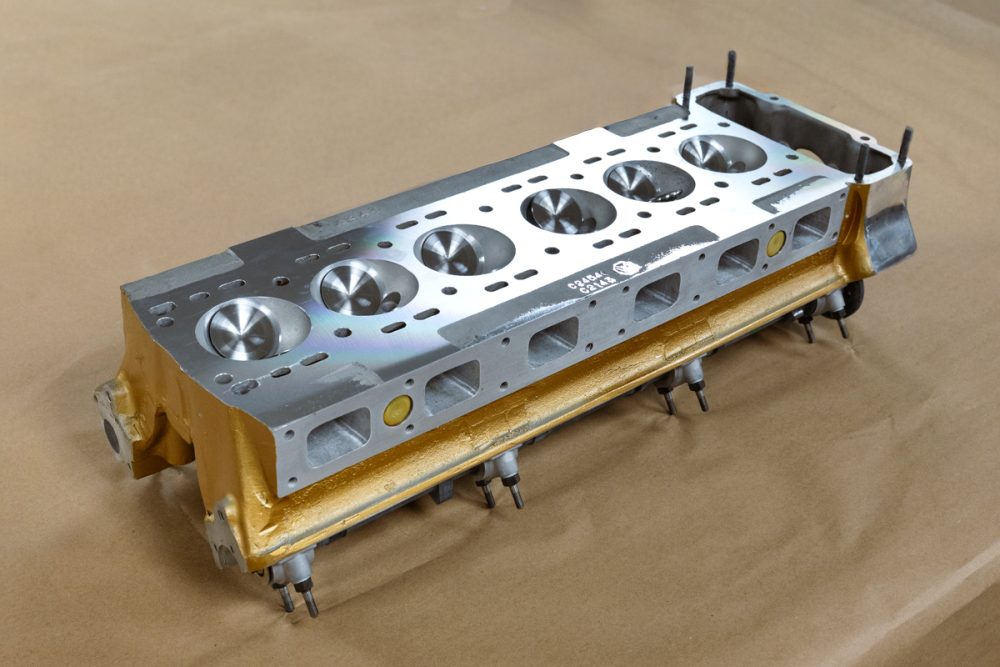

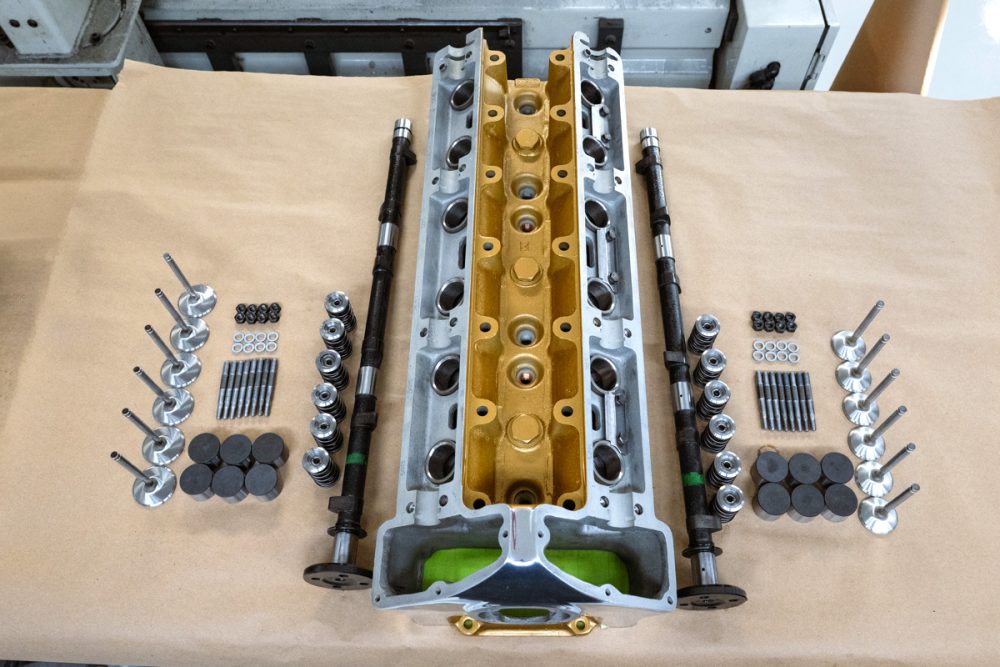

Cylinder head ready for assembly

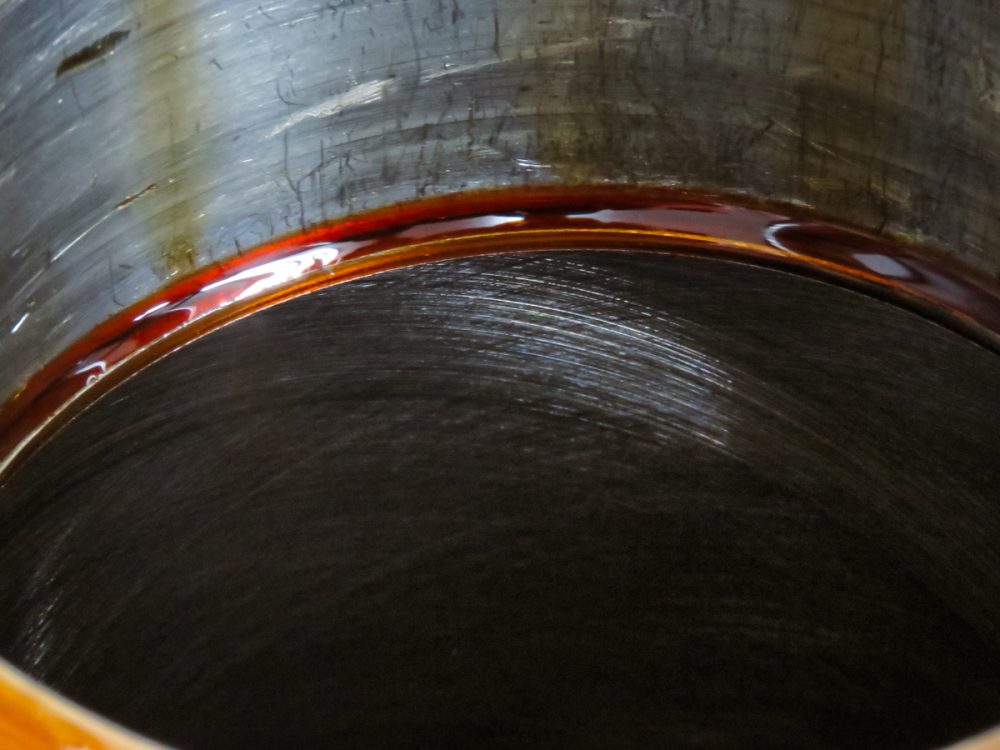

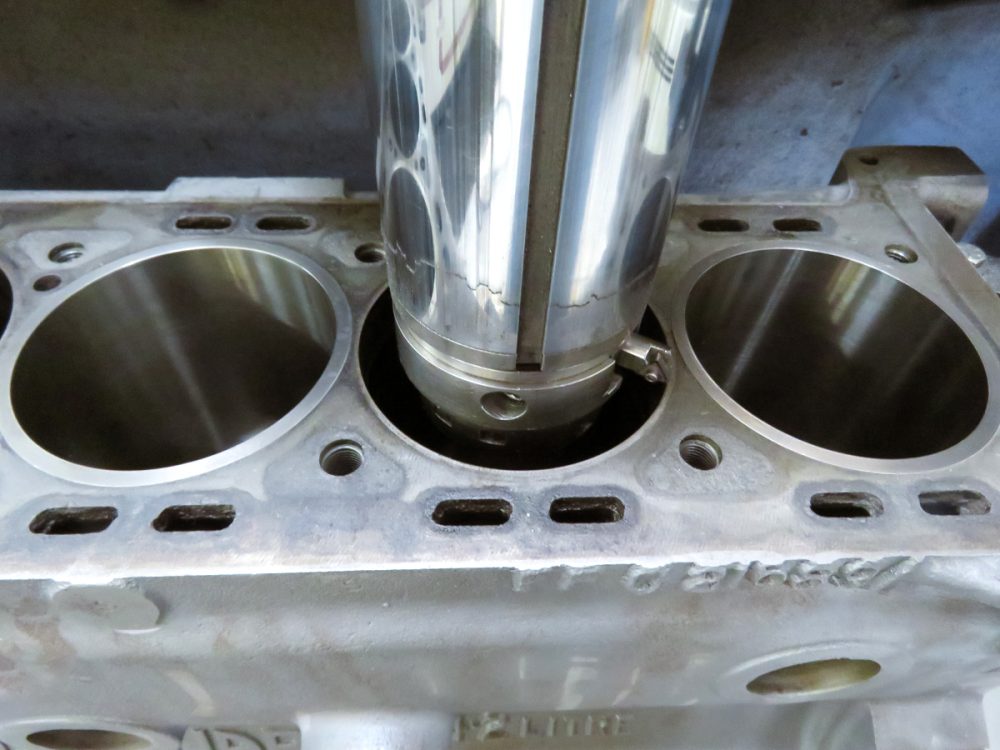

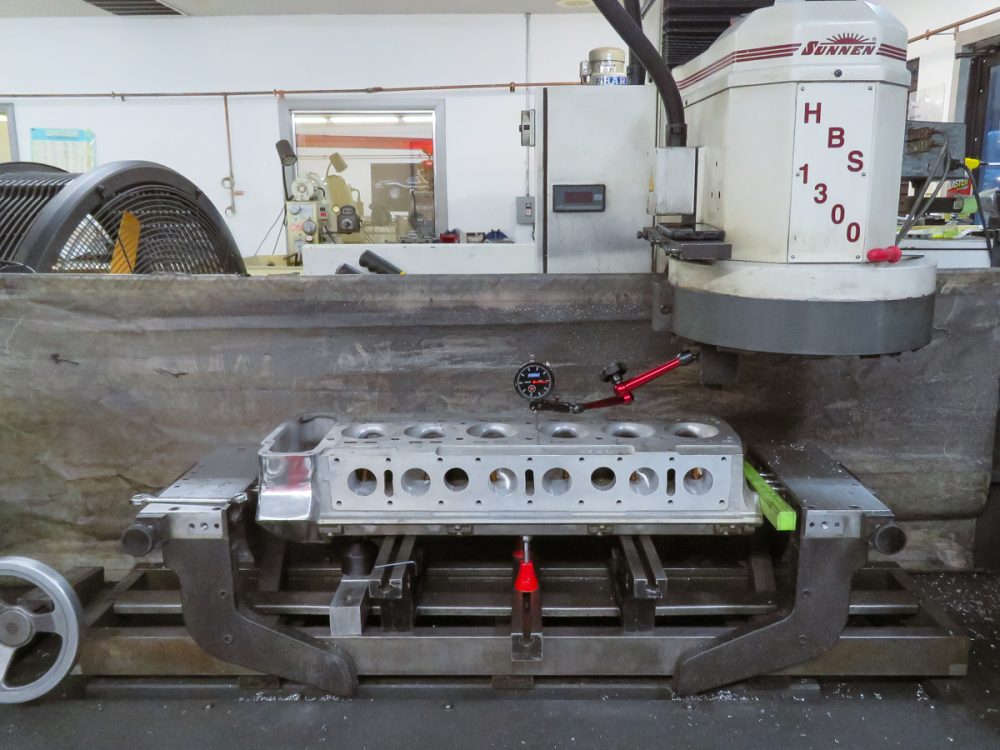

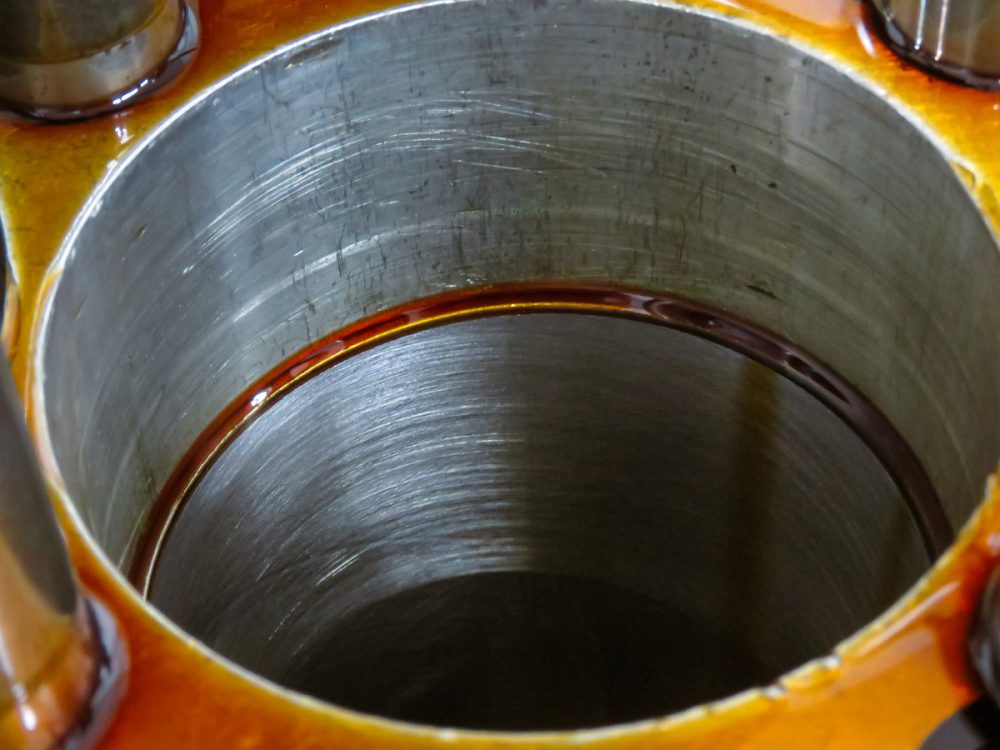

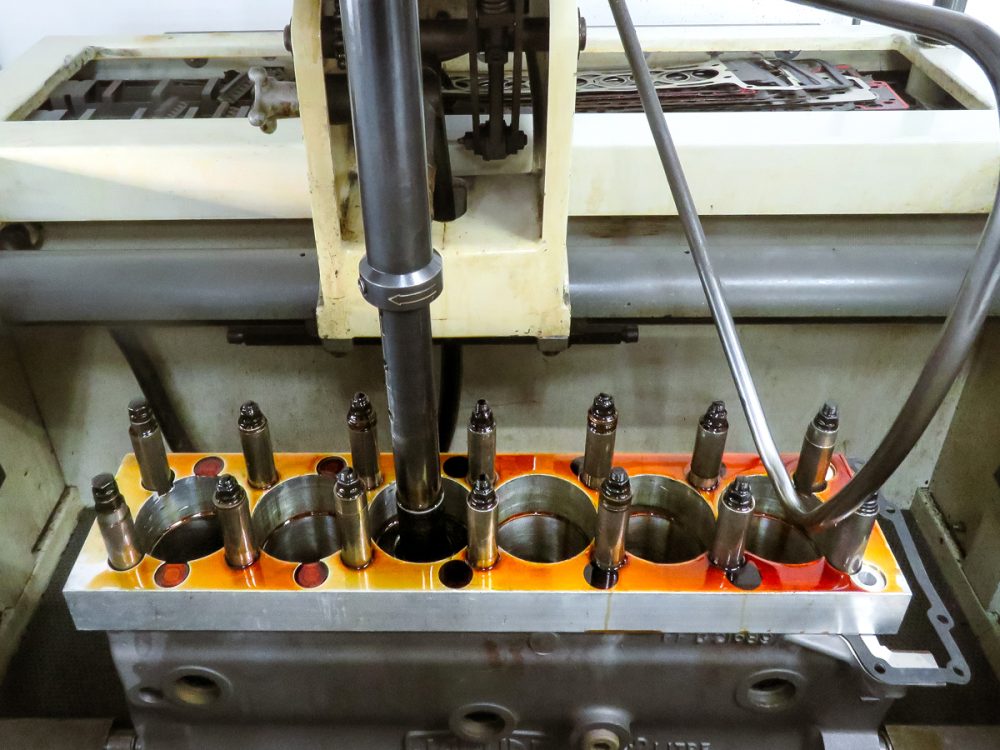

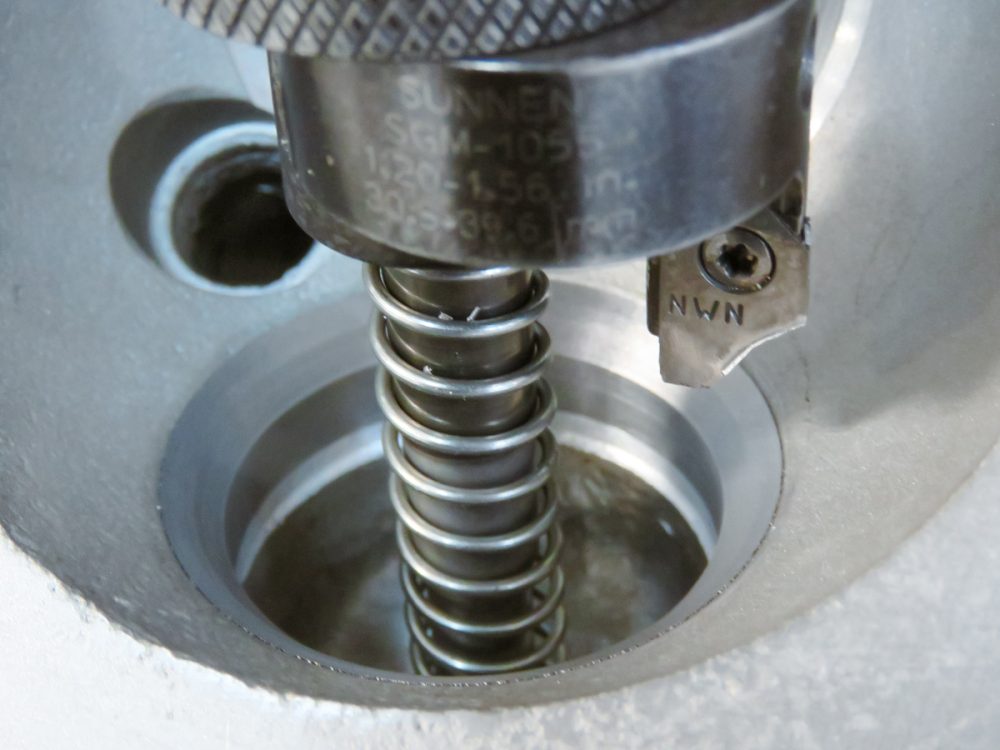

Hone cylinders

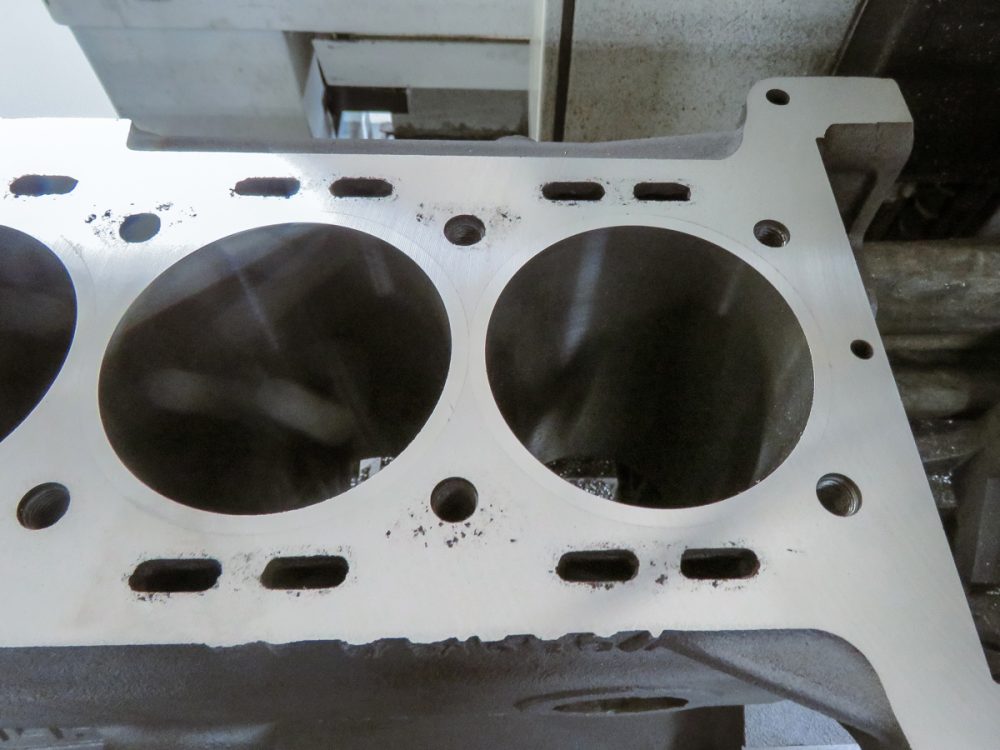

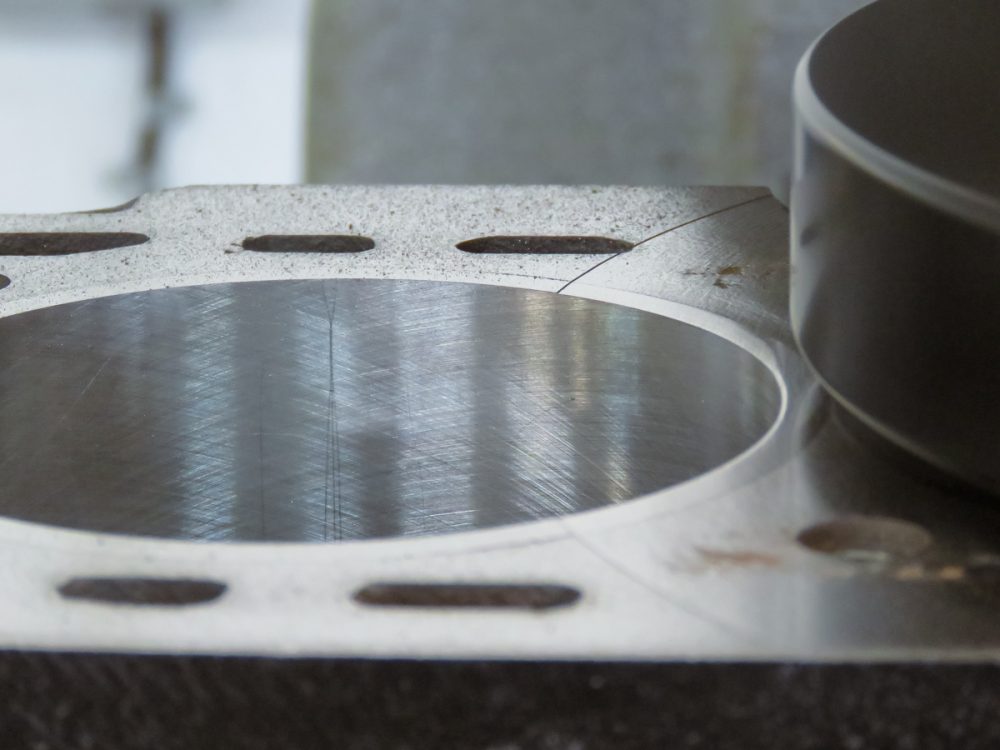

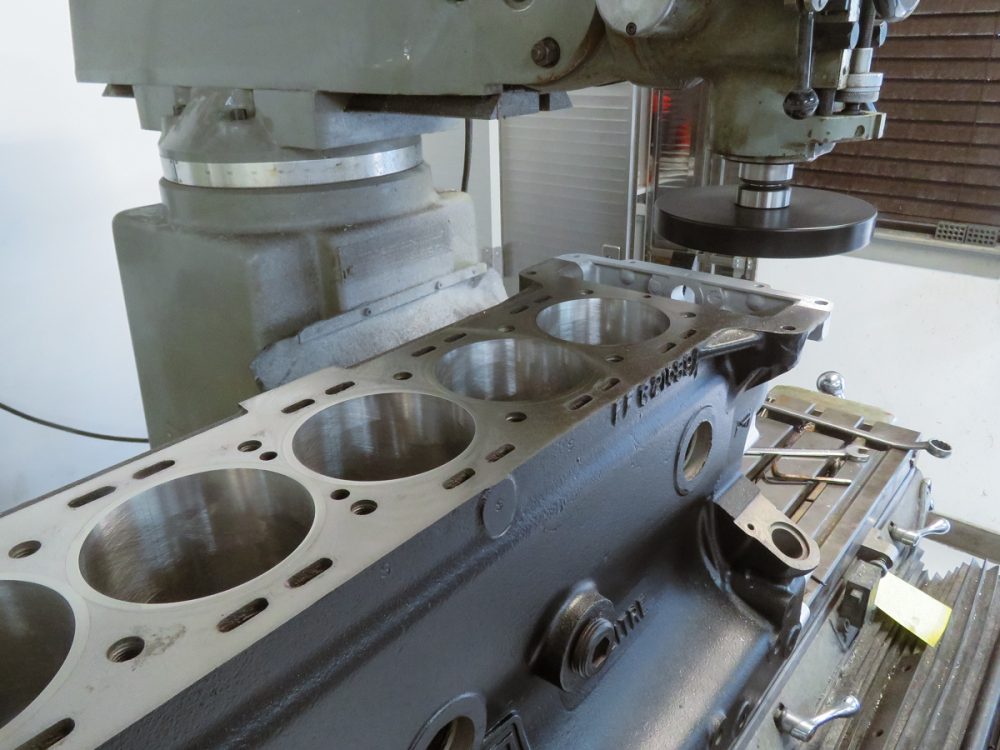

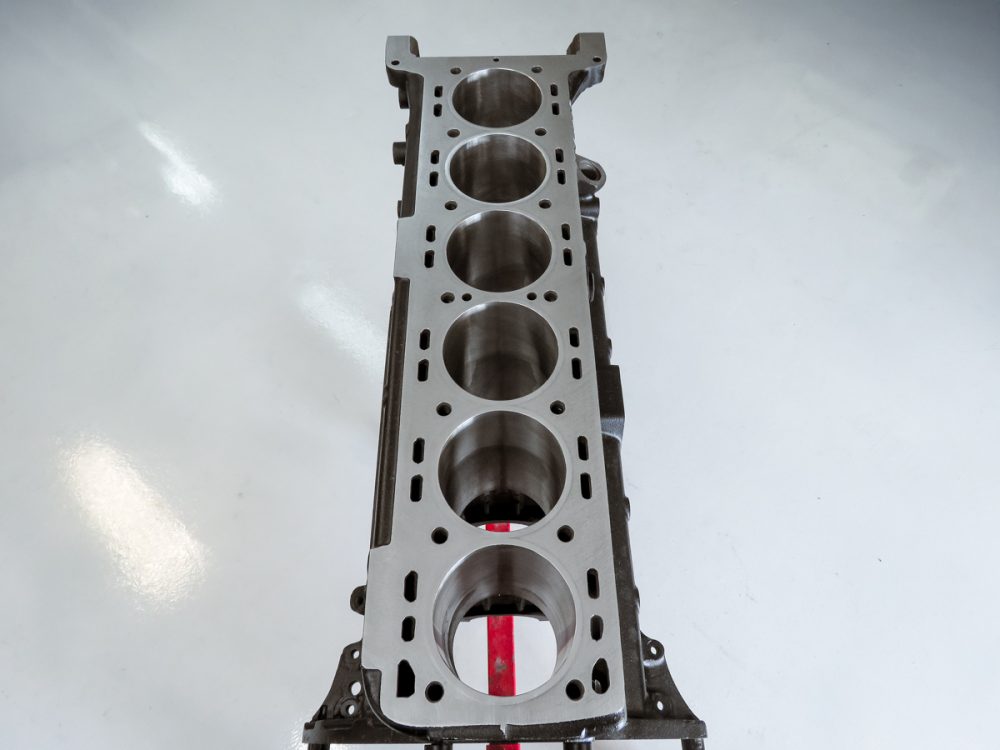

Surface sleeves flat with deck

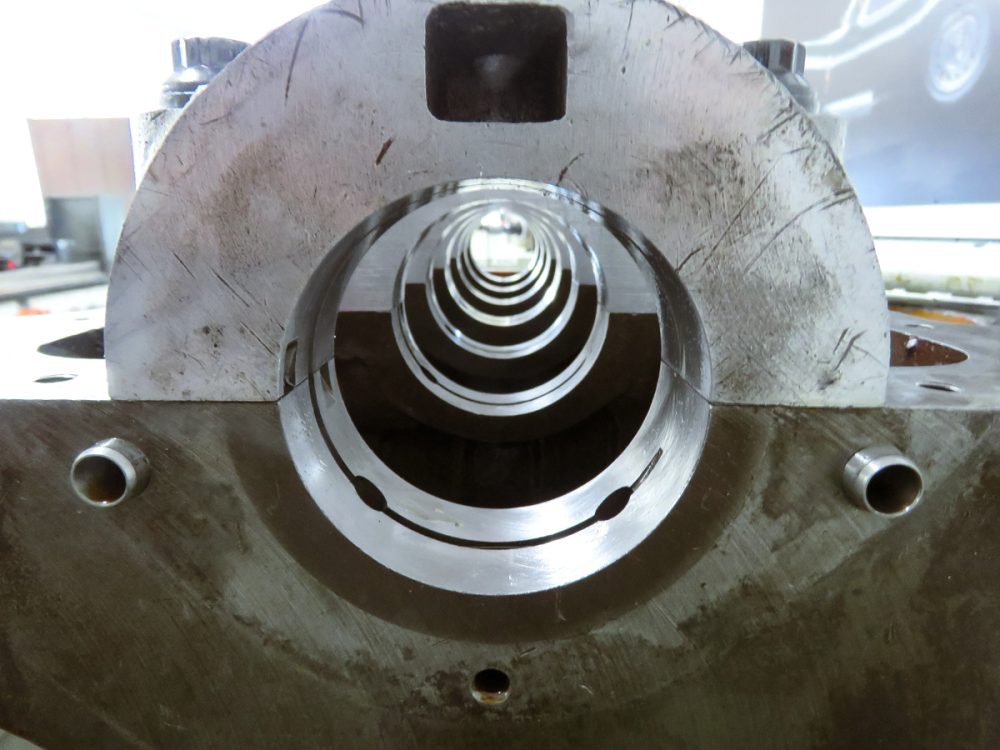

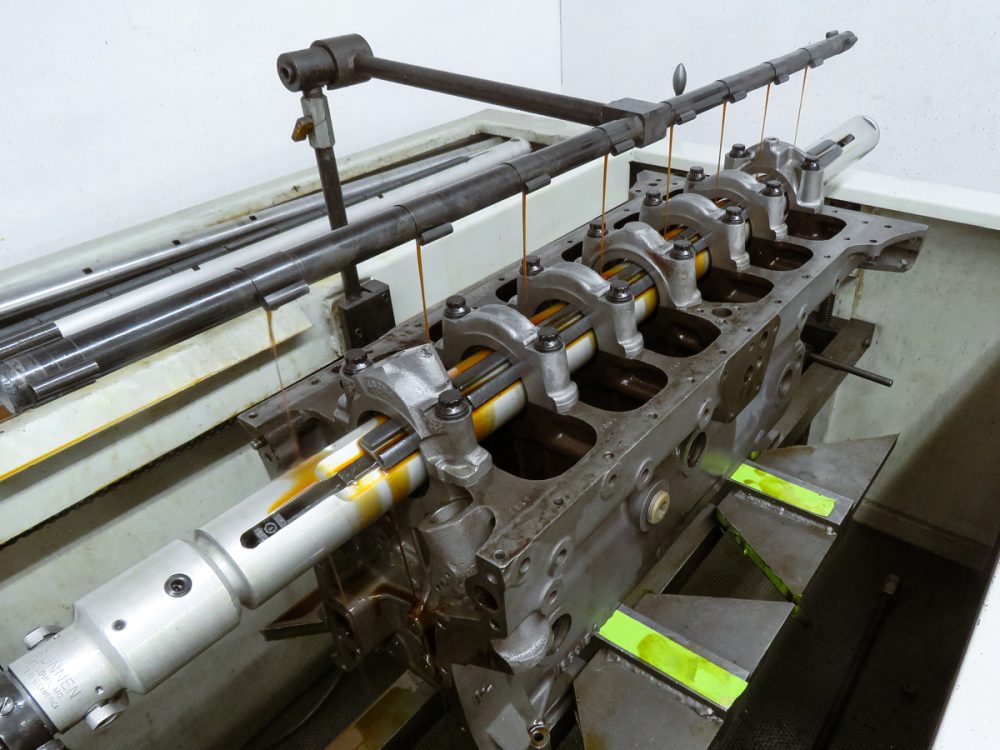

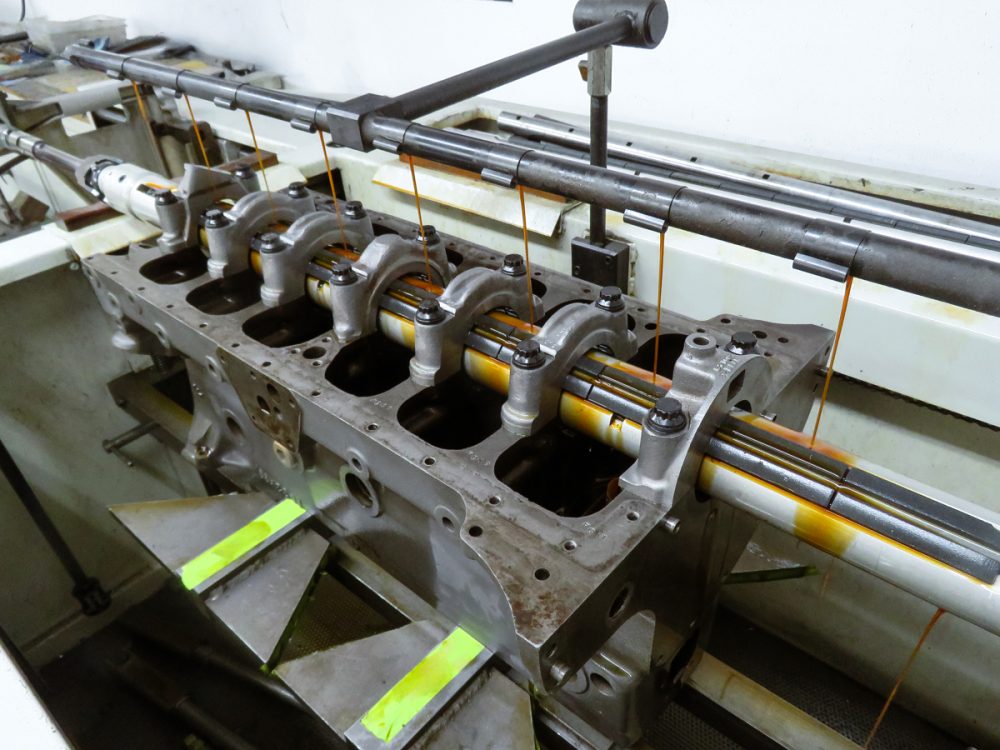

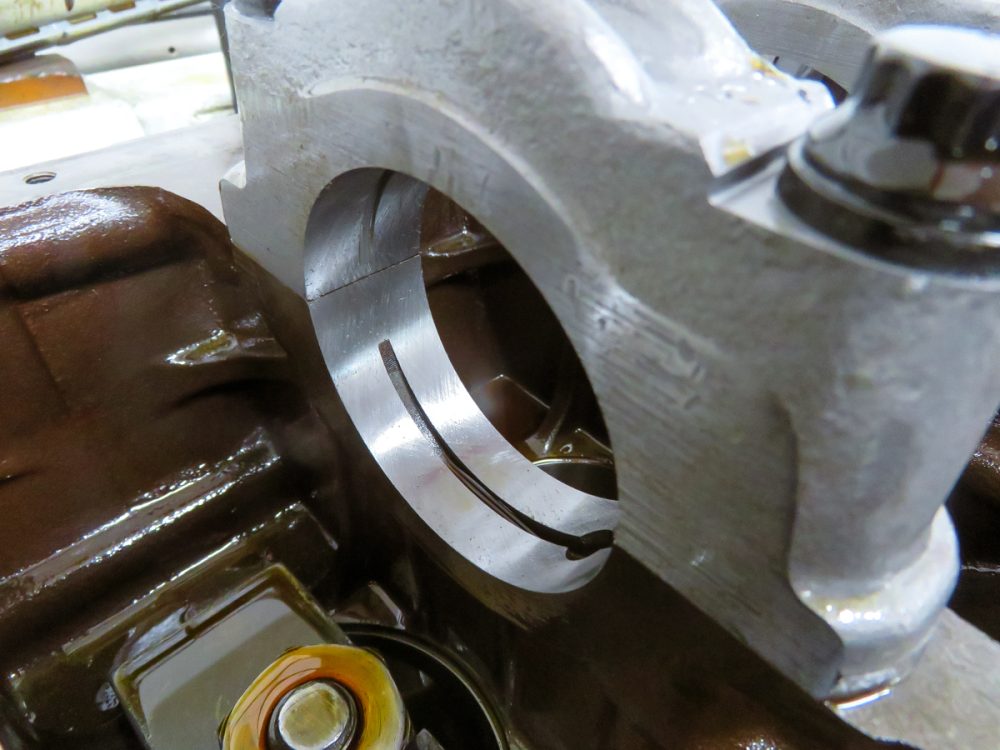

Crank line hone

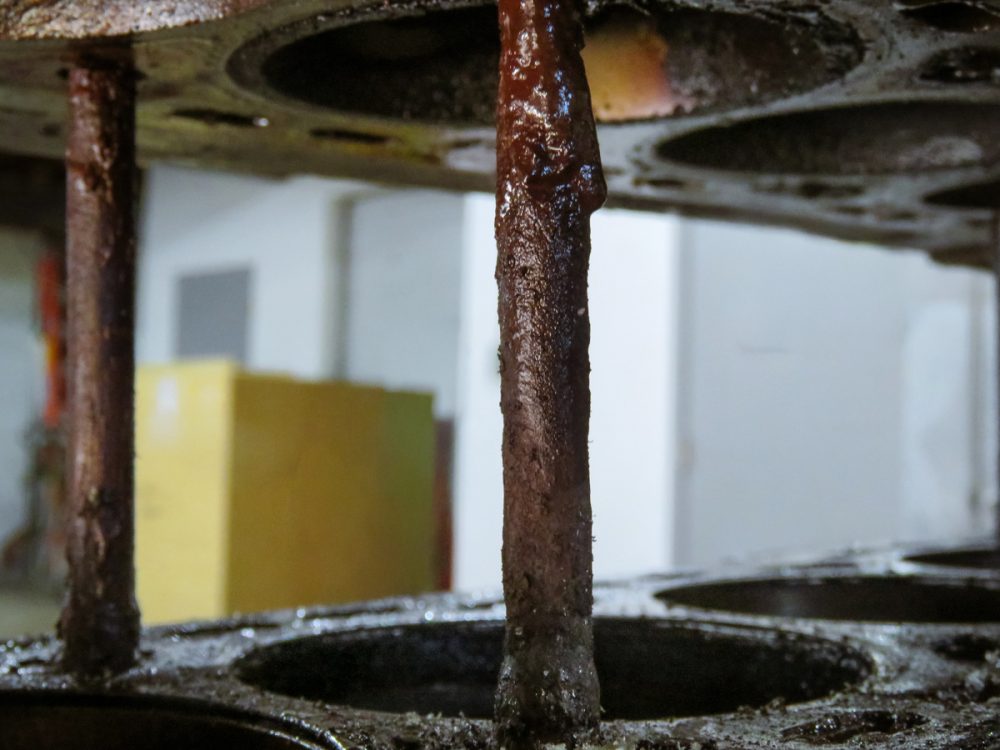

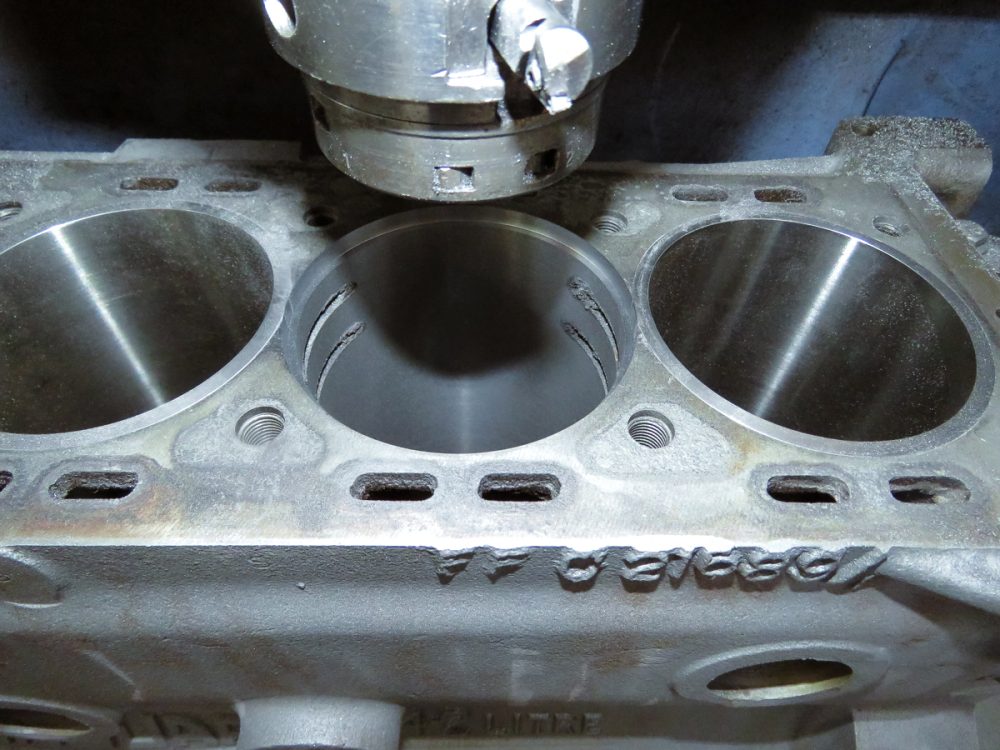

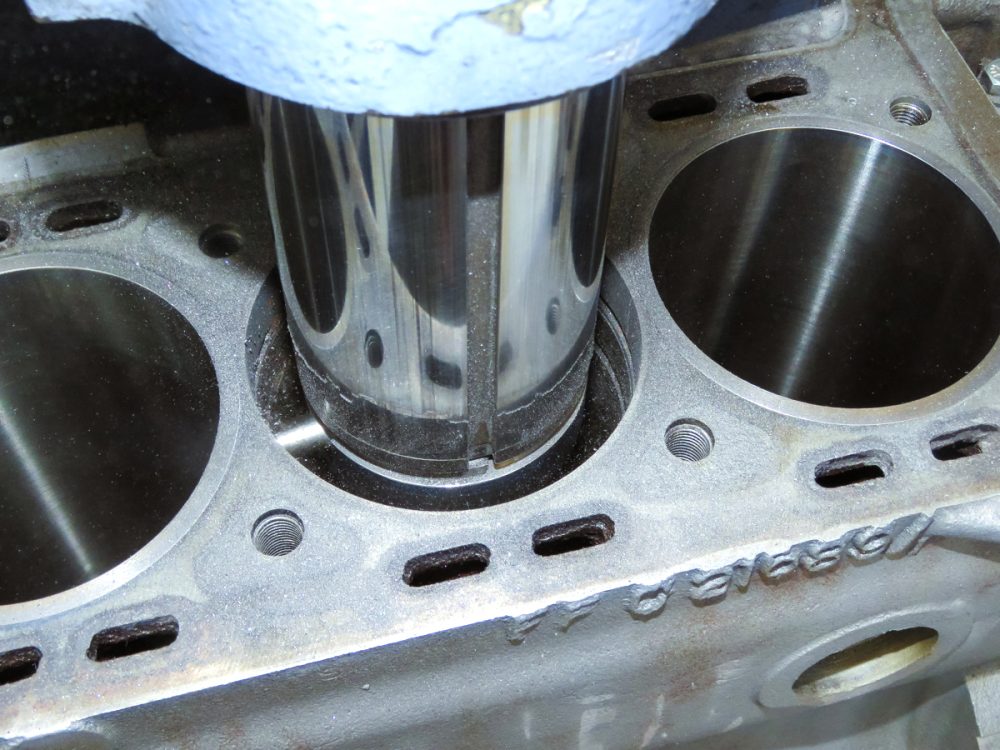

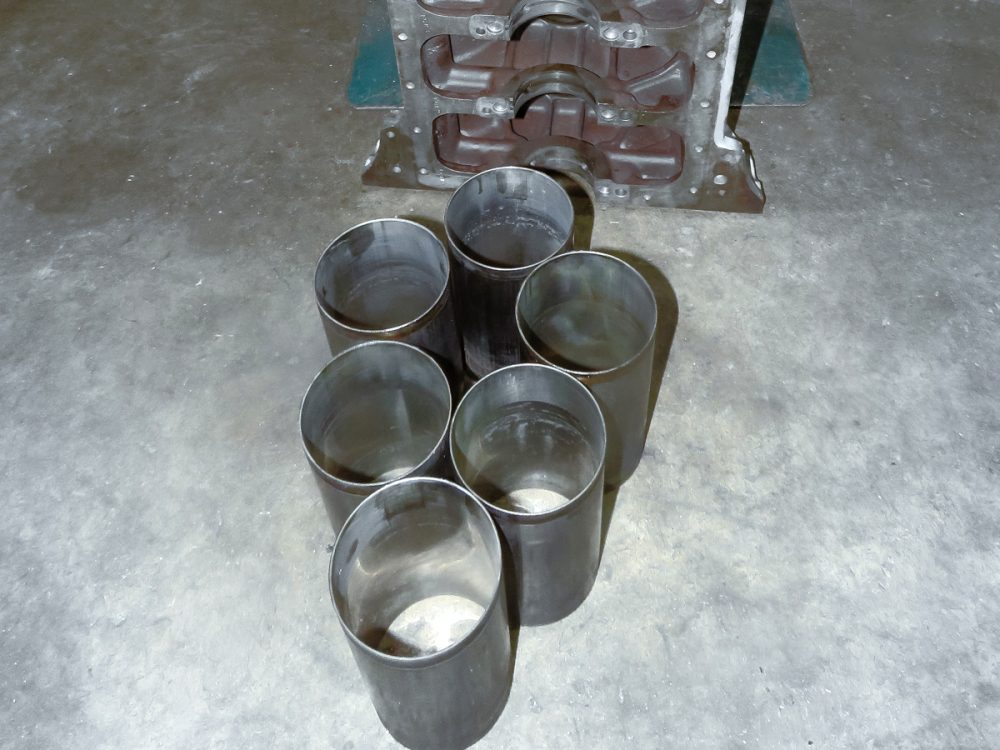

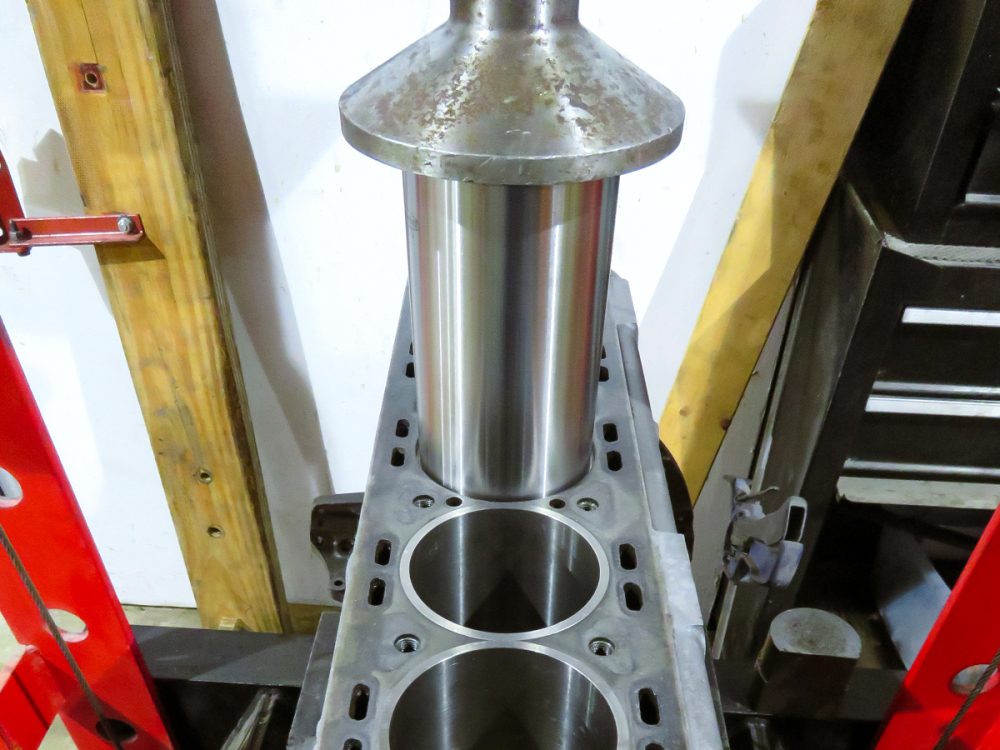

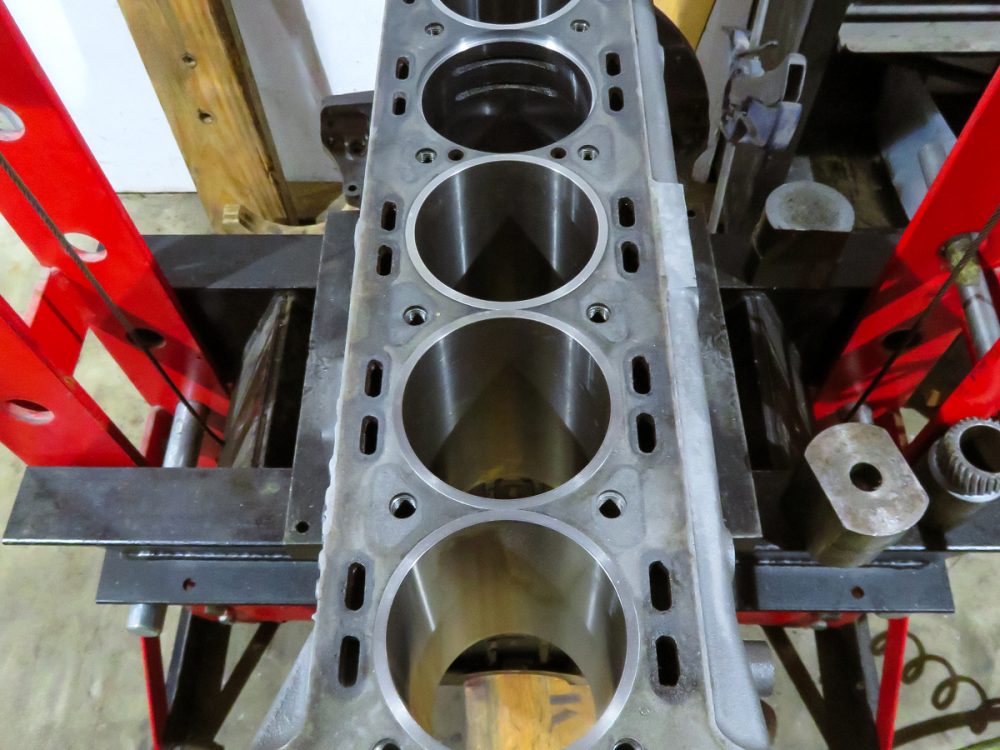

Old sleeves removed Bore for new sleeves Hone block New sleeves installed

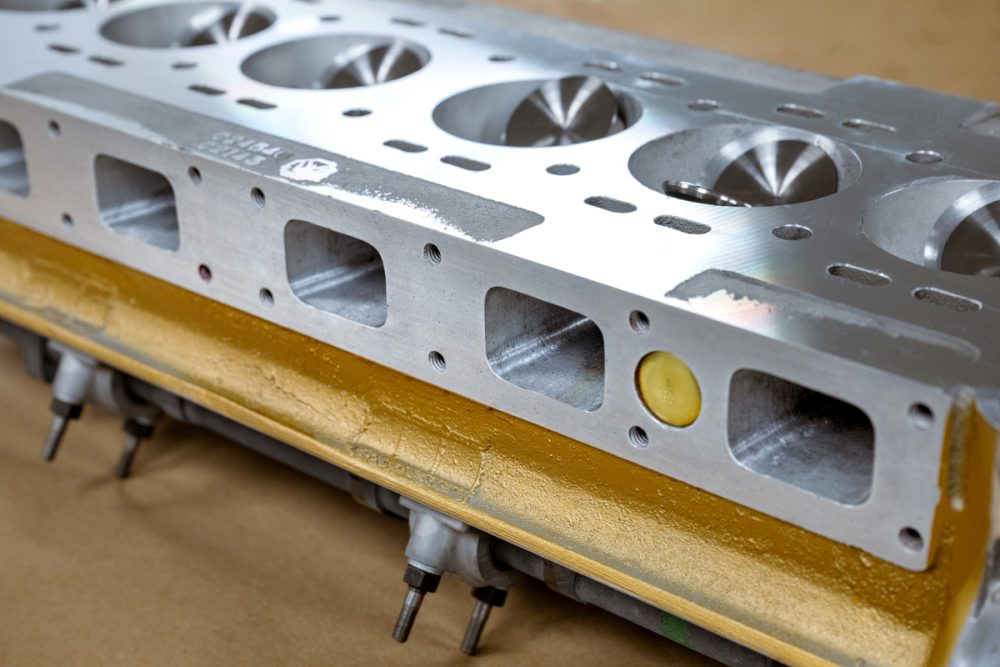

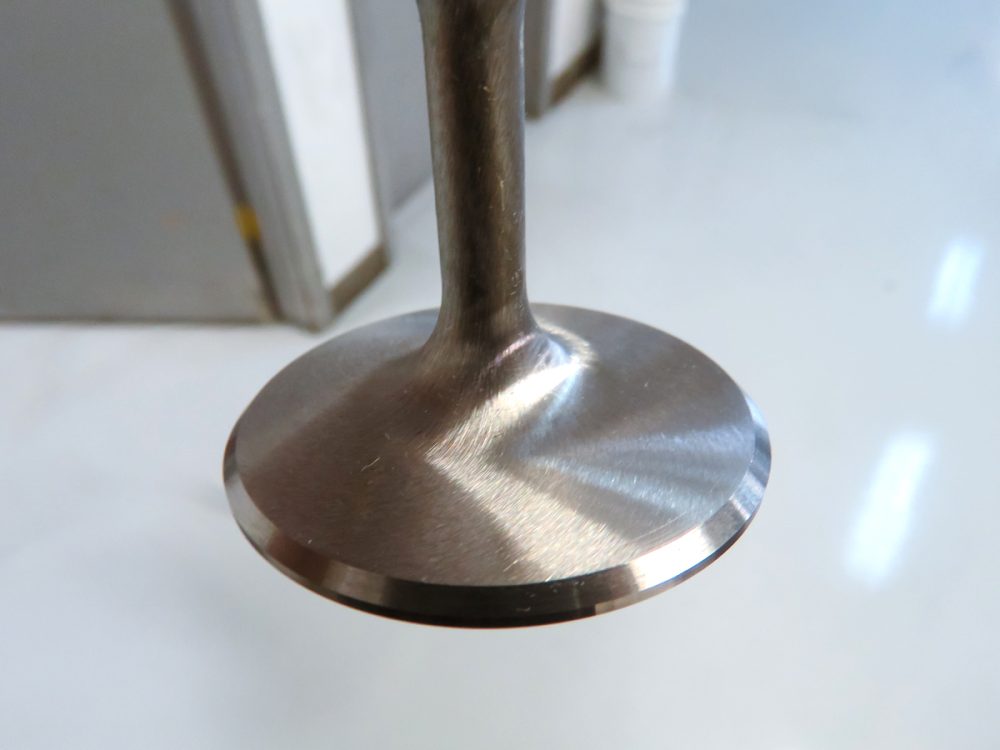

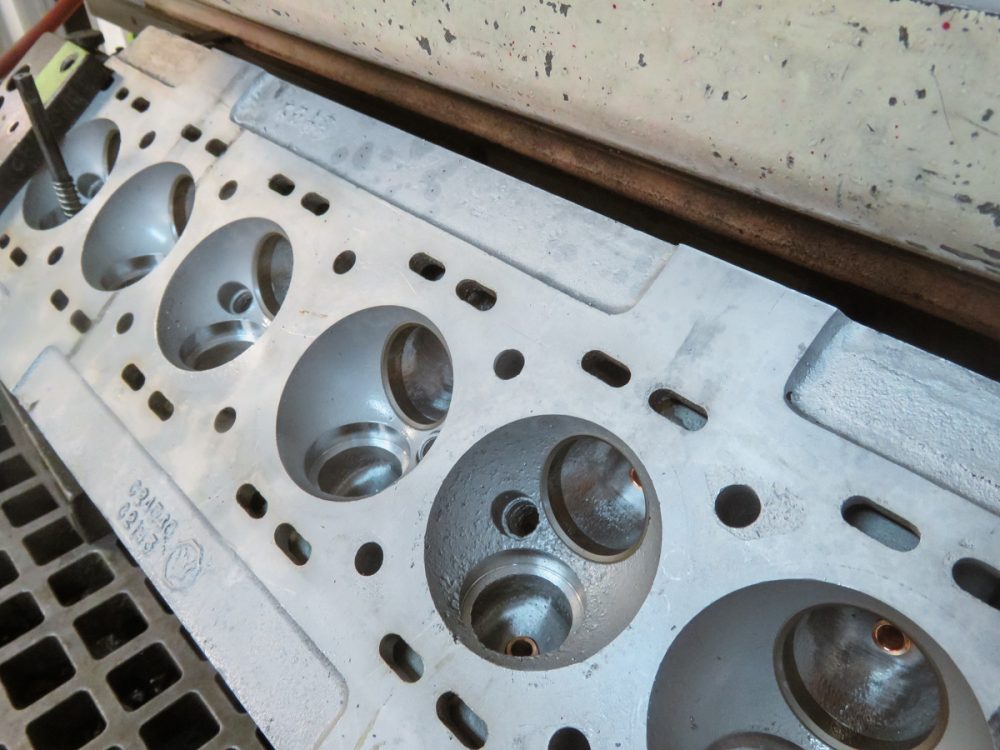

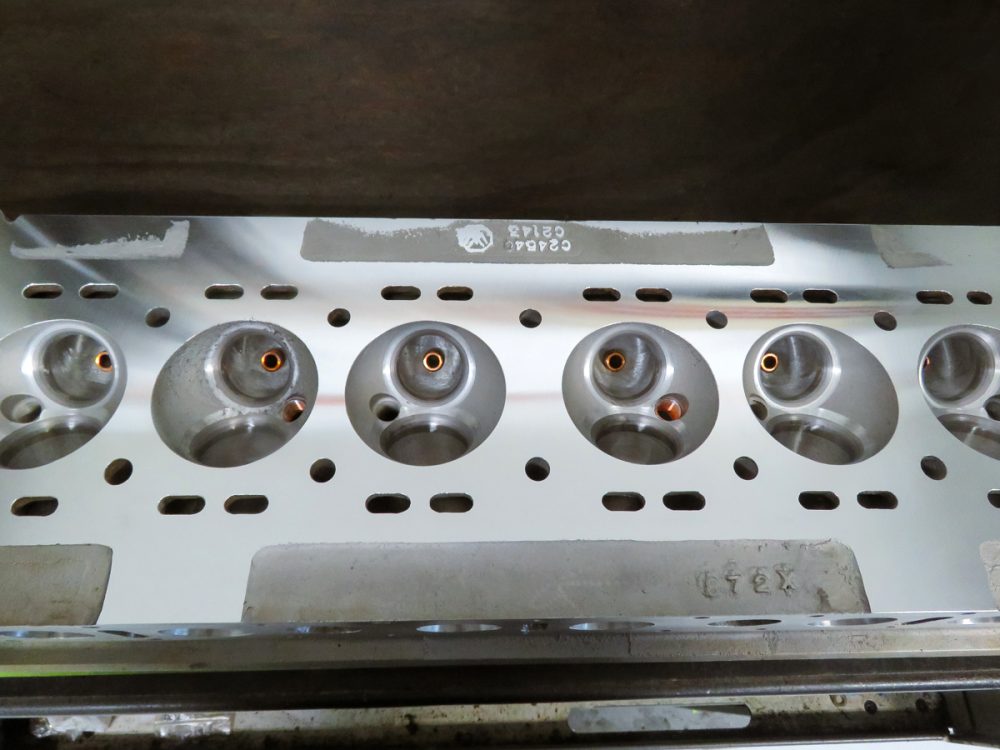

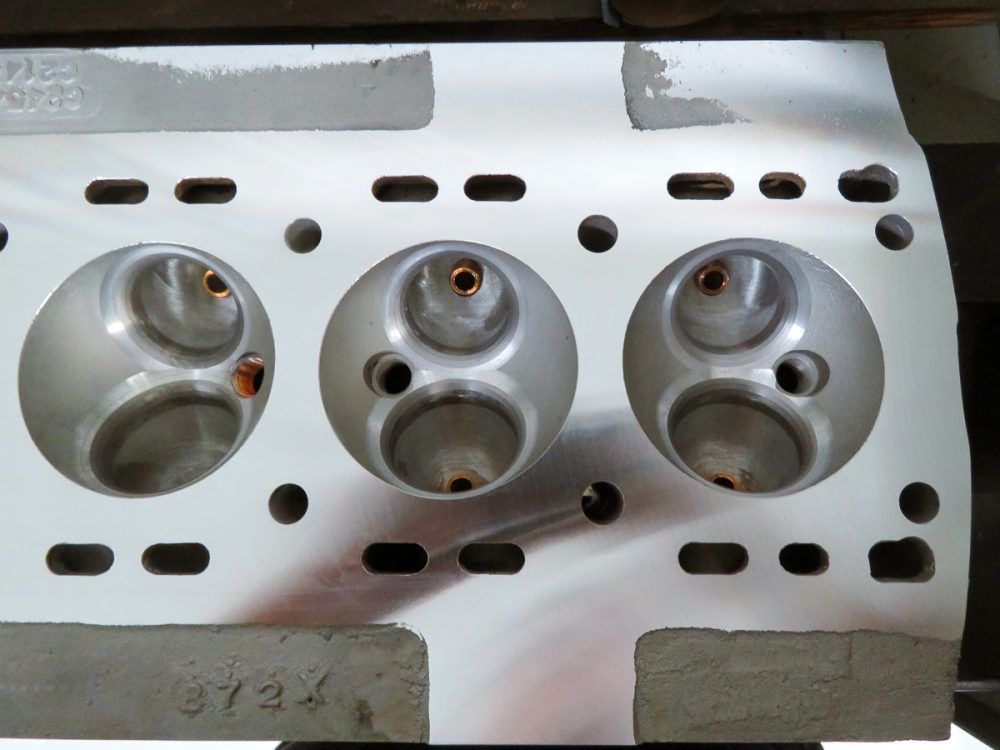

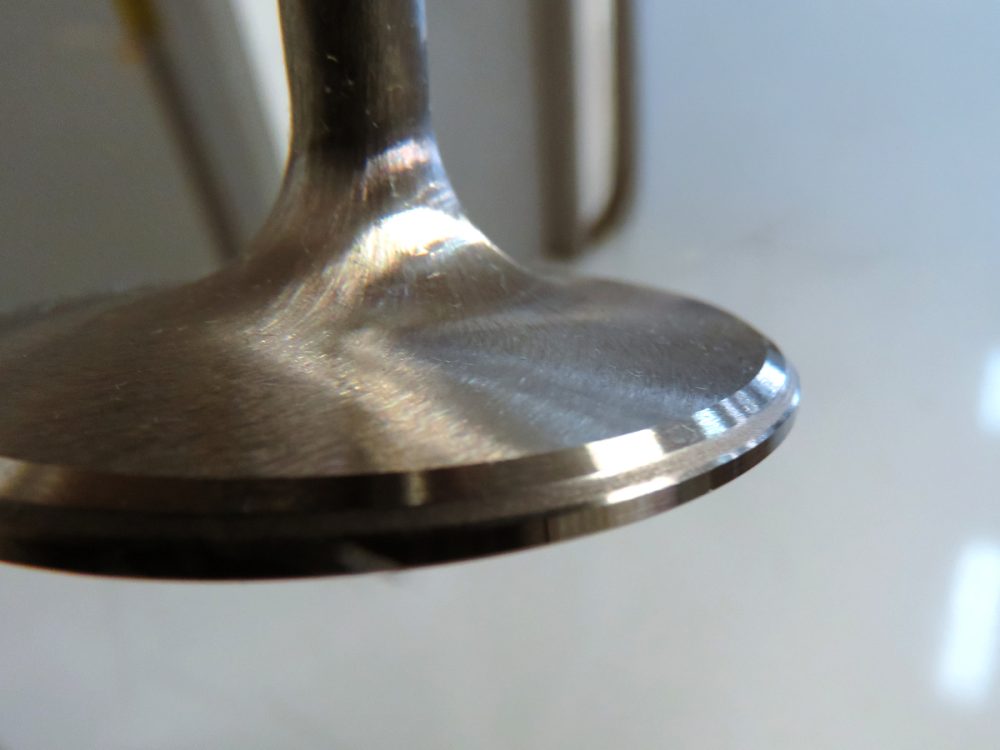

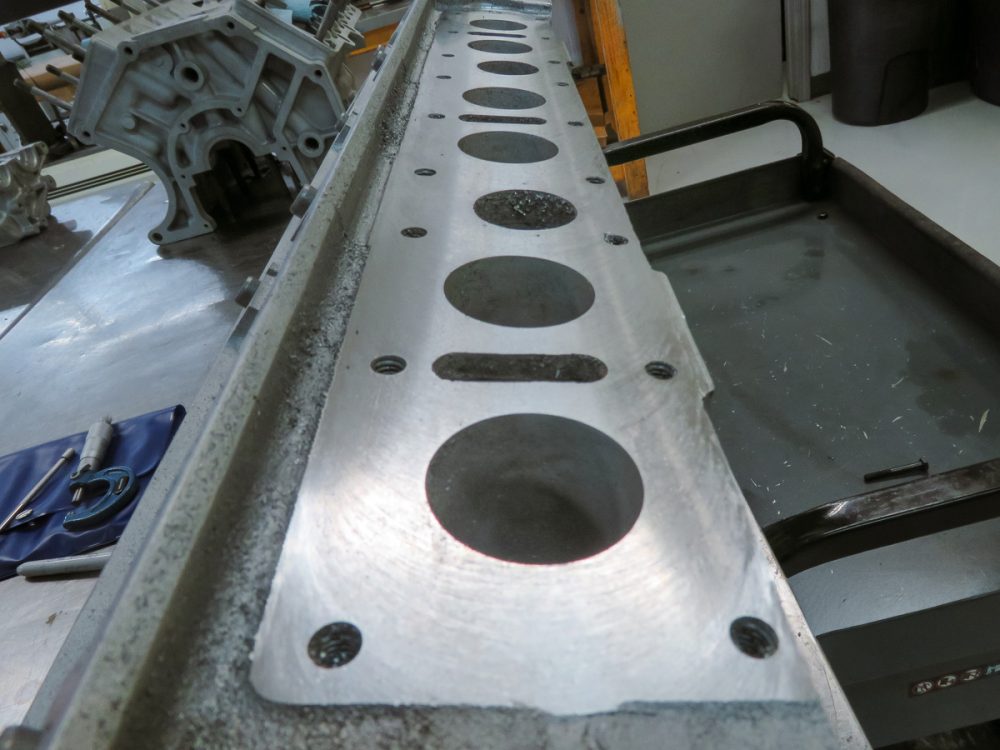

Surface cylinder head Back cut intake valves

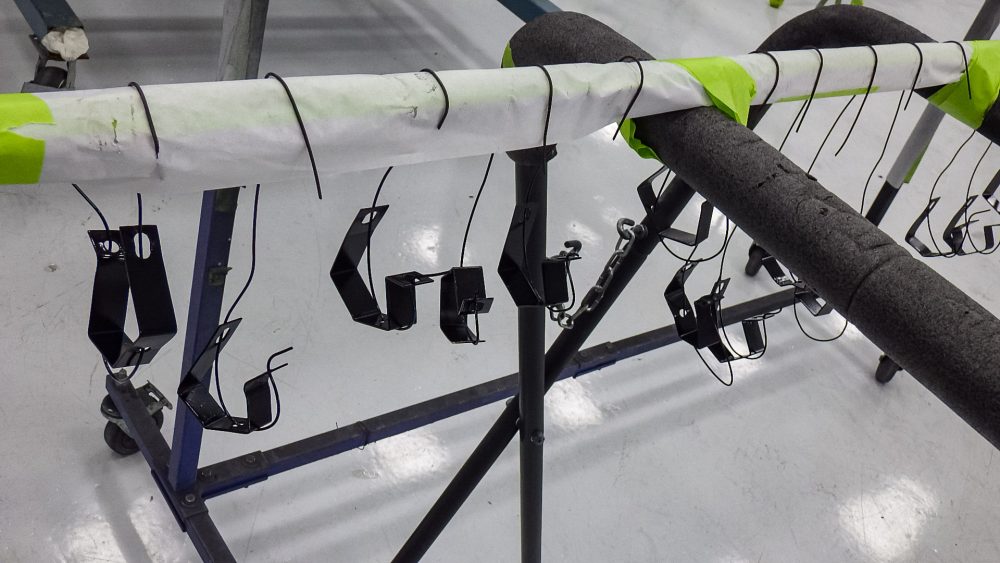

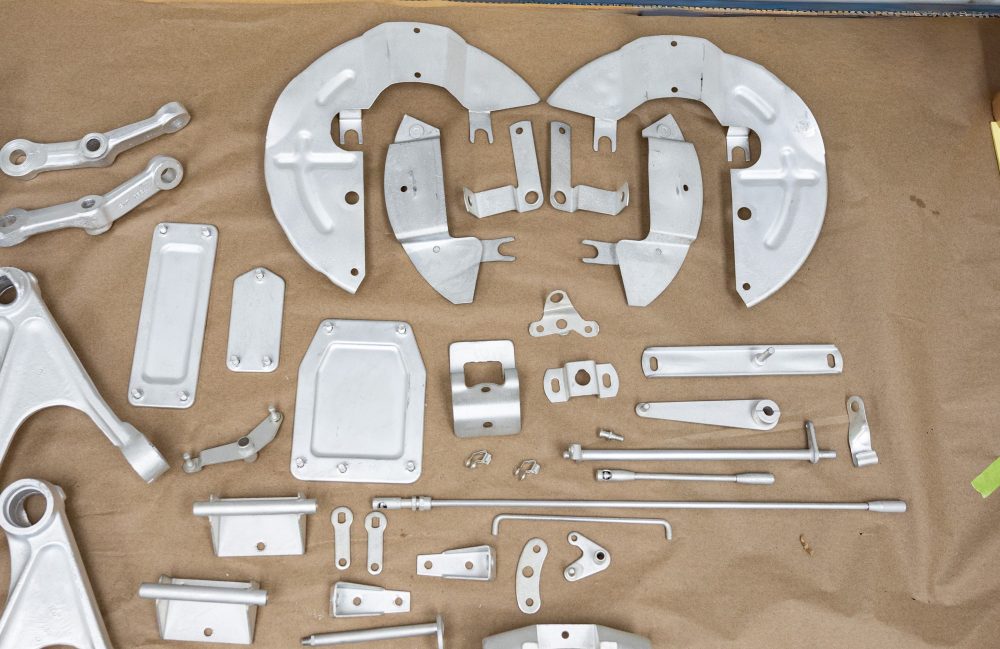

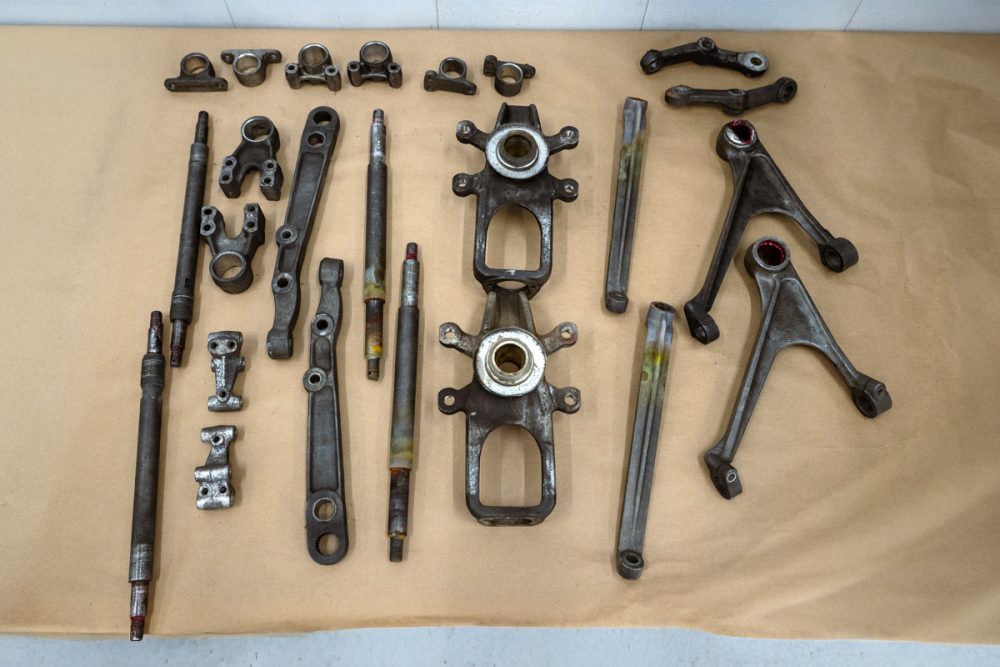

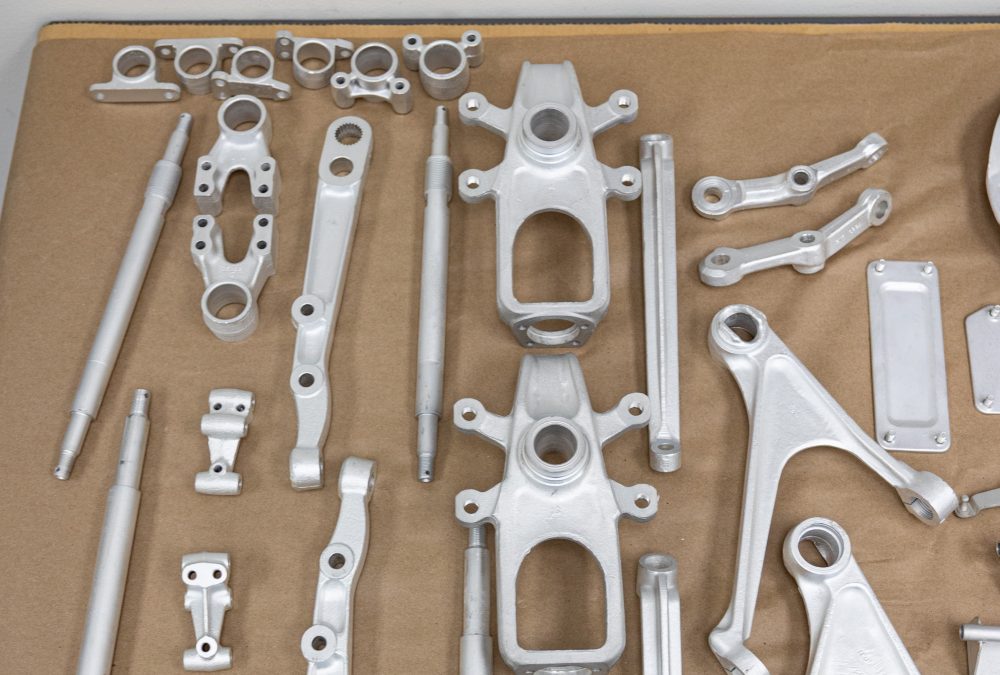

Suspension removed for plating

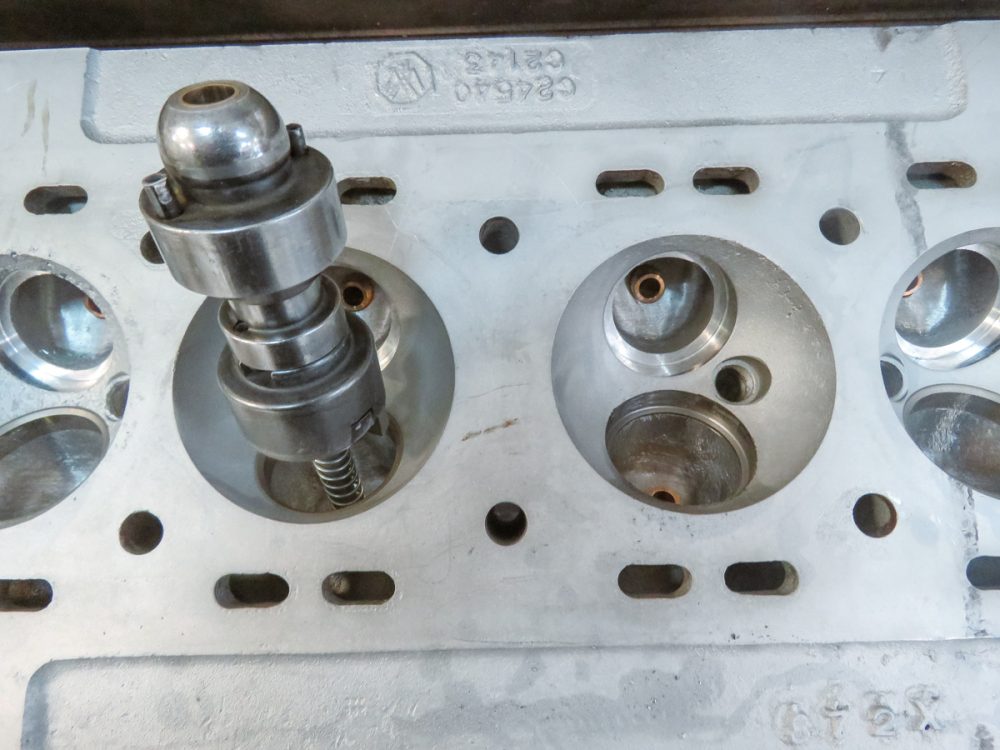

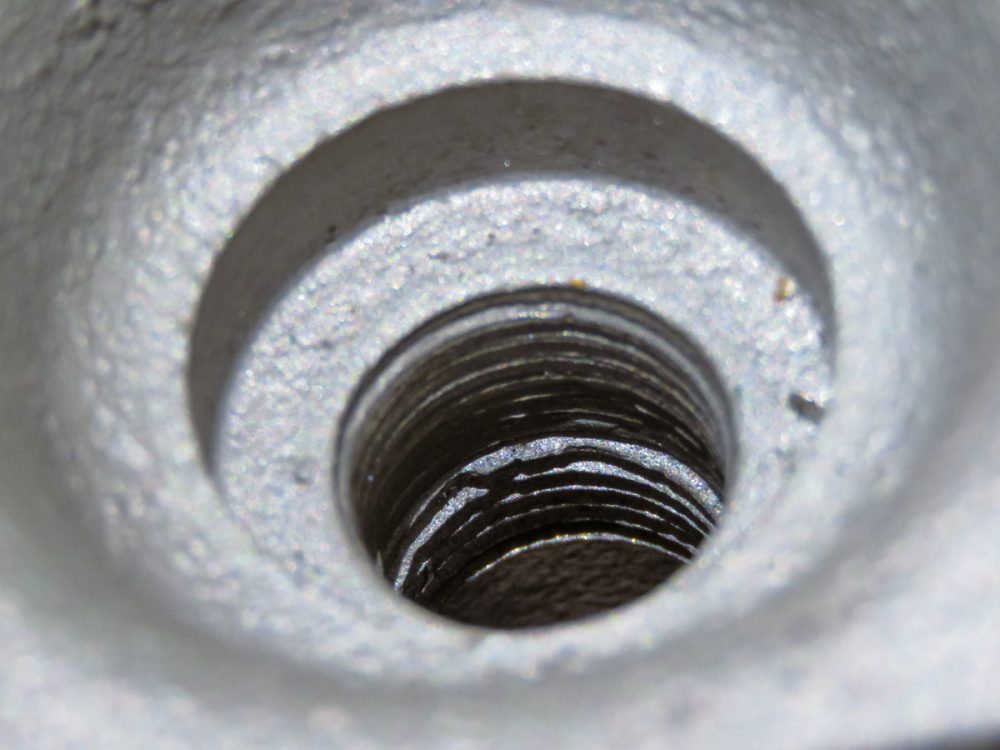

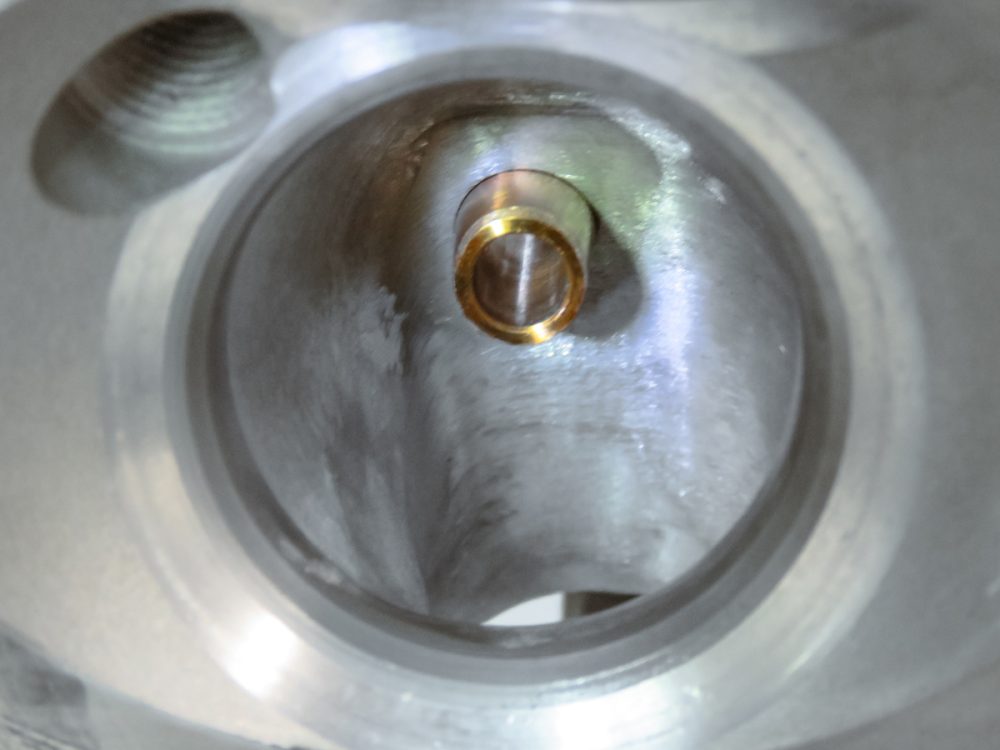

Bore and hand finish tappet guides Machine intake guides Install spark plug insert Intake ports ported and polished

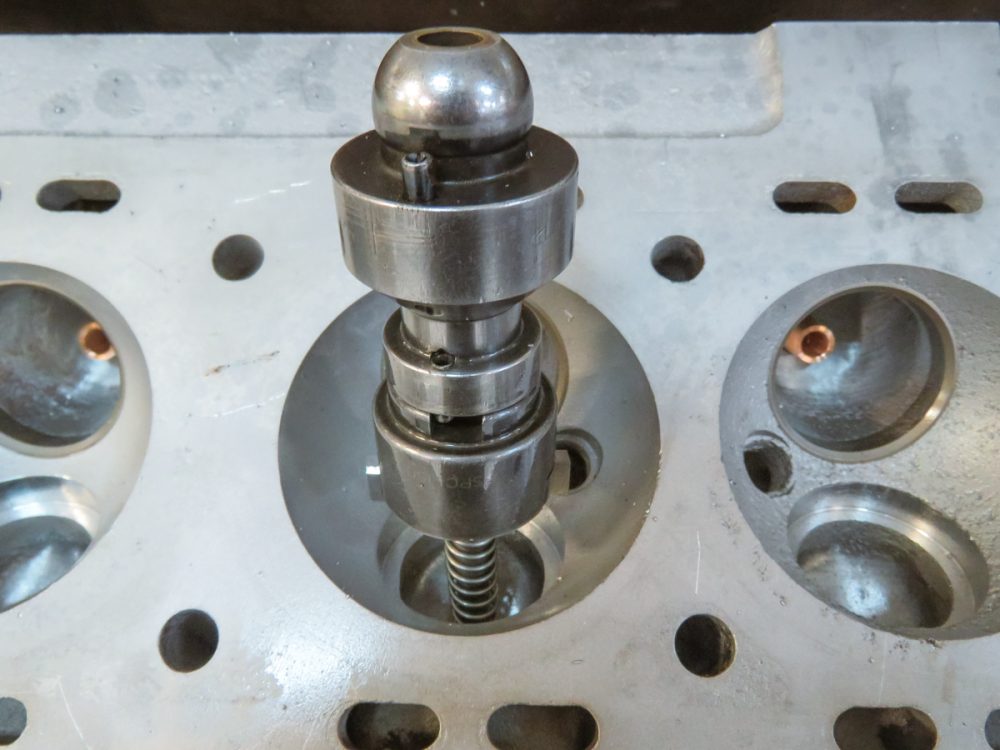

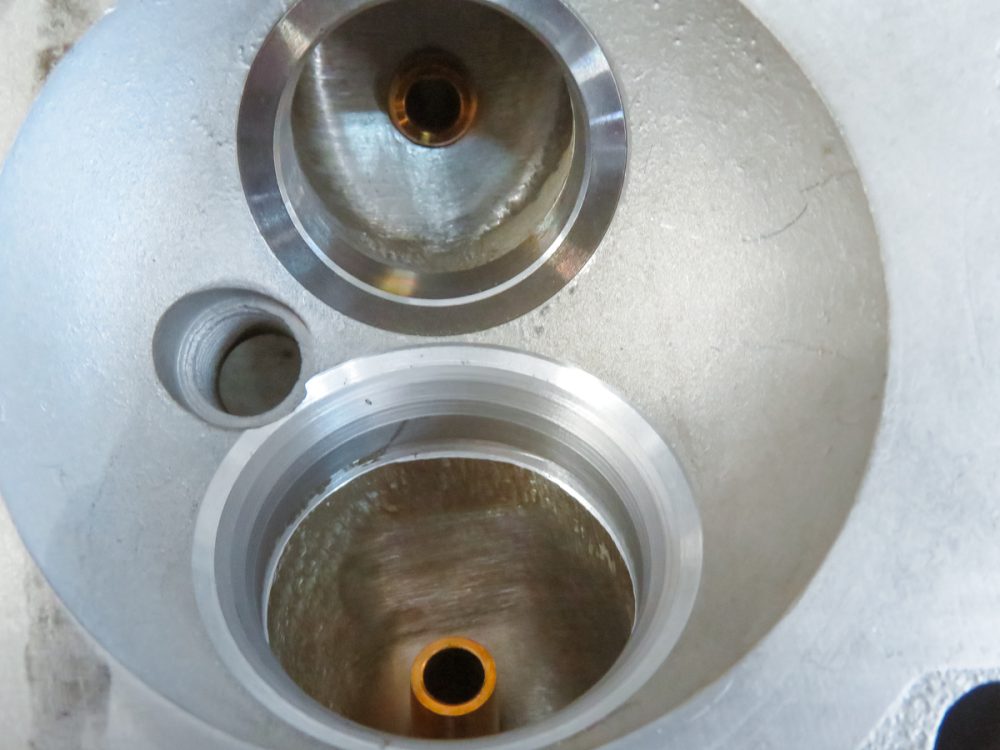

Machine exhaust valve jobs

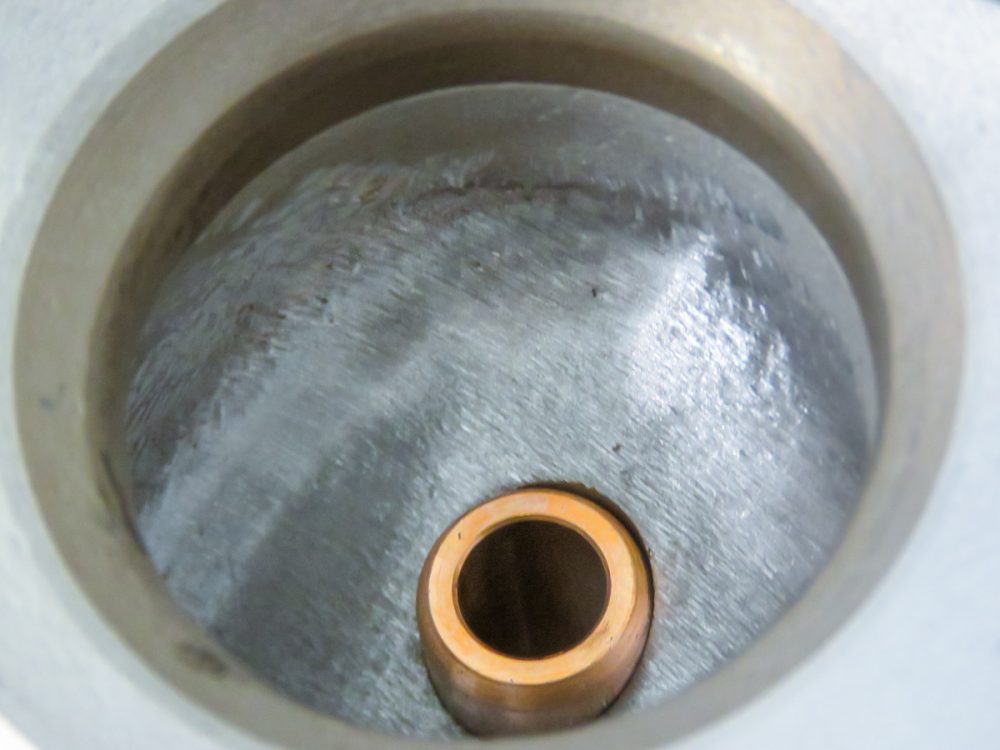

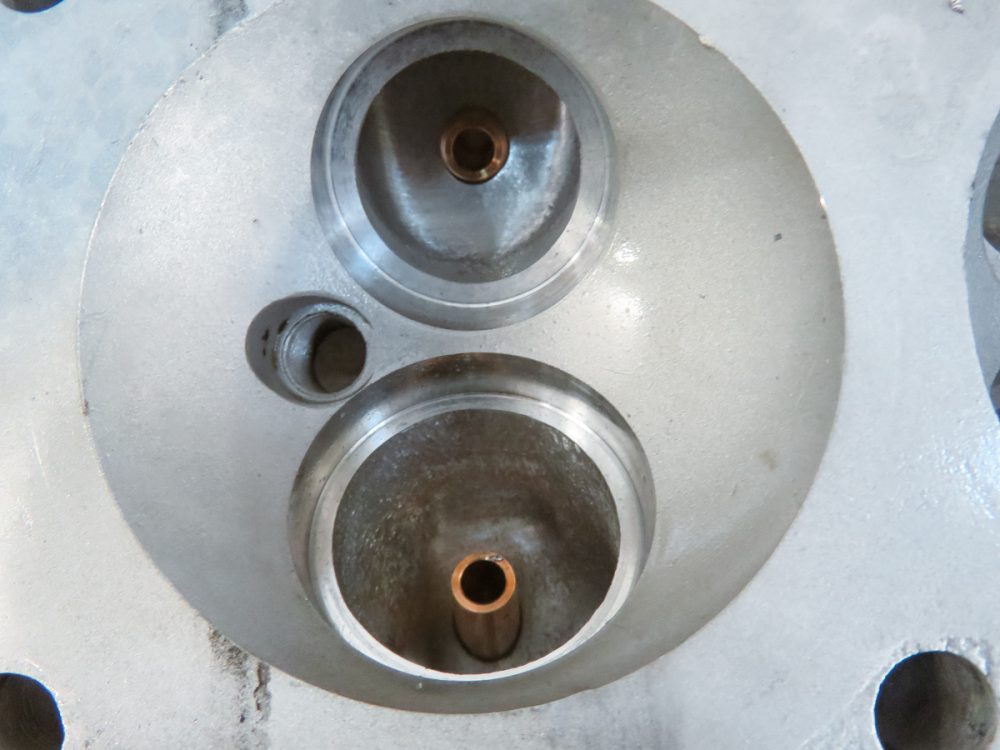

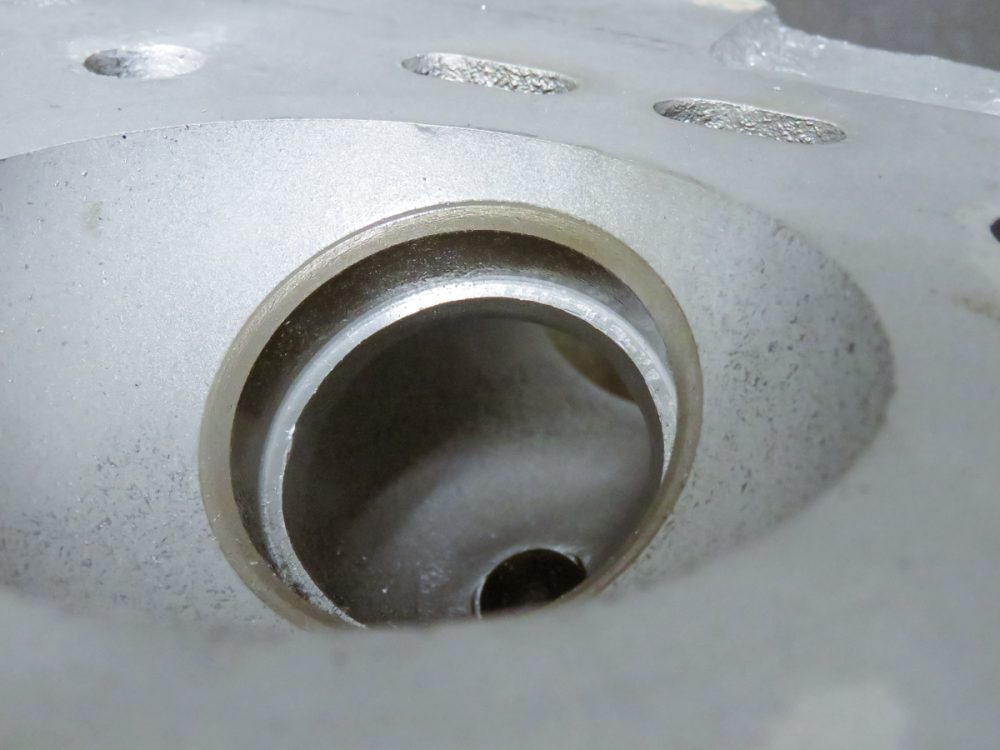

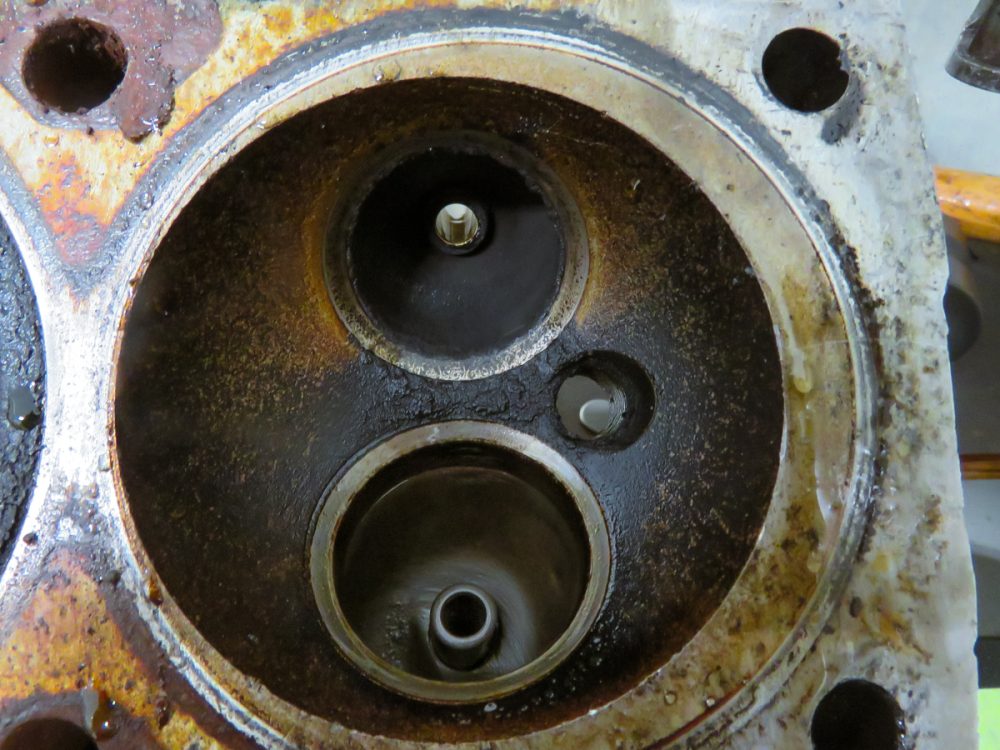

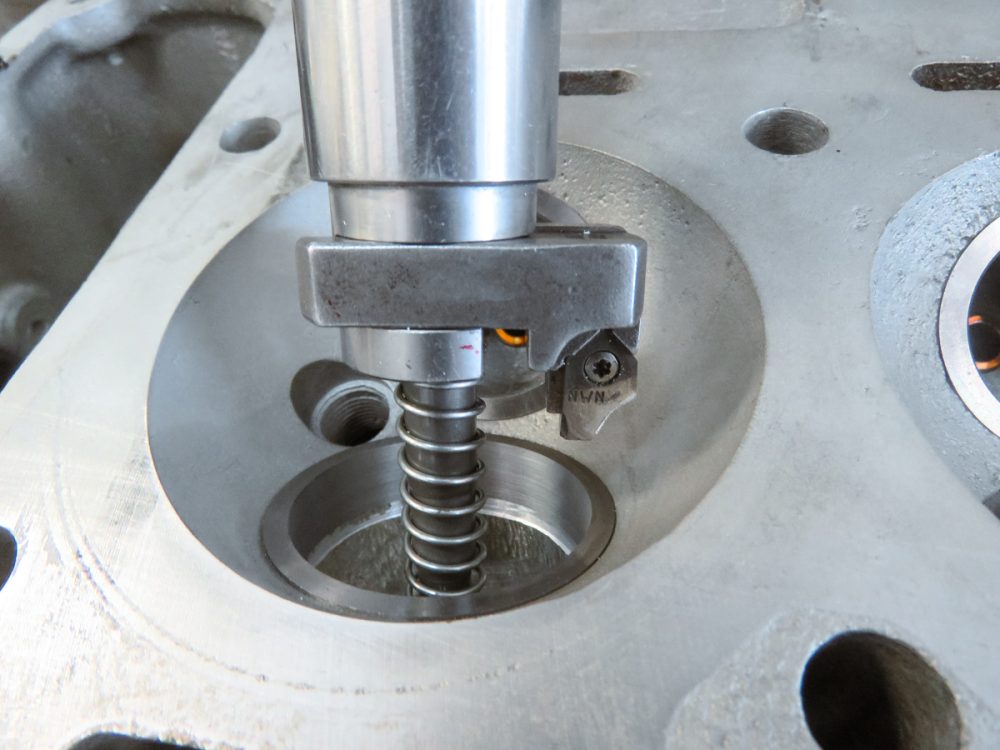

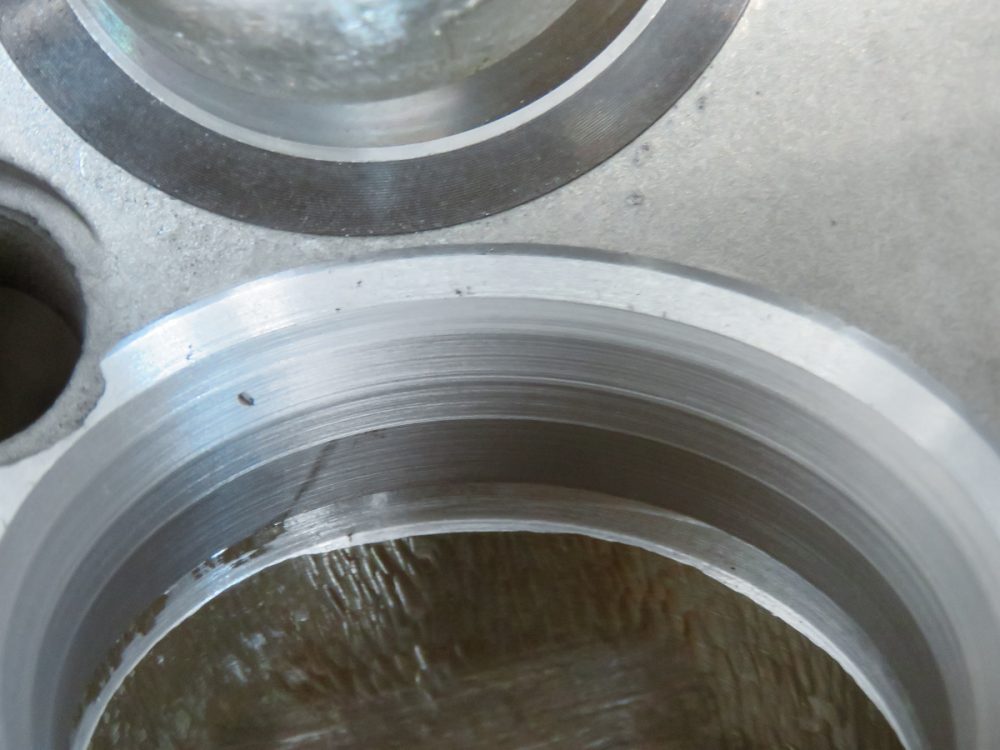

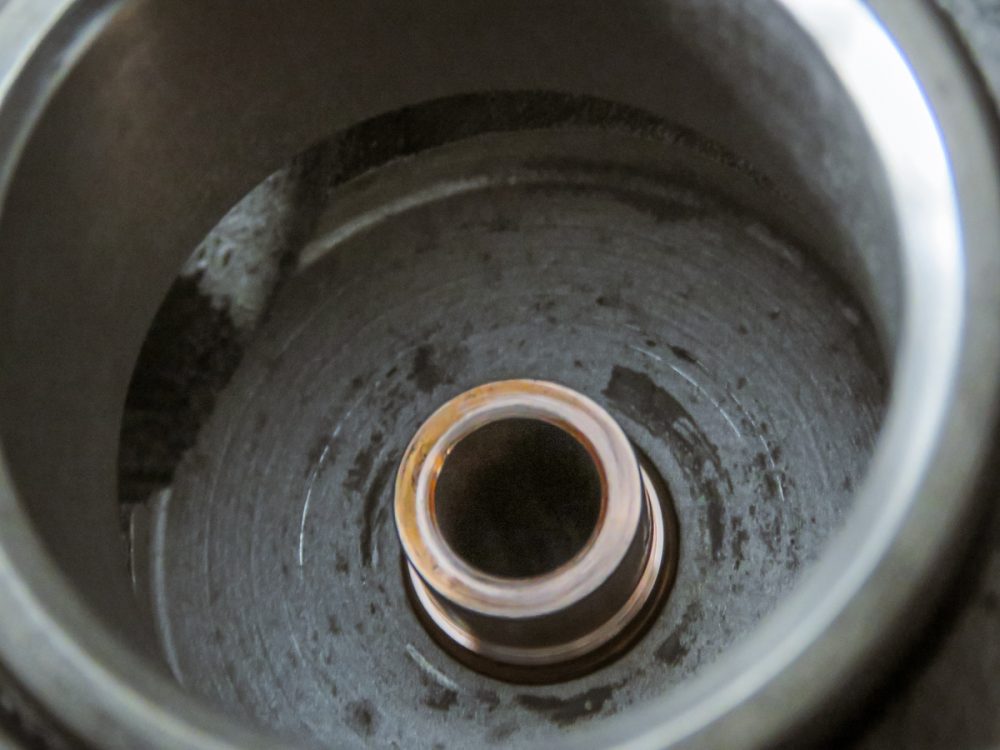

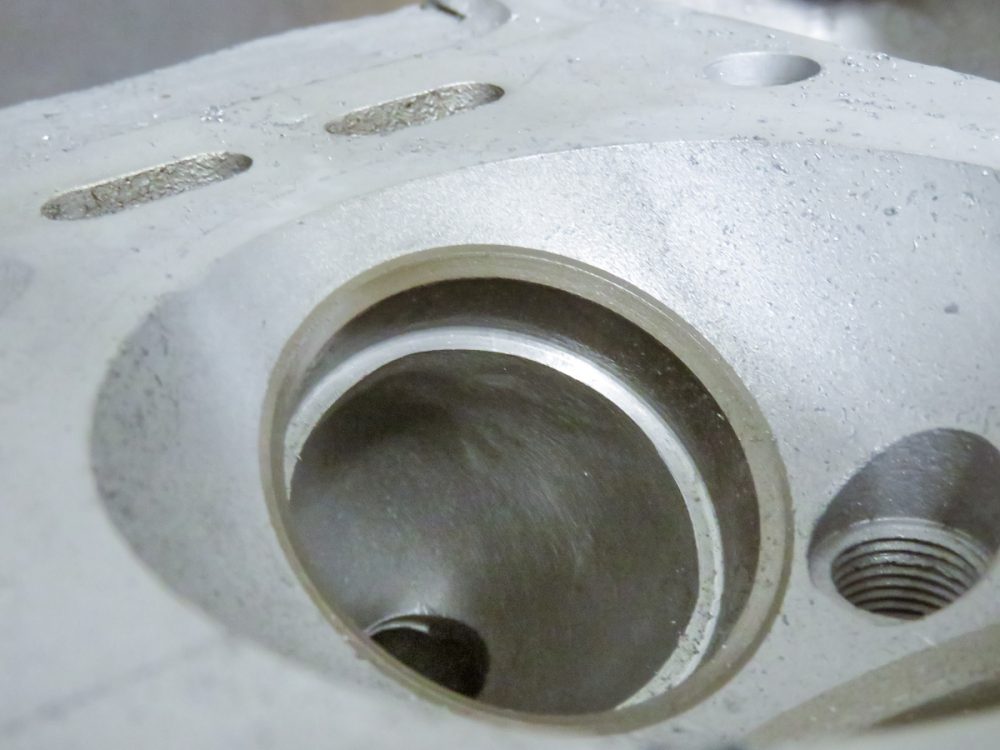

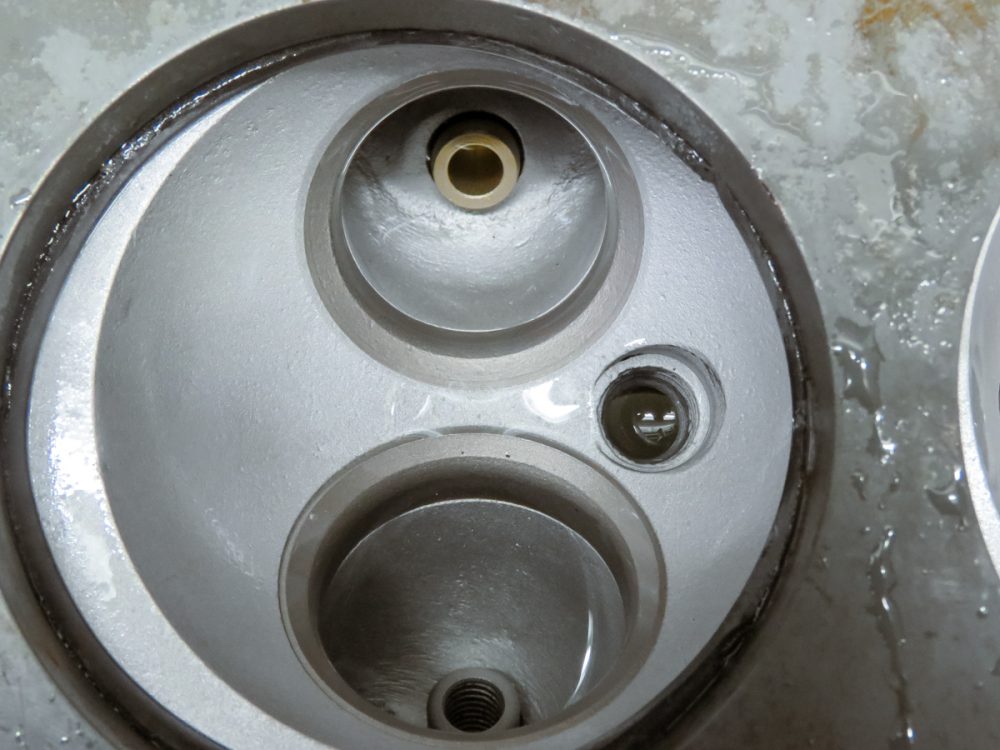

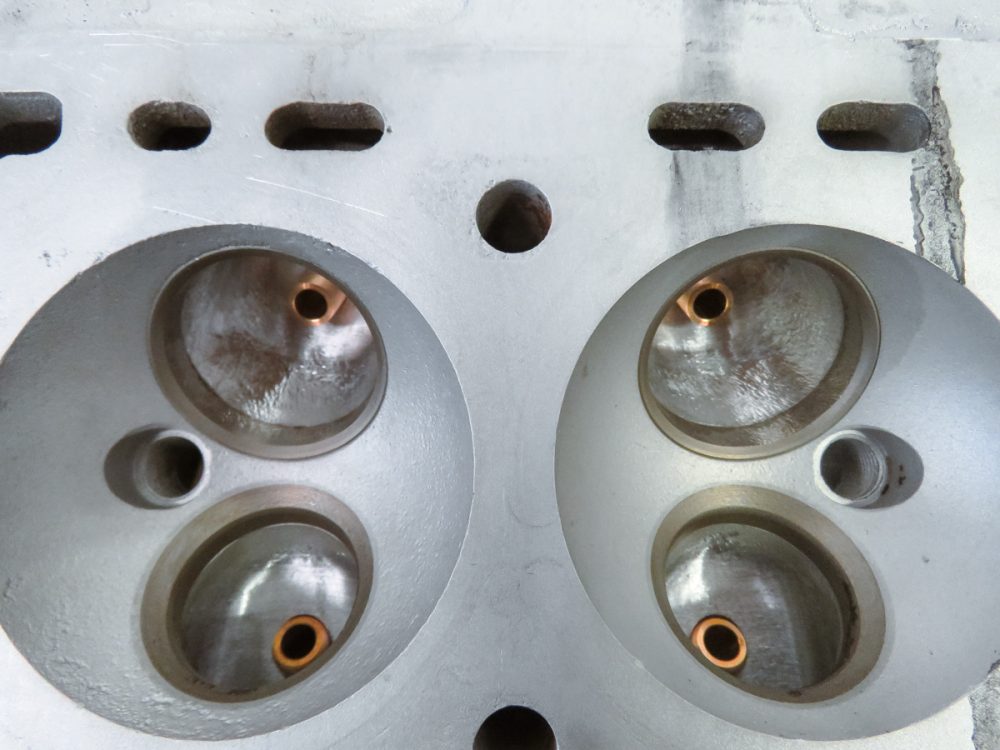

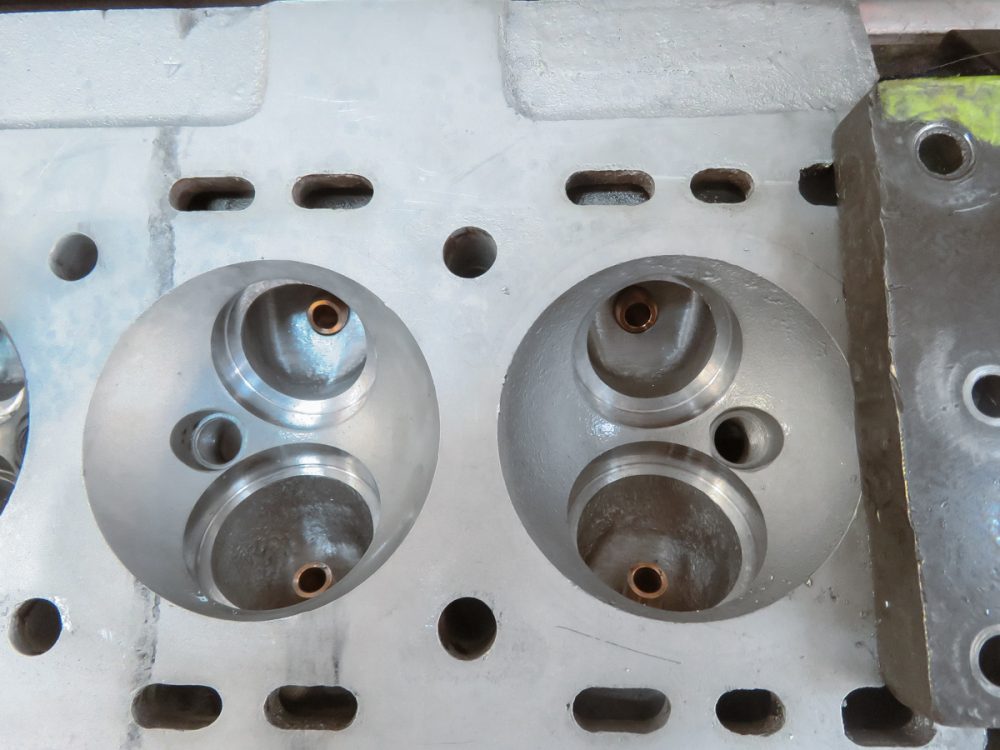

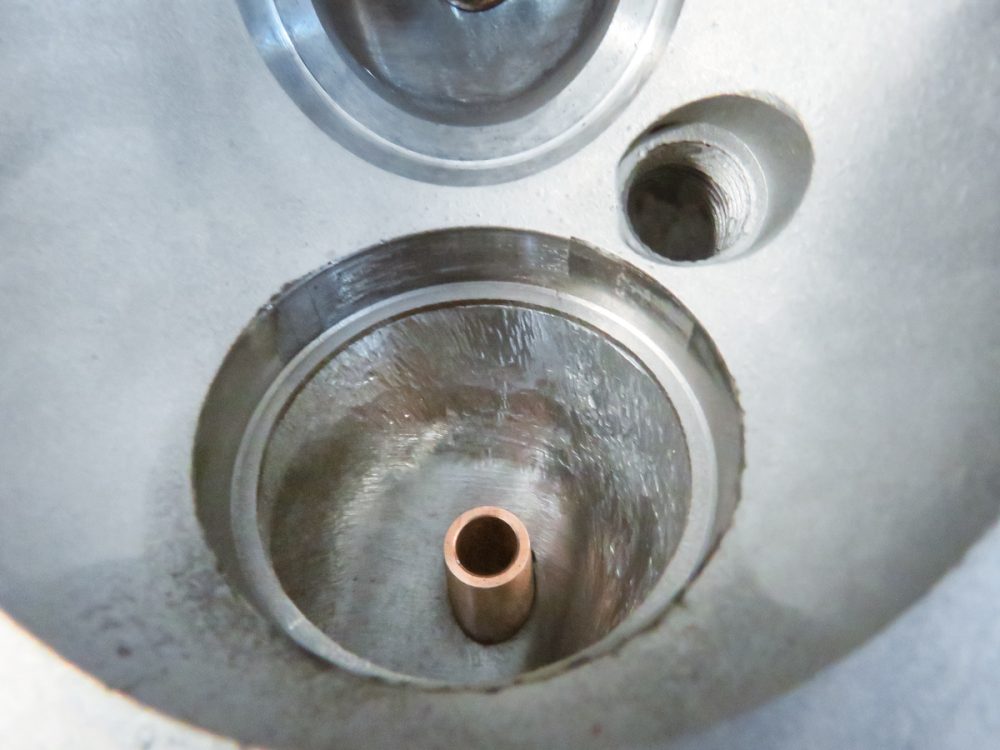

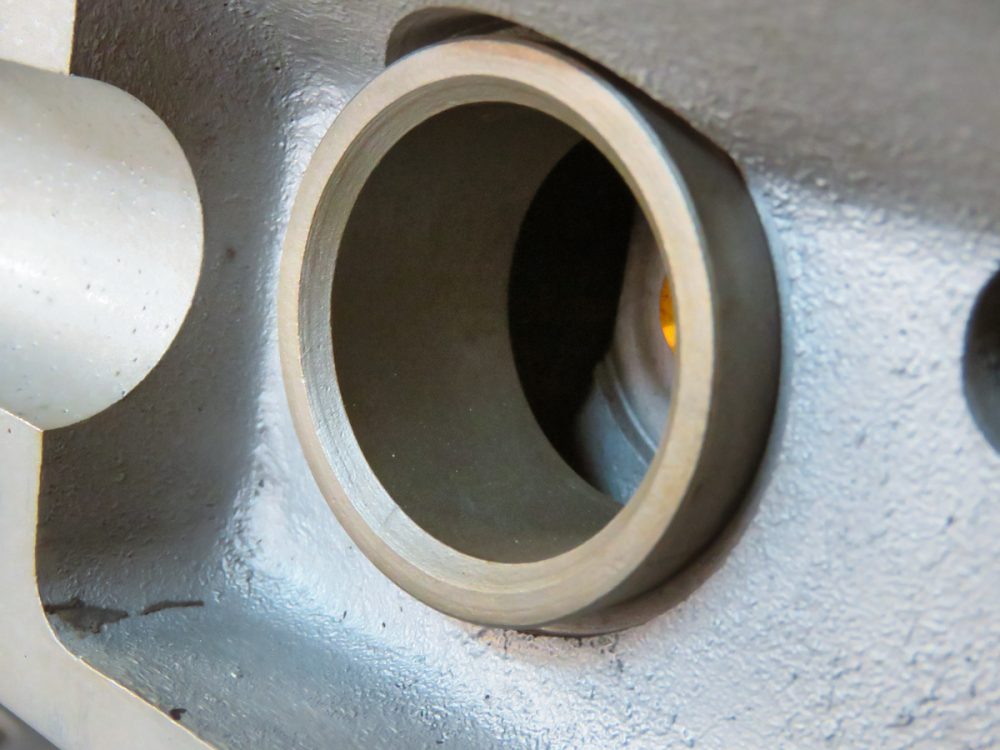

New valve guides installed Machine out old seats Counter bore for new seats

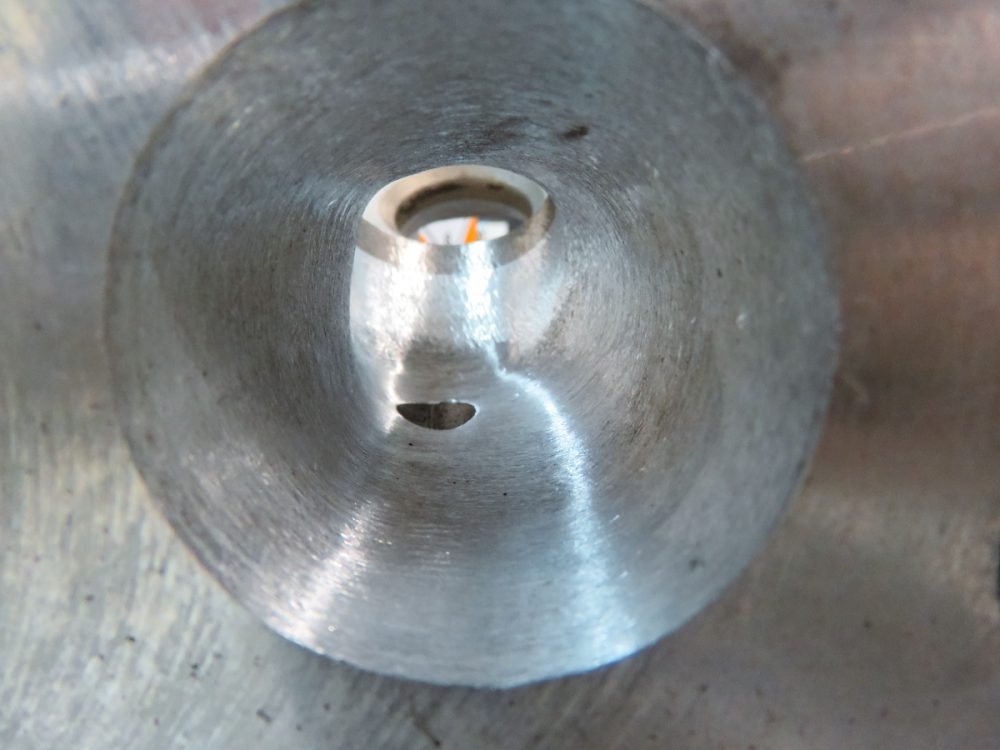

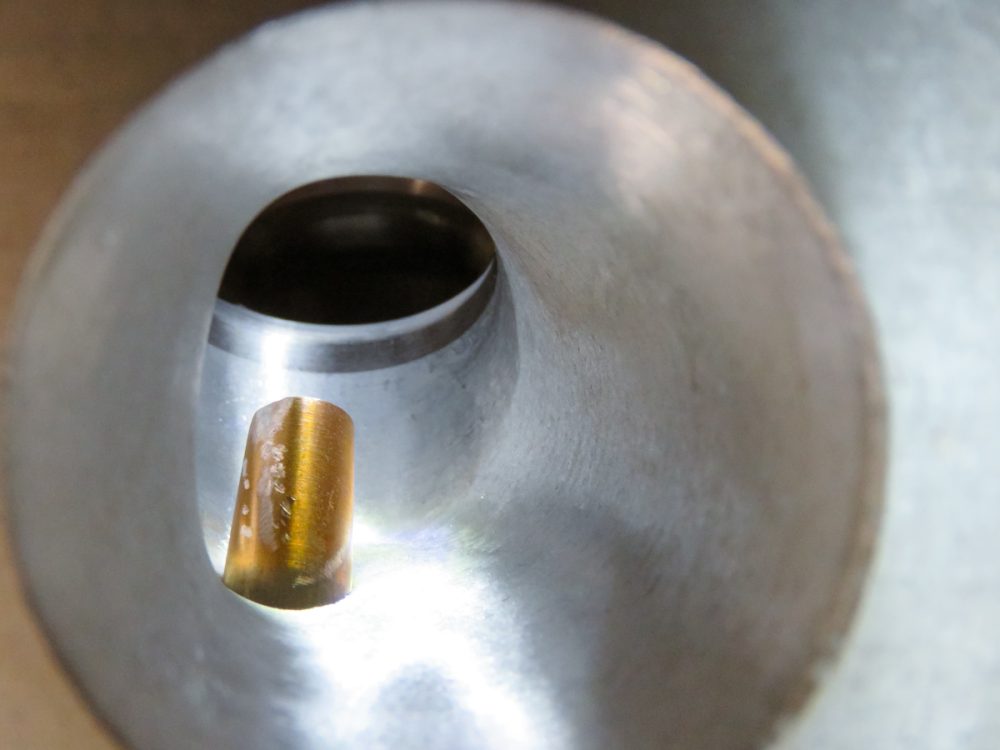

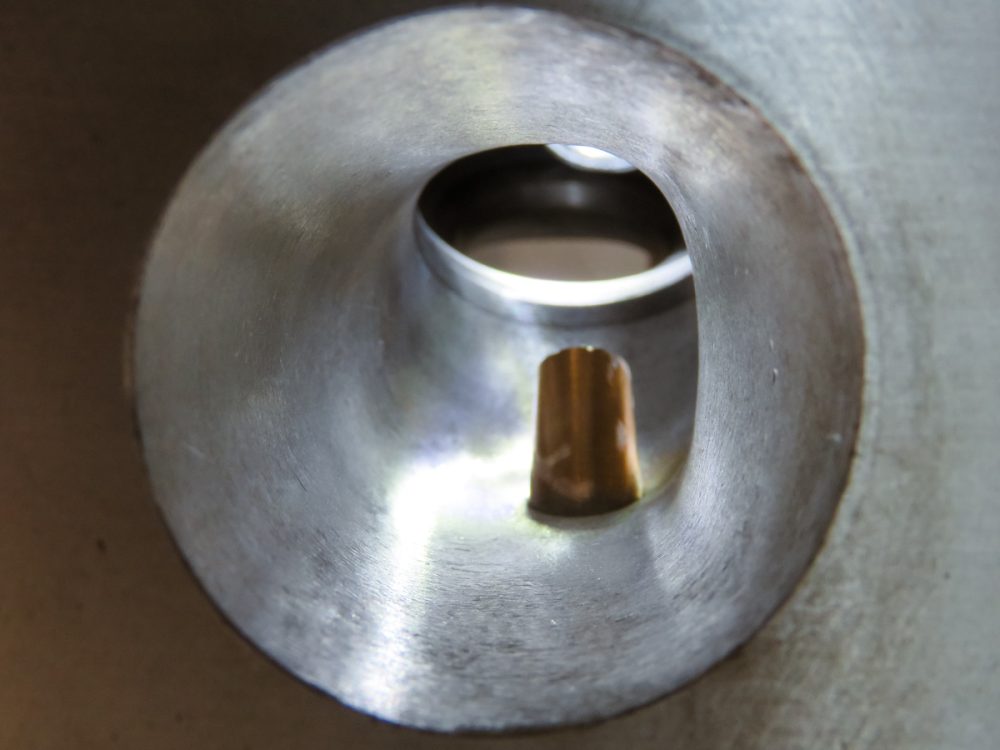

Boring throats of ports Exhuast port work Intake port work

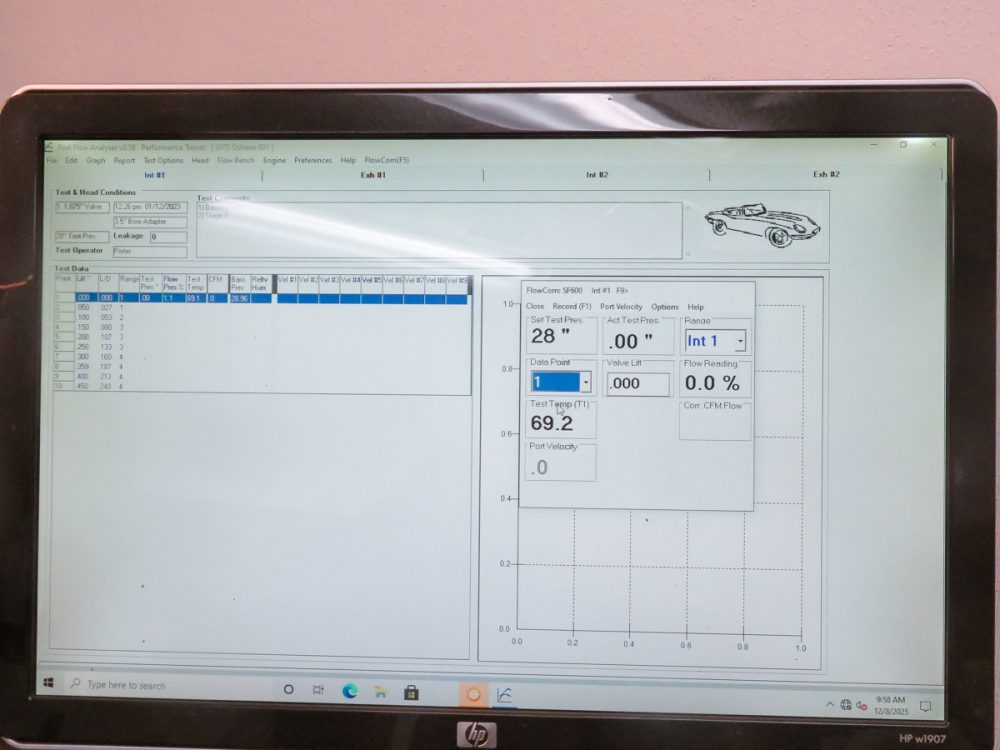

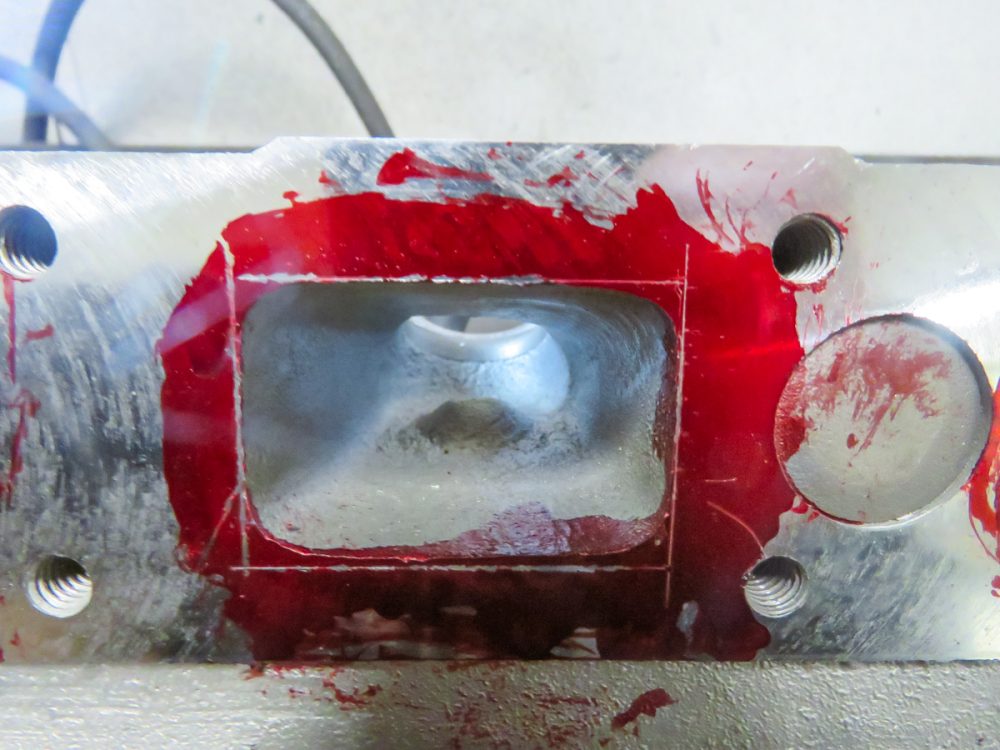

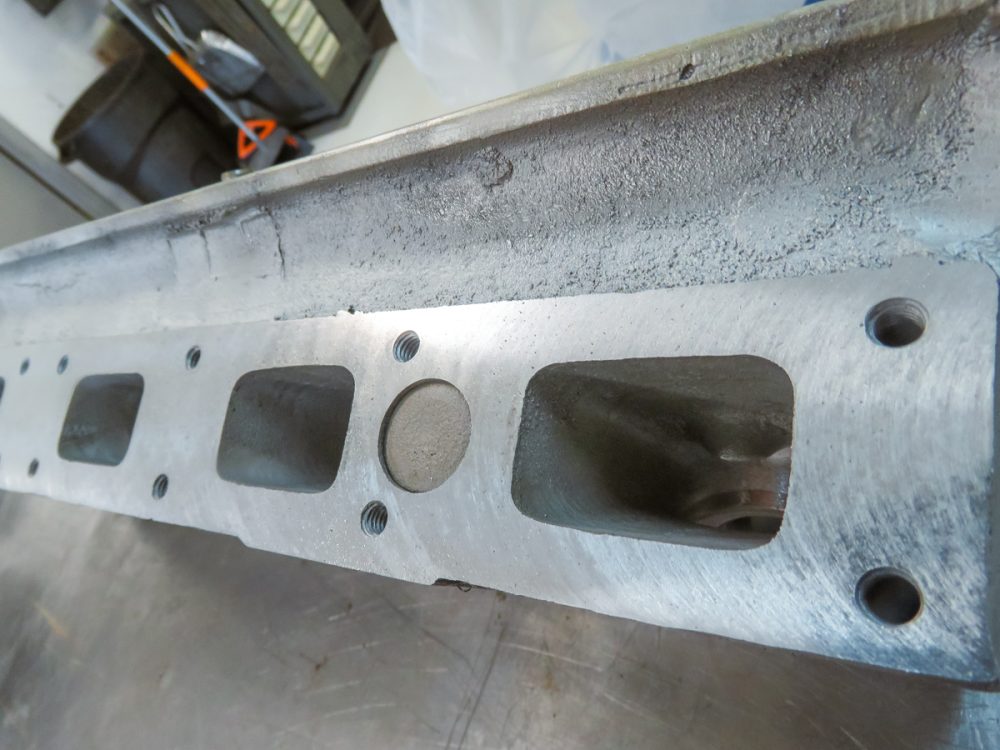

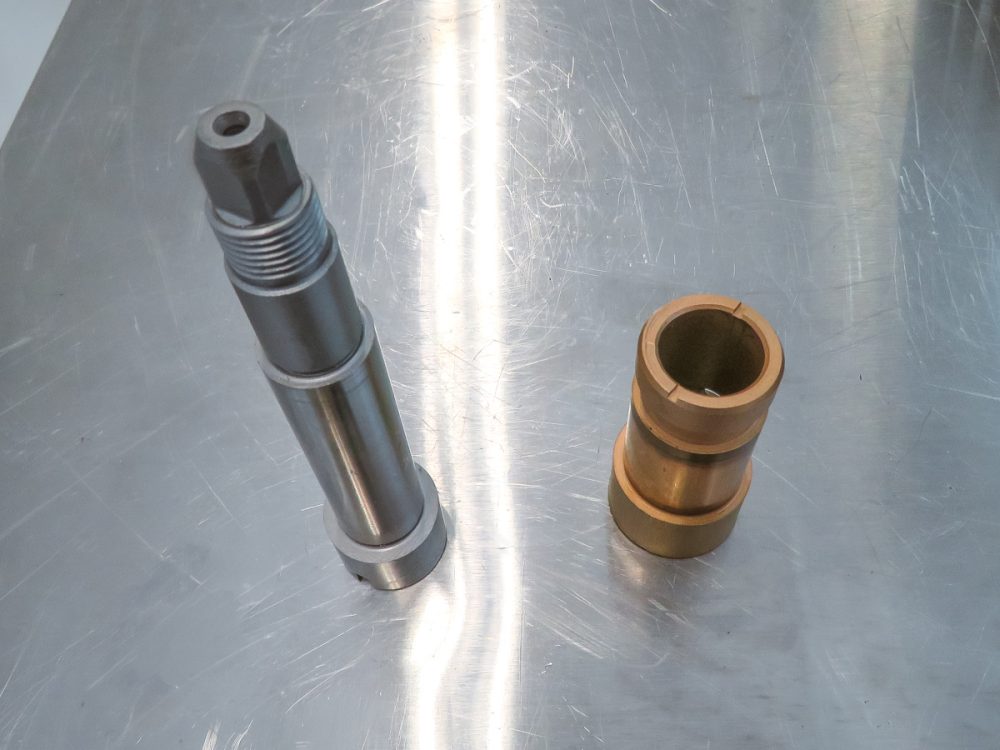

Baseline flow test Hone oil pump bushing Mill exhaust flange Mill Intake flange

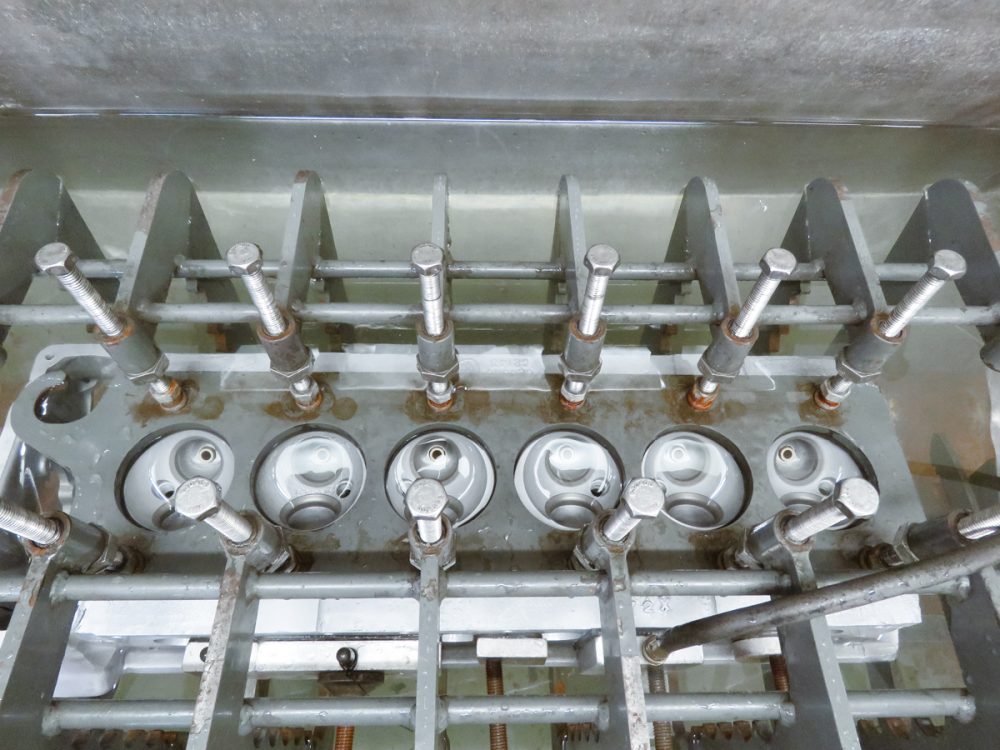

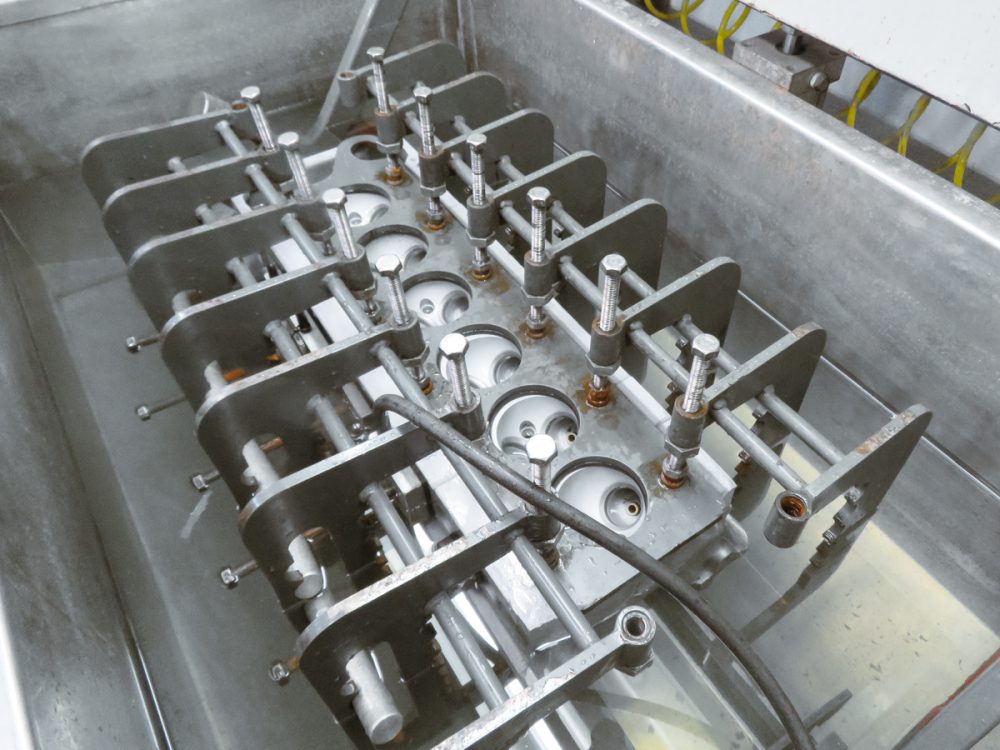

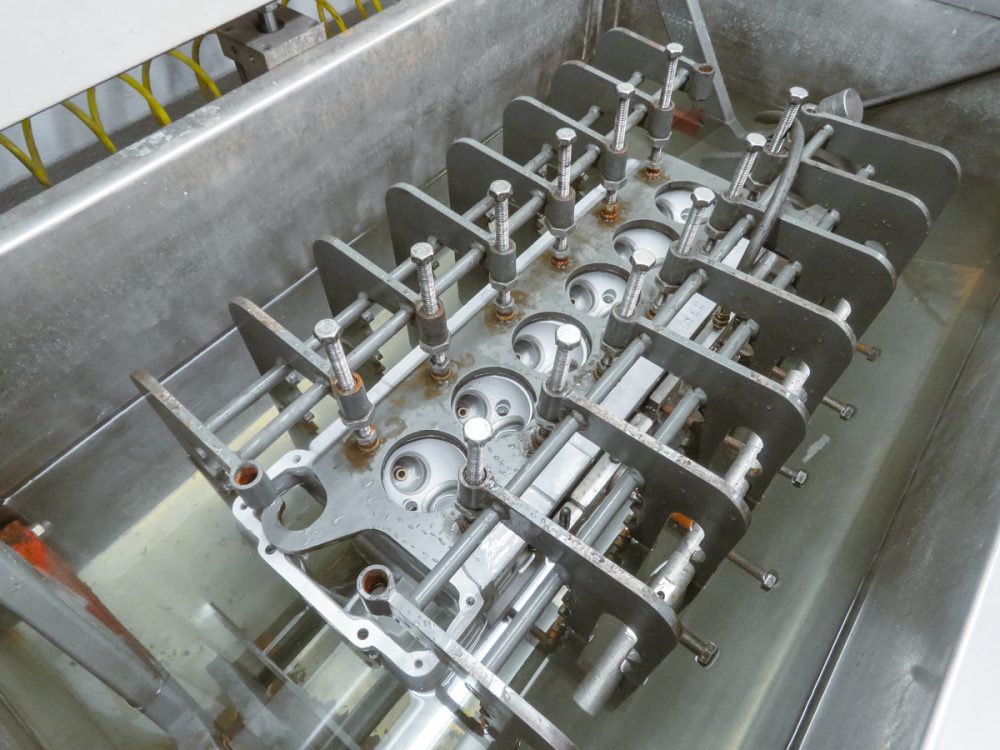

Pressure test head

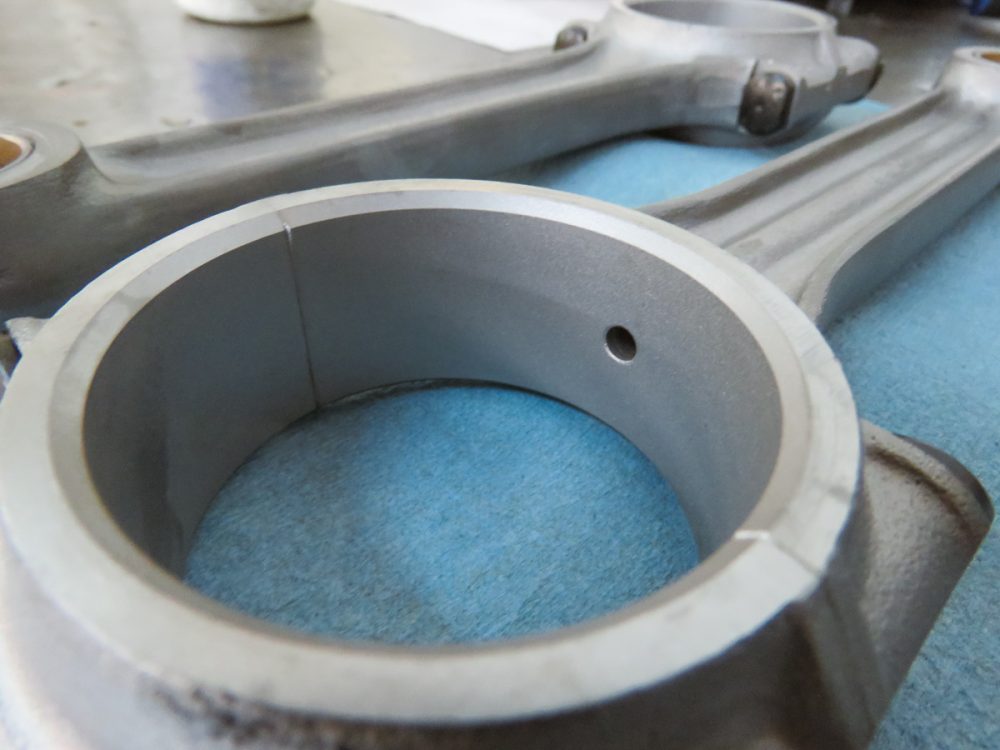

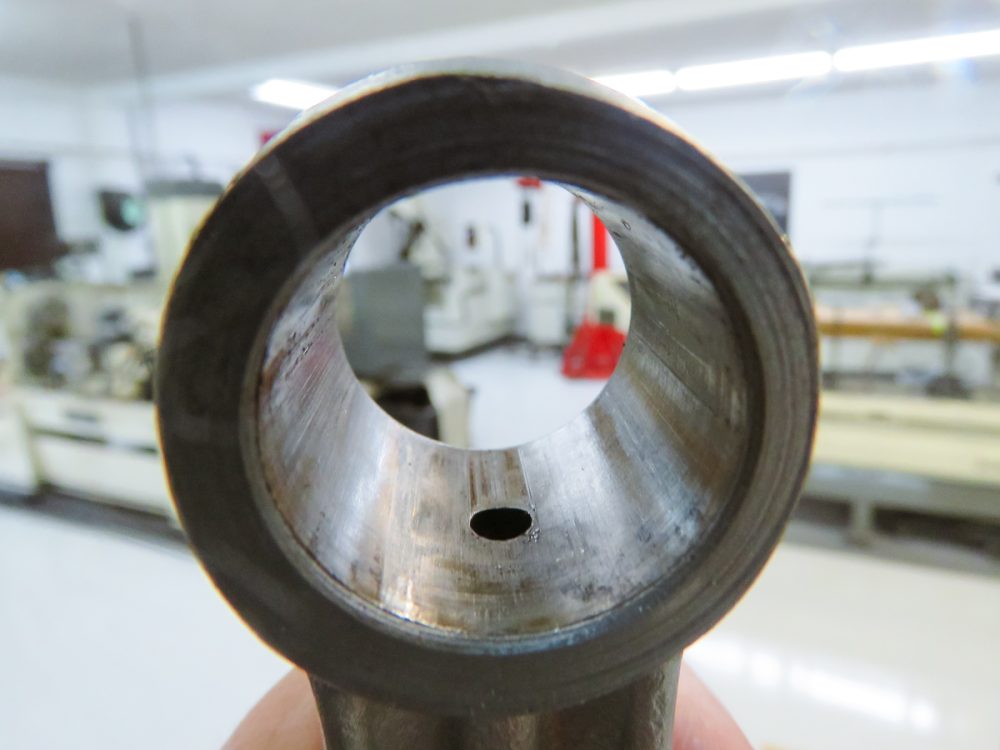

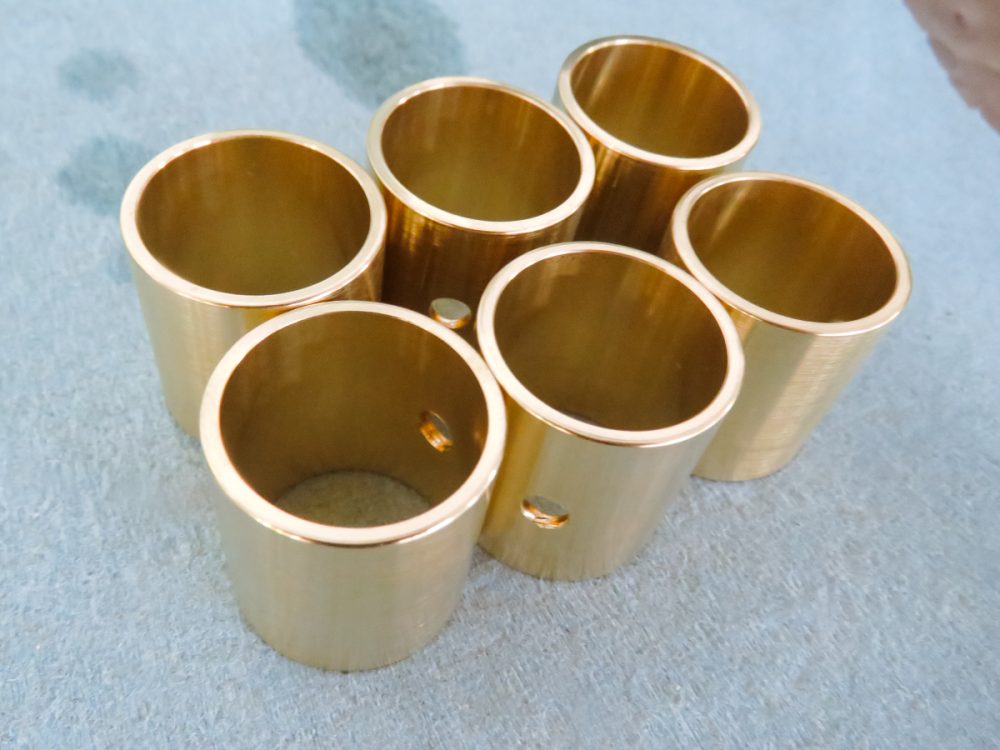

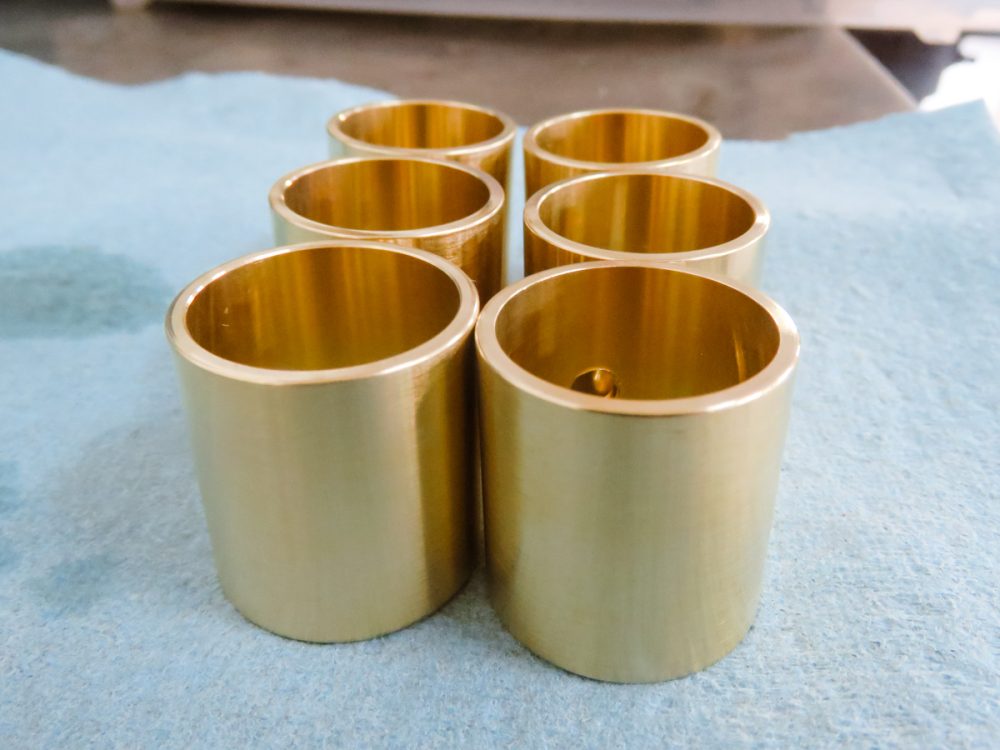

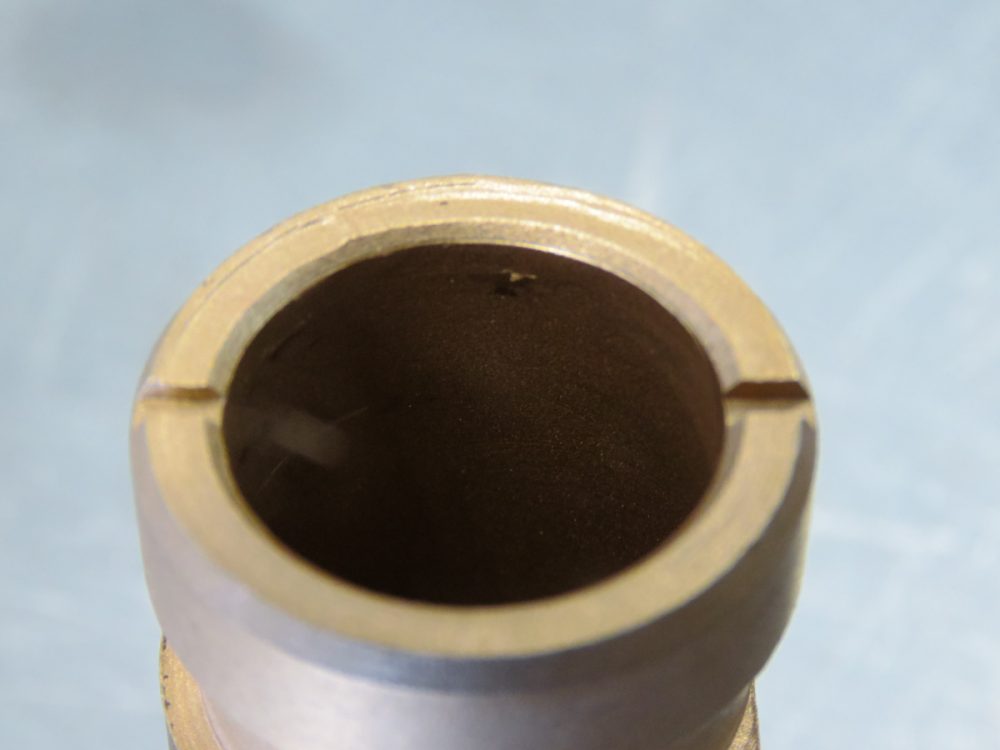

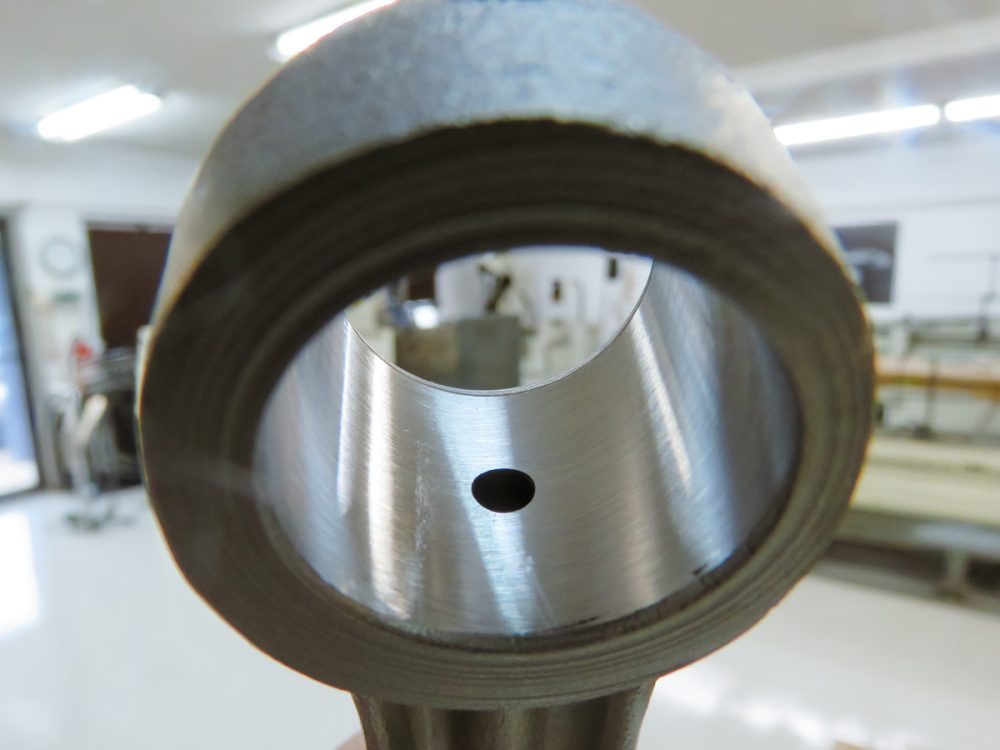

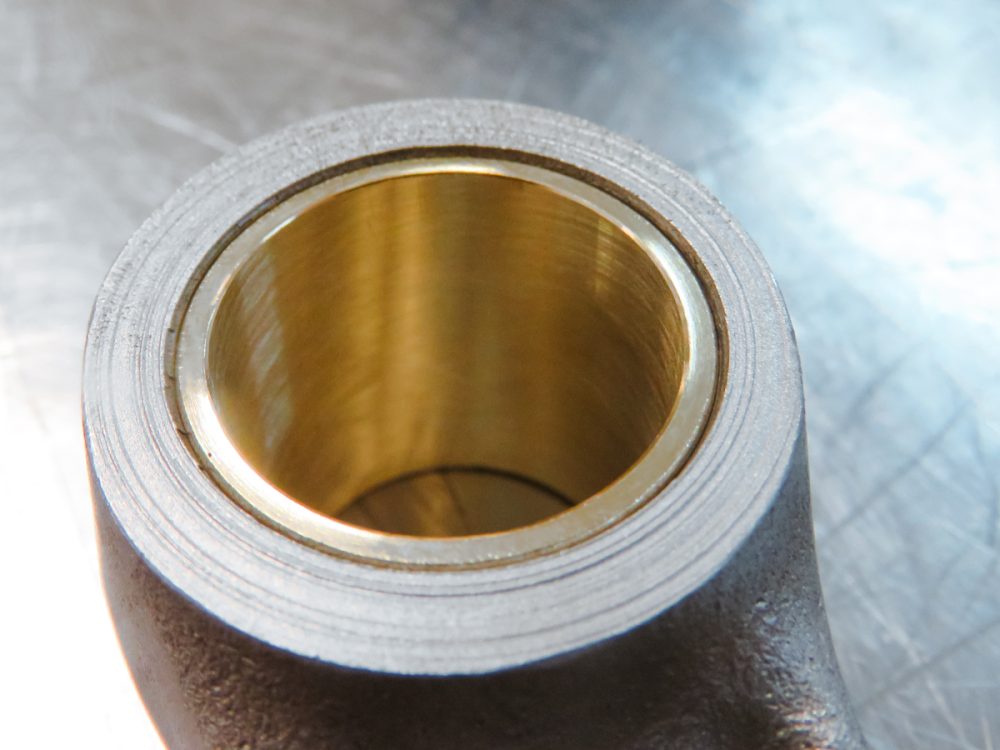

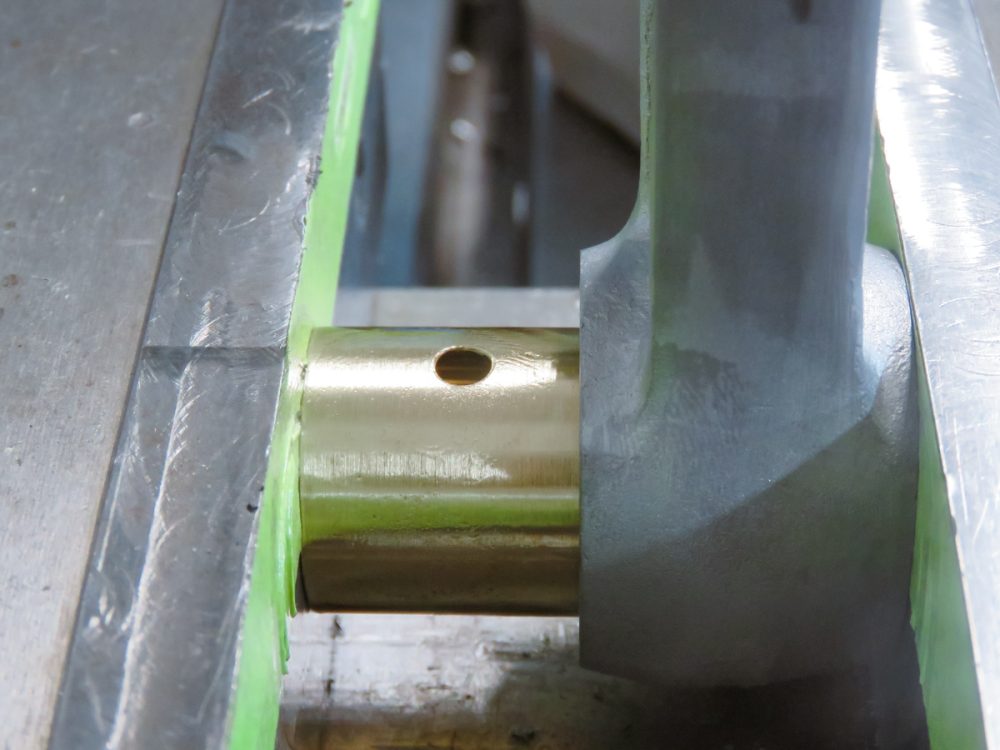

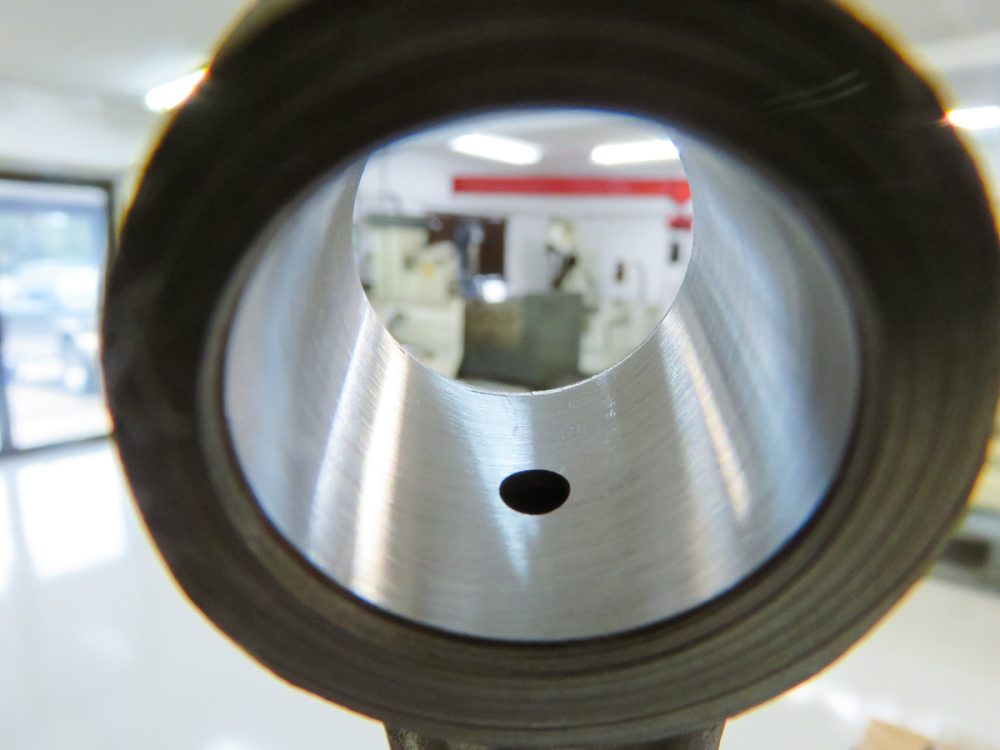

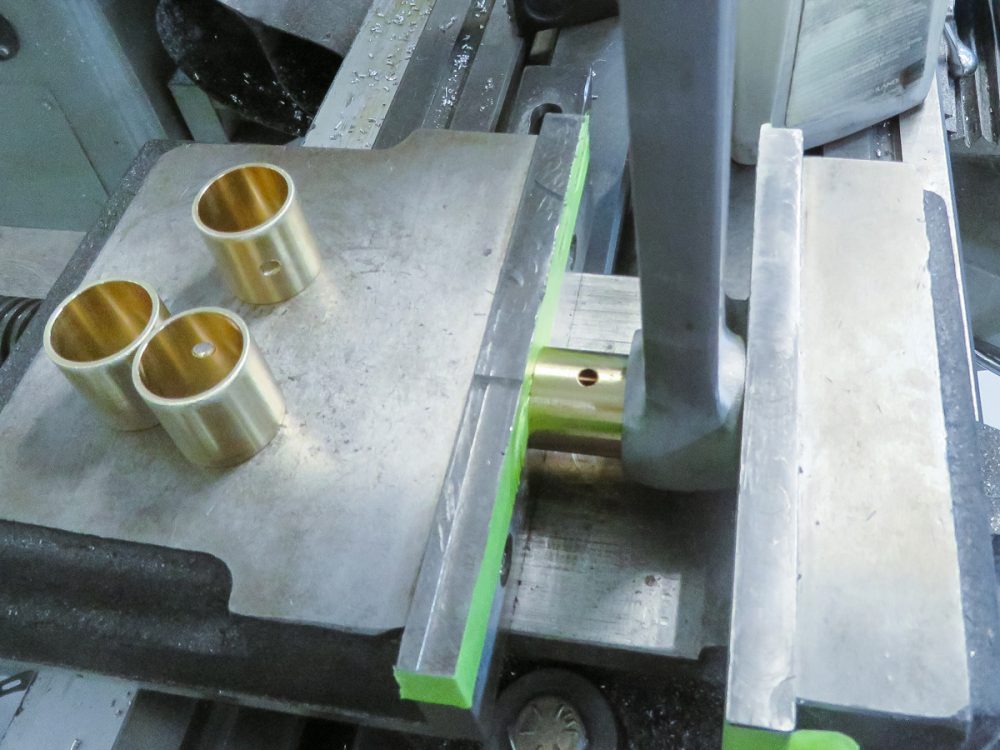

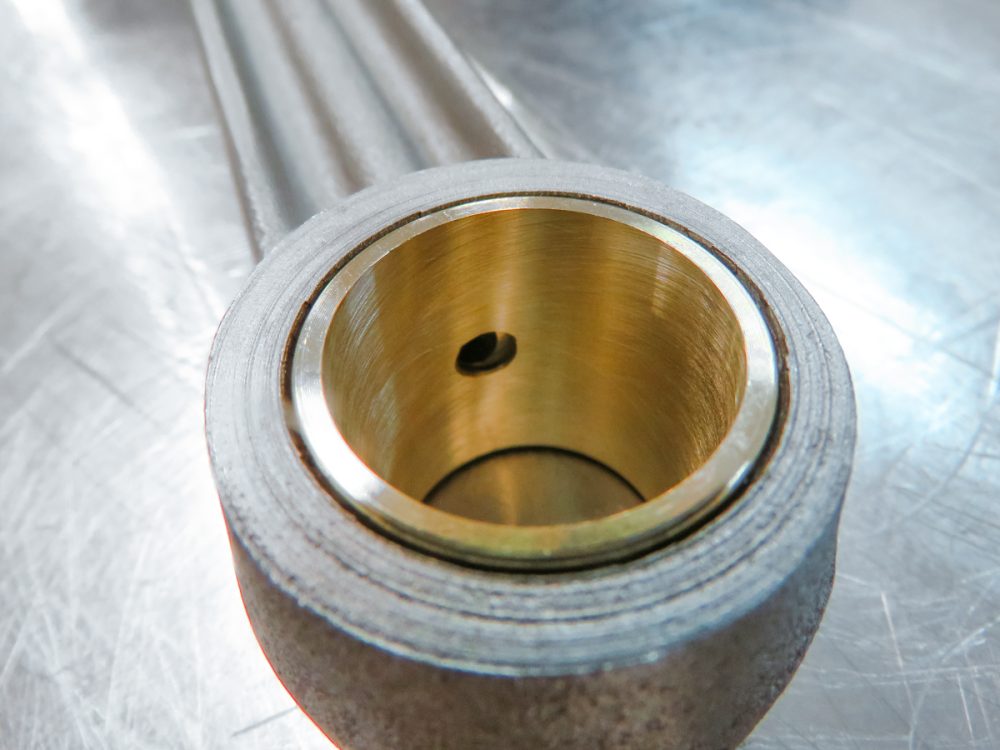

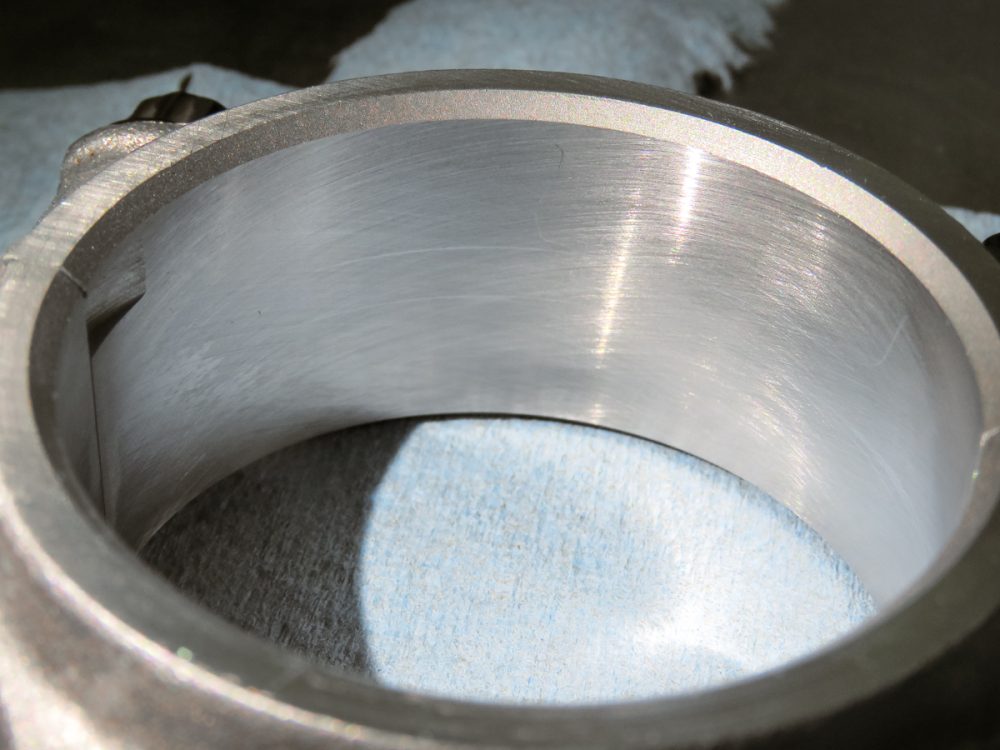

New rod bushings Rods honed Installing bushings New bushings installed

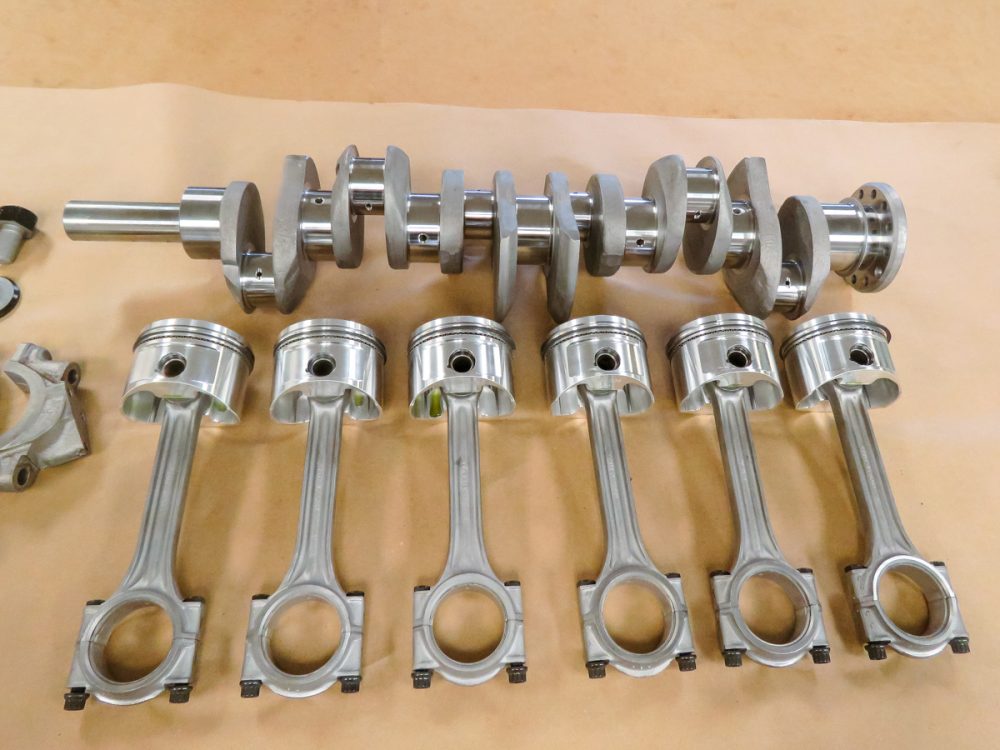

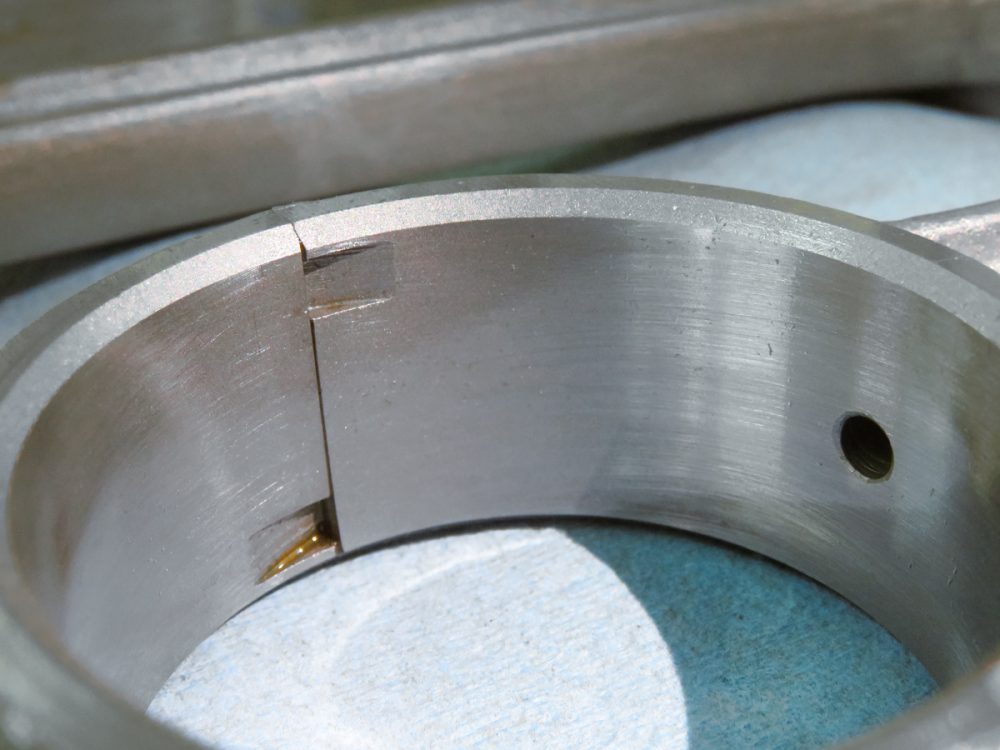

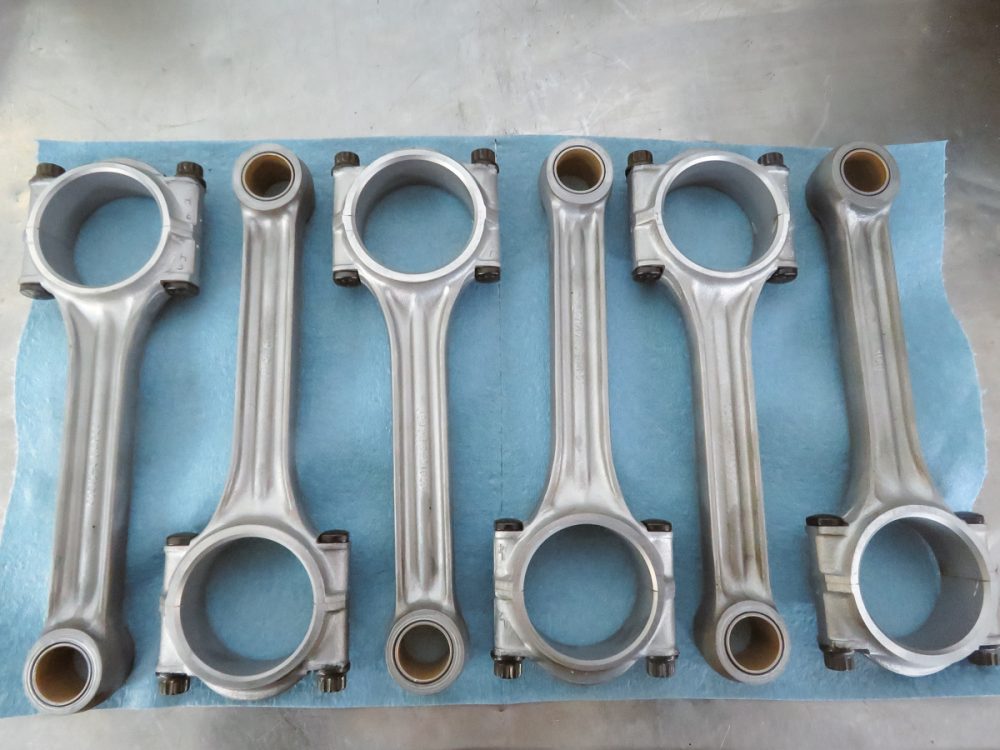

Rods honed

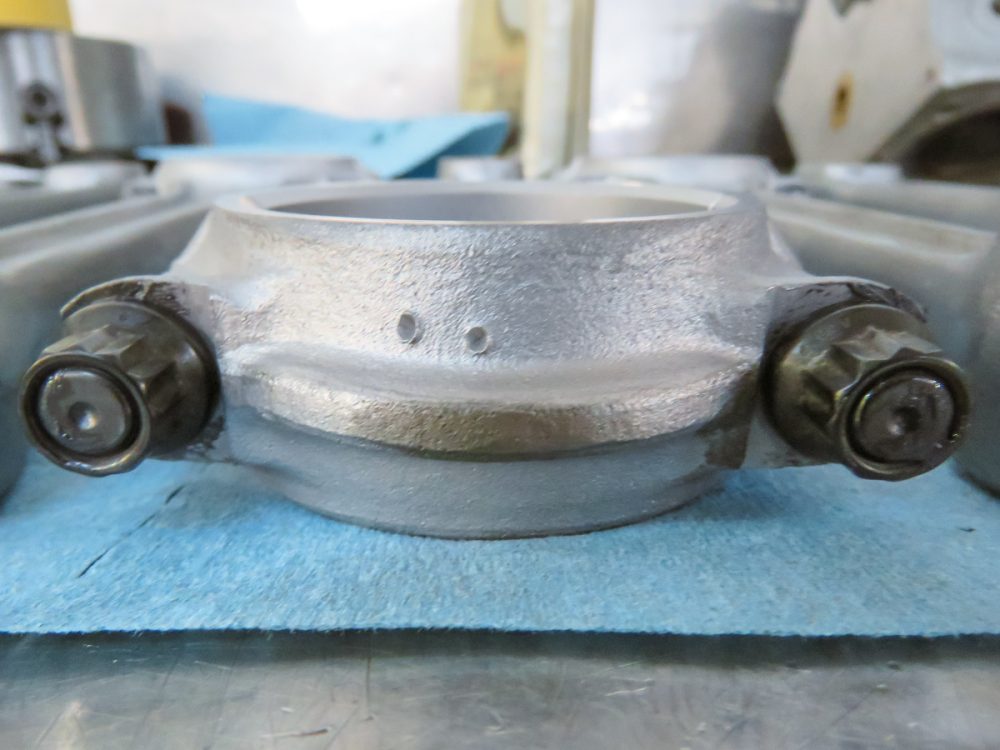

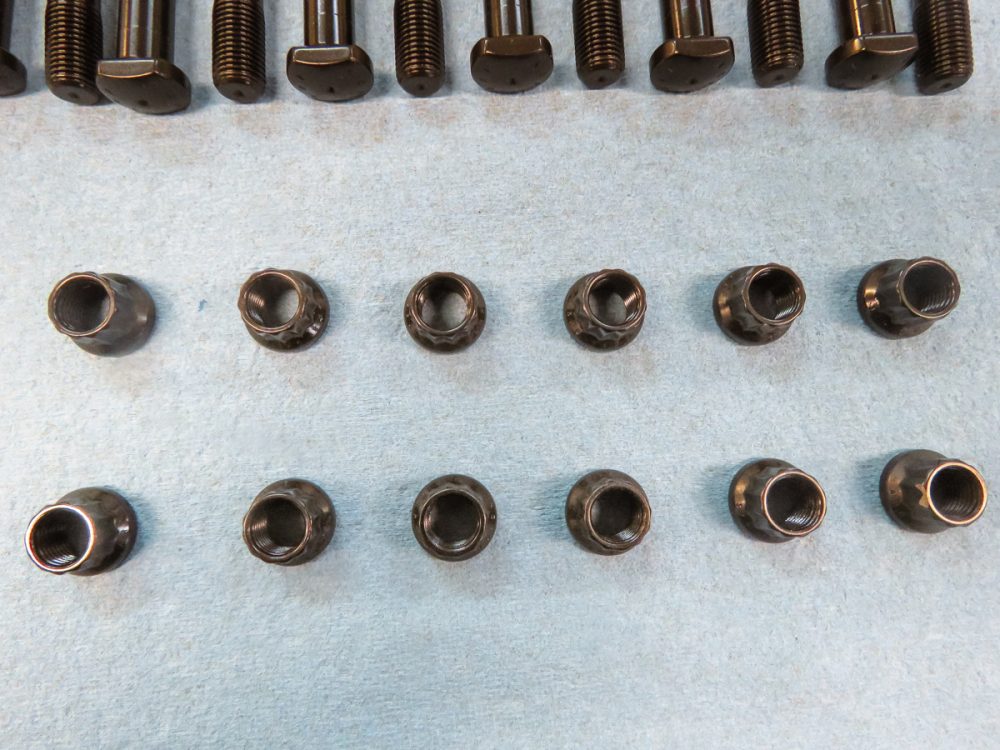

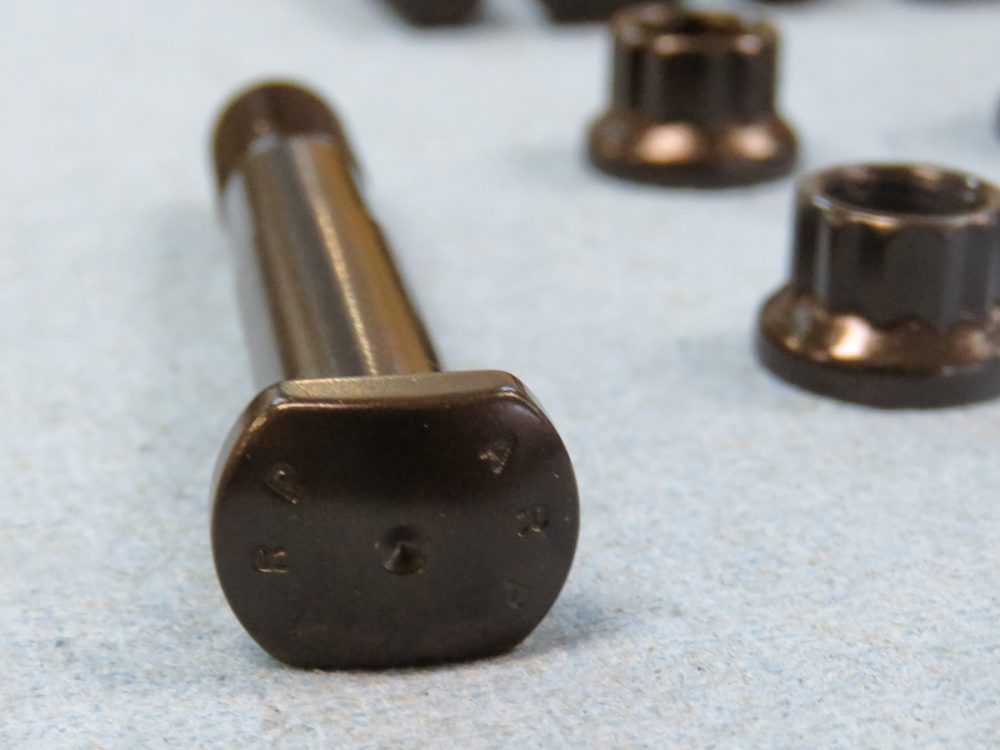

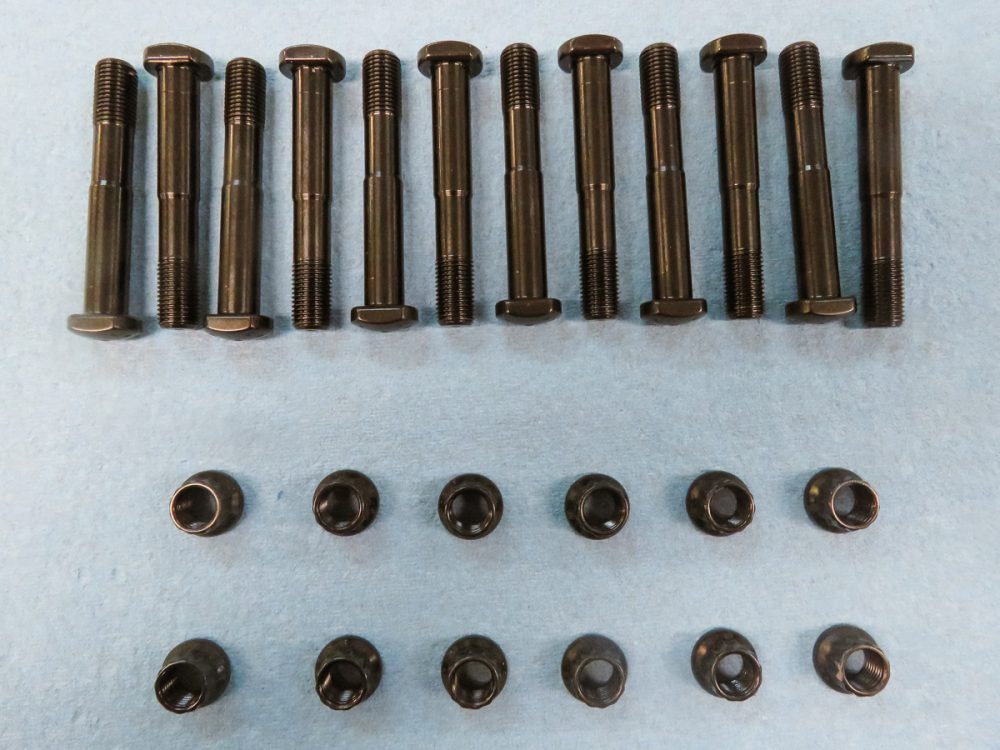

New ARP rod bolts

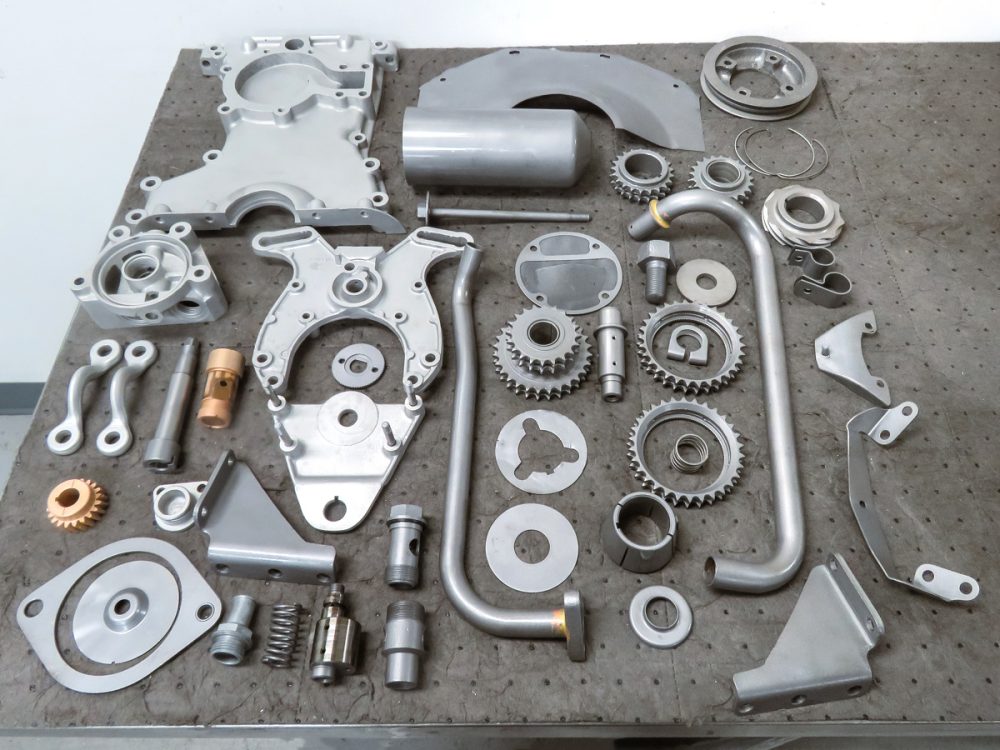

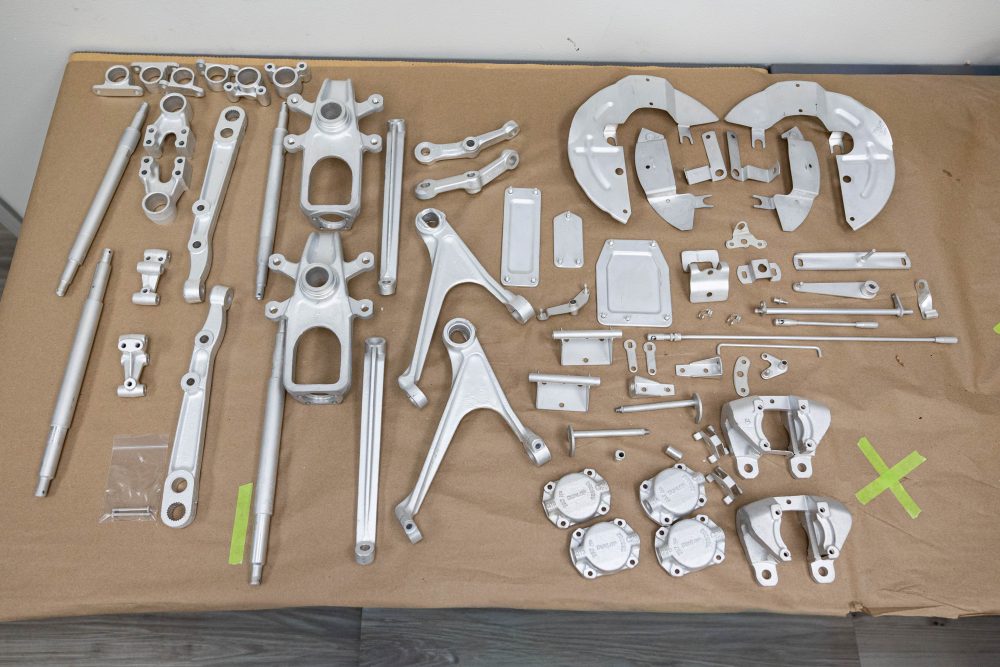

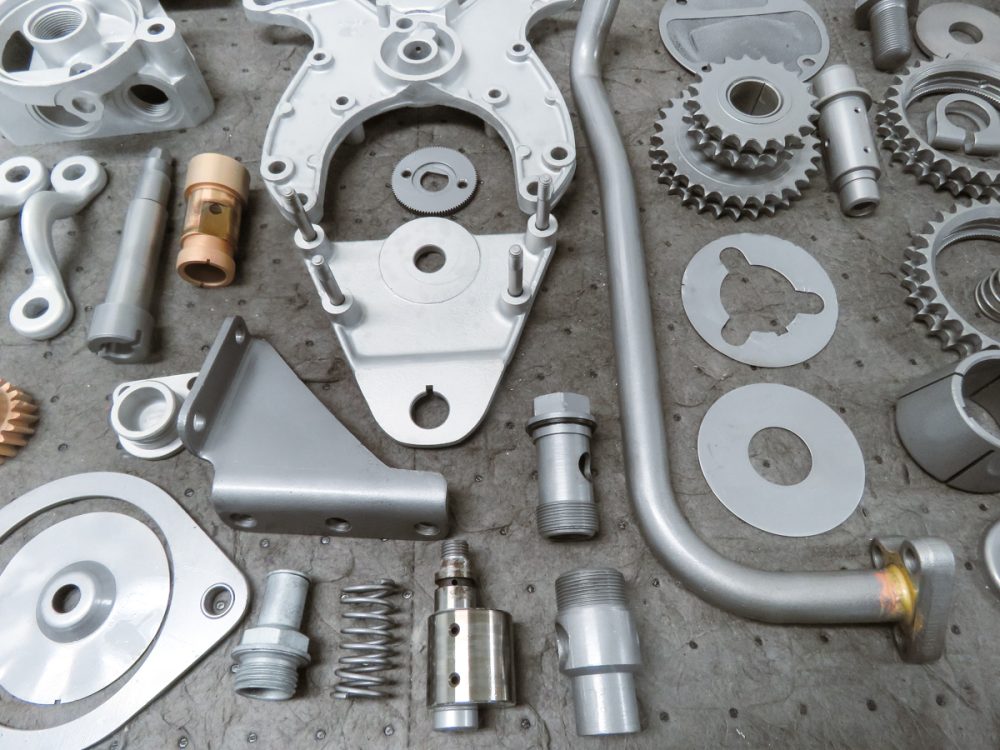

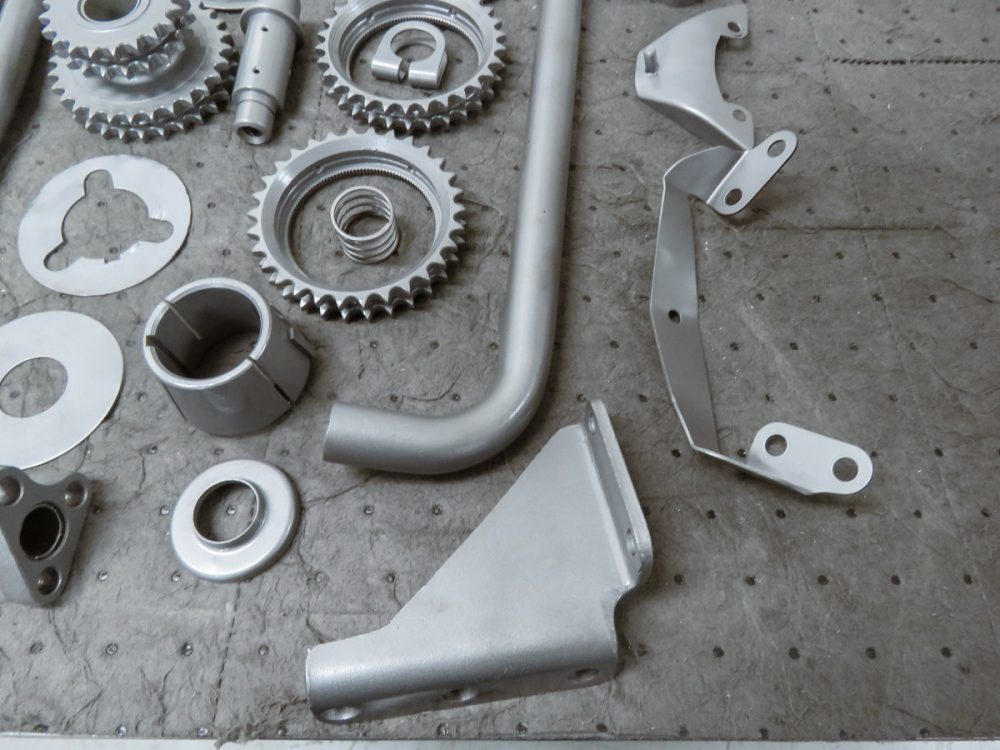

Engine parts media blasted

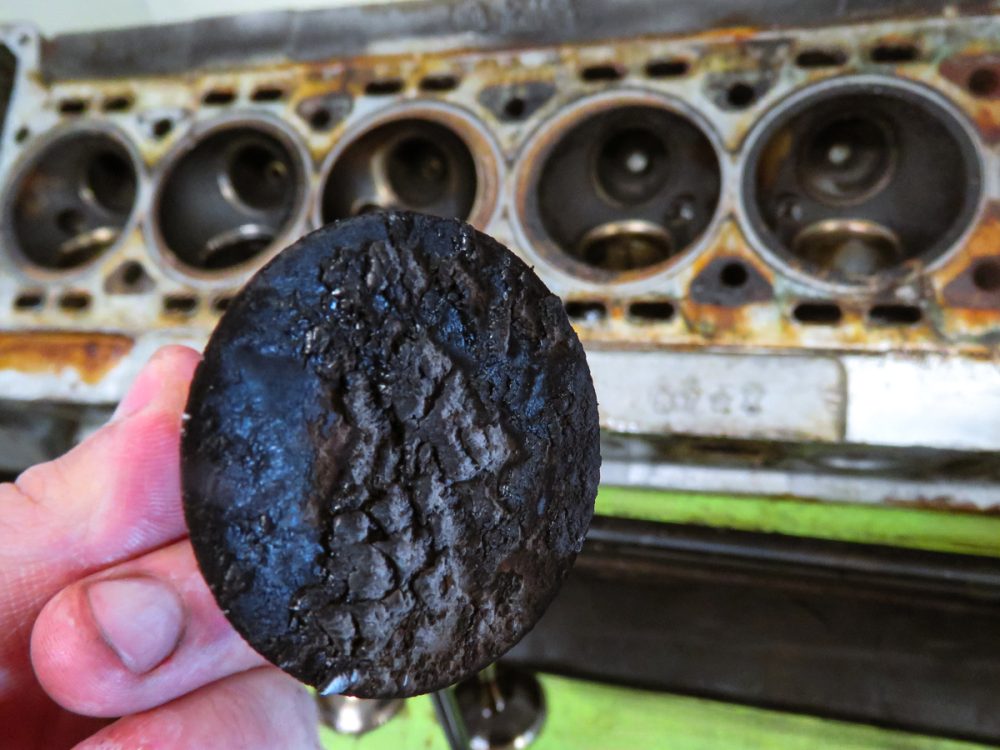

Disassembly

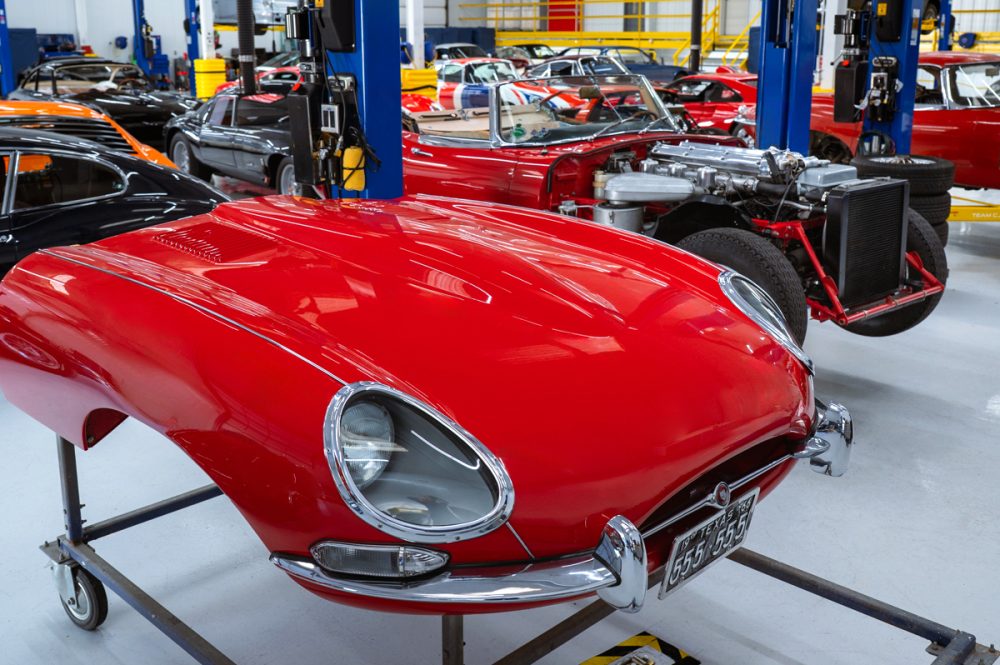

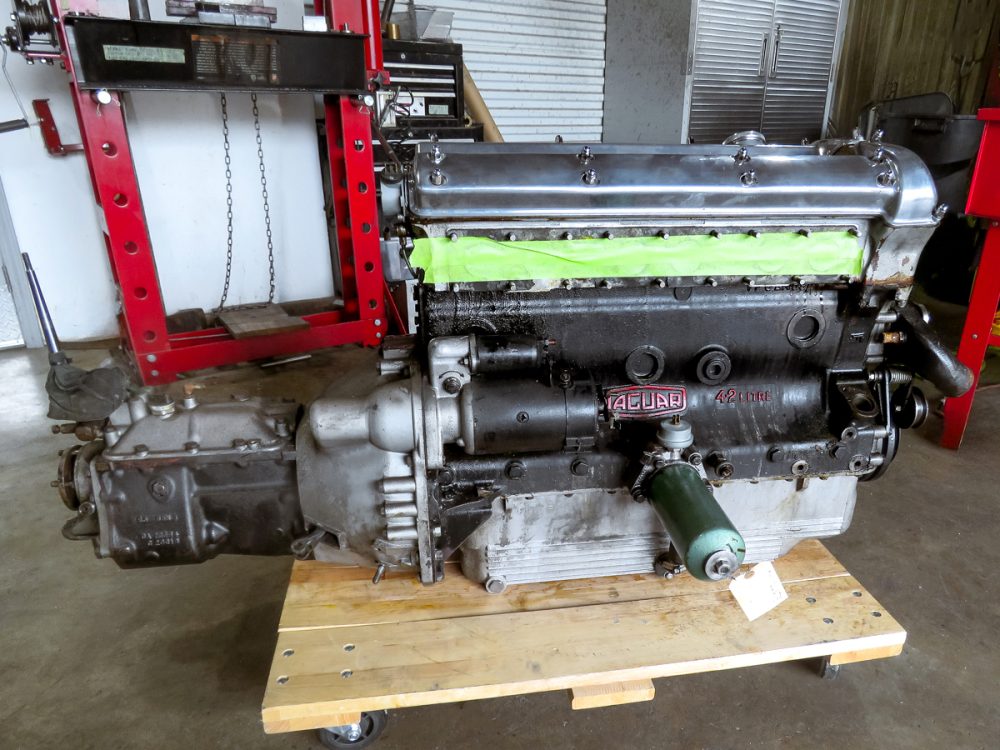

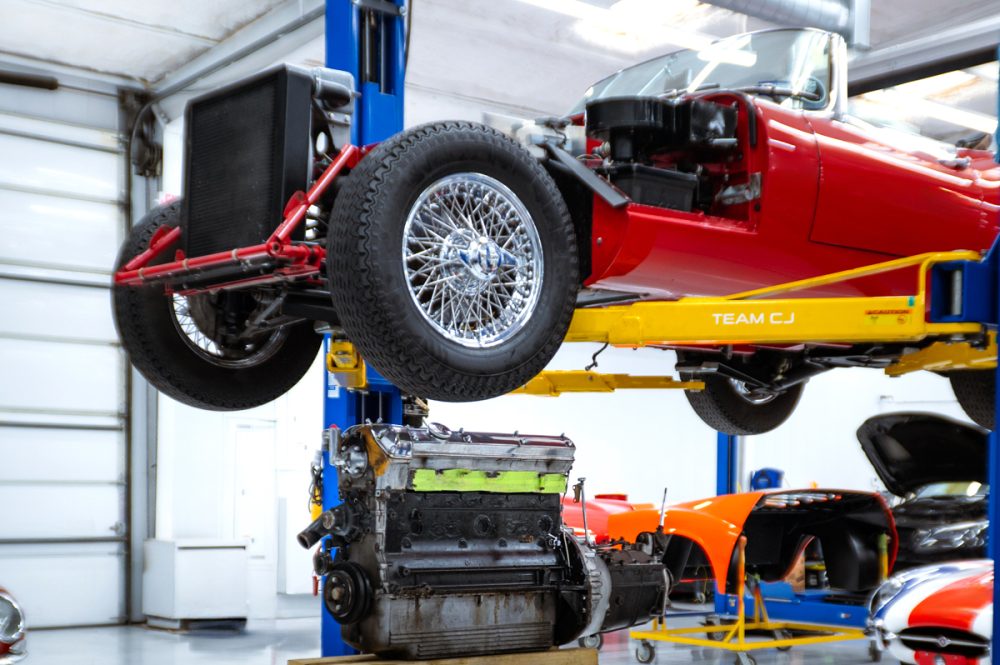

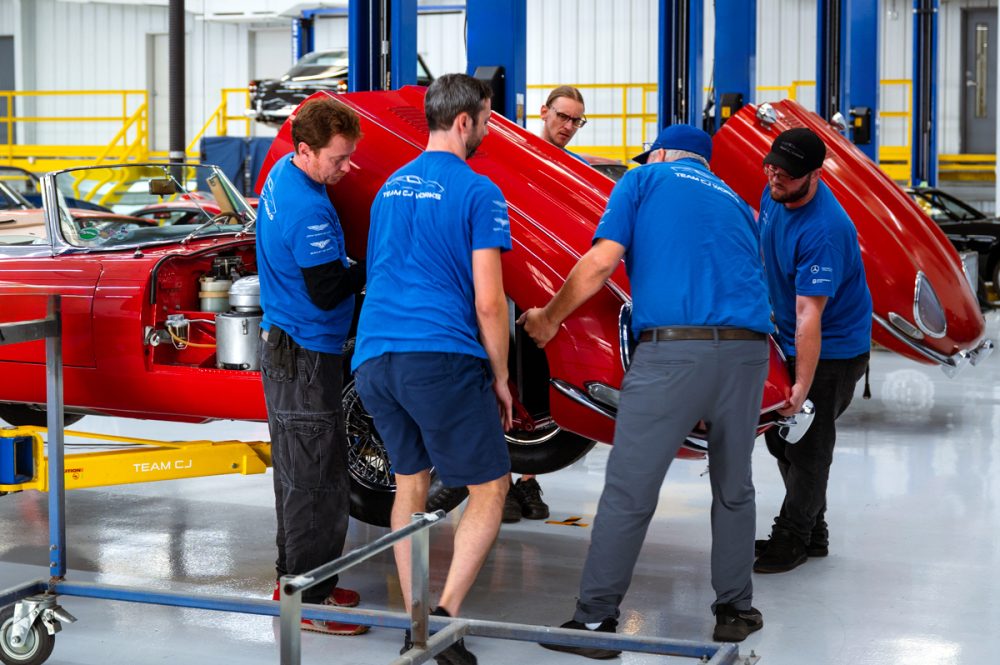

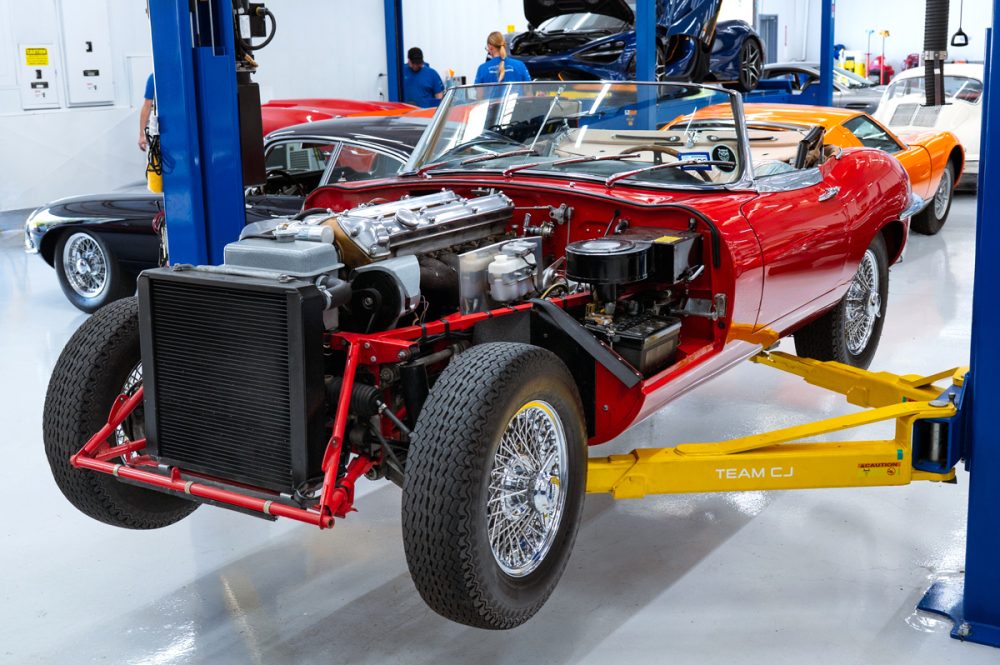

Bonnet removed Engine removed
